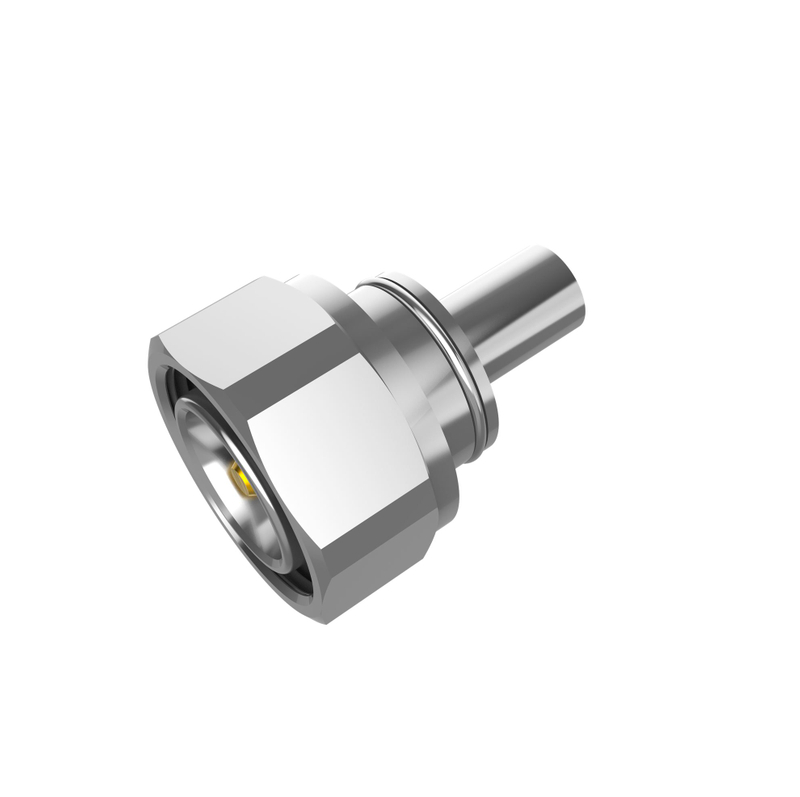

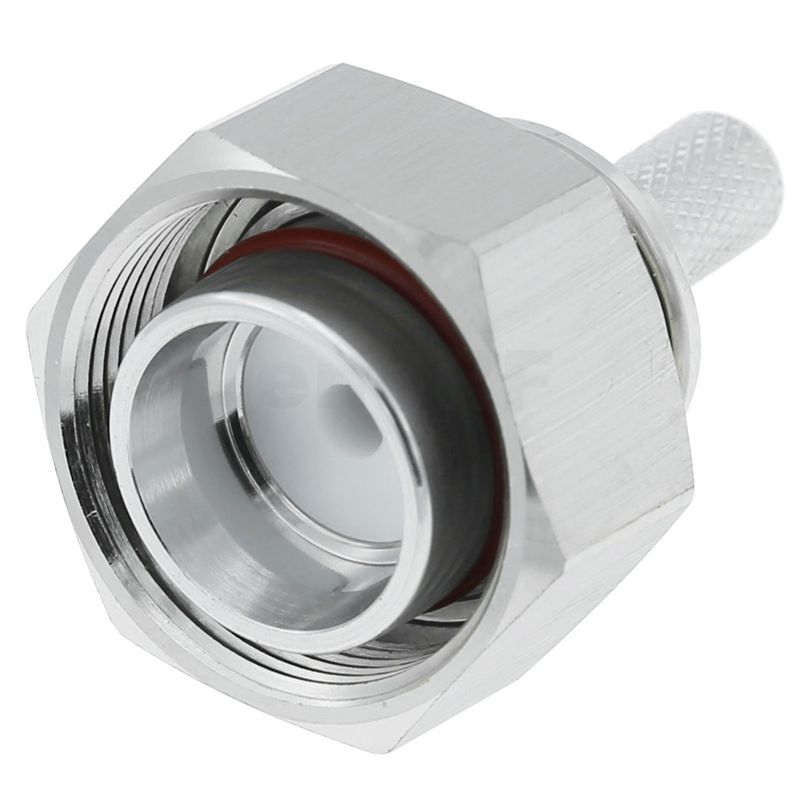

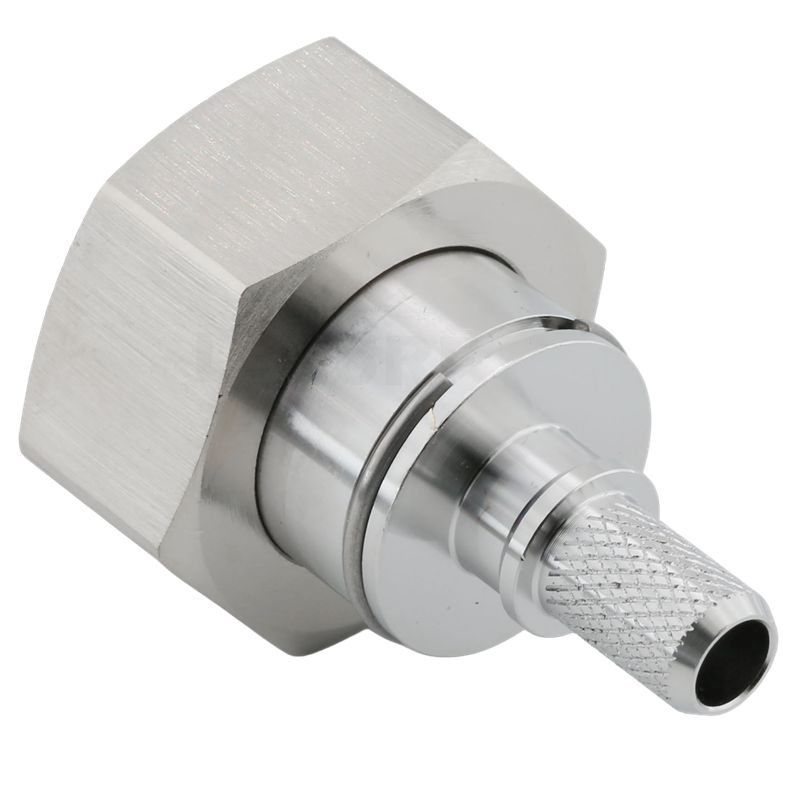

Electrical Characteristics:
Frequency Range:
DC-3GHz
VSWR: ≤1.10
Insertion loss: ≤0.1 dB
PIM:≤-160dBC(2*43 dBm)
Insulation resistance:≥5000MΩ
Proof voltage:2500 V
Conductor resistance-Outer condutor: <0.5mΩ
Conductor resistance-Inner condutor: <1.0 mΩ
Normal impedance: 50Ω±2
Environmental Characteristics:
Temperature range:-40º to +85ºC (-40° to +185ºF)
Weather standard: IEC 60068 40/085/21
Water proofing standard: IP68
Thermal shock: IEC 60068-2-14-Na
Vibration:IEC 60068-2-6-Fc
Shock:IEC 60068-2-27
RoHS compliant: Yes
Mechanical Characteristics:
Nut torque:10-12N.m
Whole pull(nut):500N
Tensile force (cable-connector):500N
Torsion(cable-connector):4N.m
Assembly: Inner and outer conductor installed
Material and plating:
Inner conductor: Spring bronze Ag5μm
Outer conductor: Brass Trimetal 2μm
Nut: Brass Ni5μm
Gasket: Silicone rubber
Insulater: TPX
