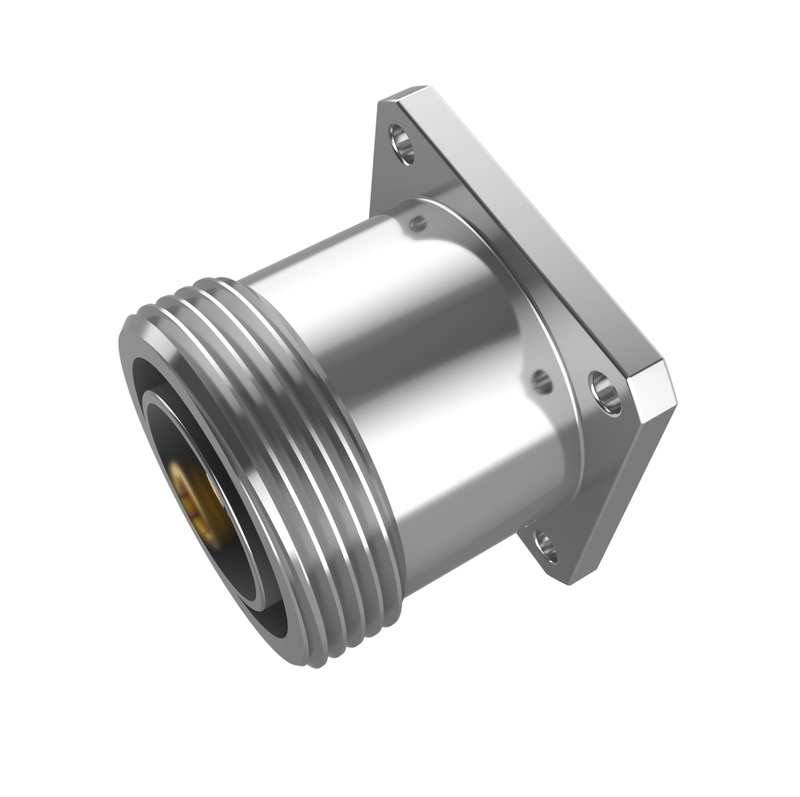

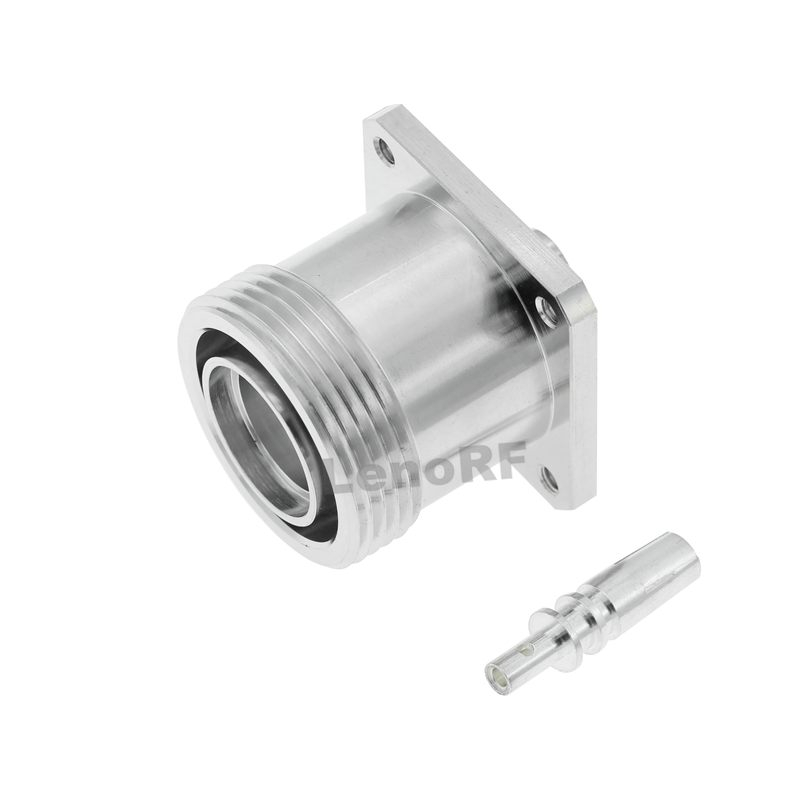

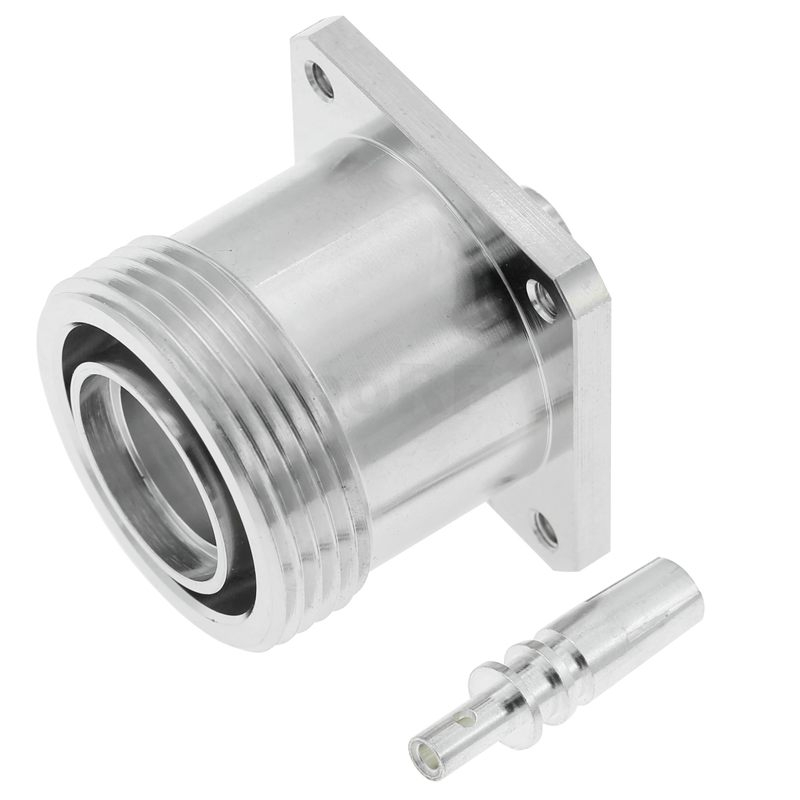

7/16 Connector Jack 4 hole Flange Solder For RG401 Cable

7/16 connectors are mechanically extremely strong screw-lock coaxial connectors. They feature a 50 ohm characteristic impedance and excellent electrical properties, making them ideal for applications up to 7.5 GHz. Common usage include radio transmitters with medium to high power and low PIM transmission of received signals, such as those used in mobile phone base stations.

Model:
20-775
Part No:
90-5061-331-02
Gender:
Female
Orientation:
Straight
Termination Body:
Soldering
Termination Contact:
Soldering
Cable Type:
RG401
Data Sheet:
90-5061-331-02.pdf
3D Model:
90-5061-331-02.stp

Availability:

Quantity:



Inquire Add to Basket

Product Description

Materials&Electroplating
Conduct	Brass/ Silver or Golden Plating
Insulator	PTFE
Body	Brass /Ternary or nickel or silver
Other Parts	Brass/ Nickel Plating
Electric Performance
Impedance	50 OHMS
Frequency Range	0-3GHz
VSWR	≤1.30
Rating Voltage	500V
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -65°C to +125°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
