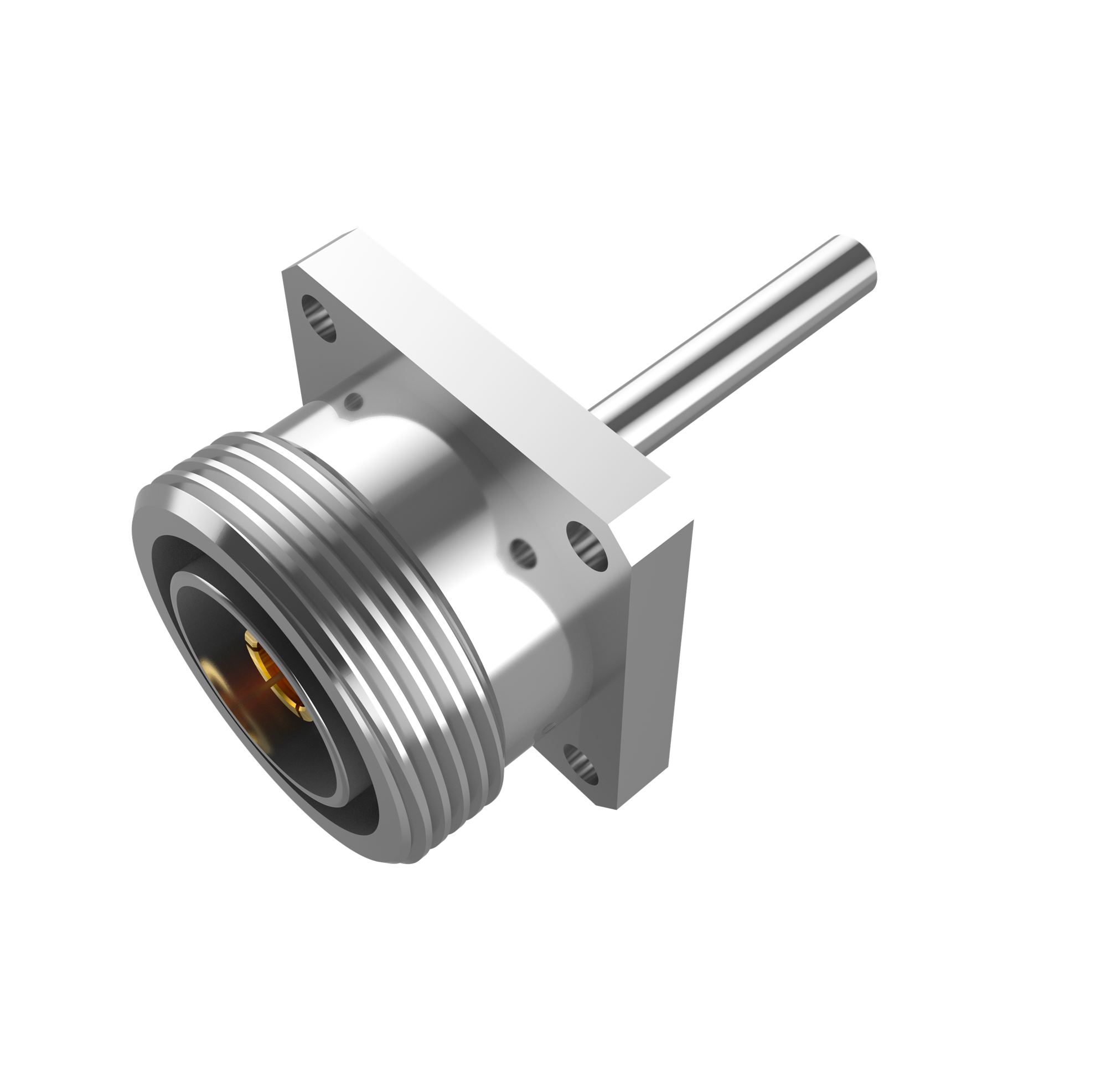

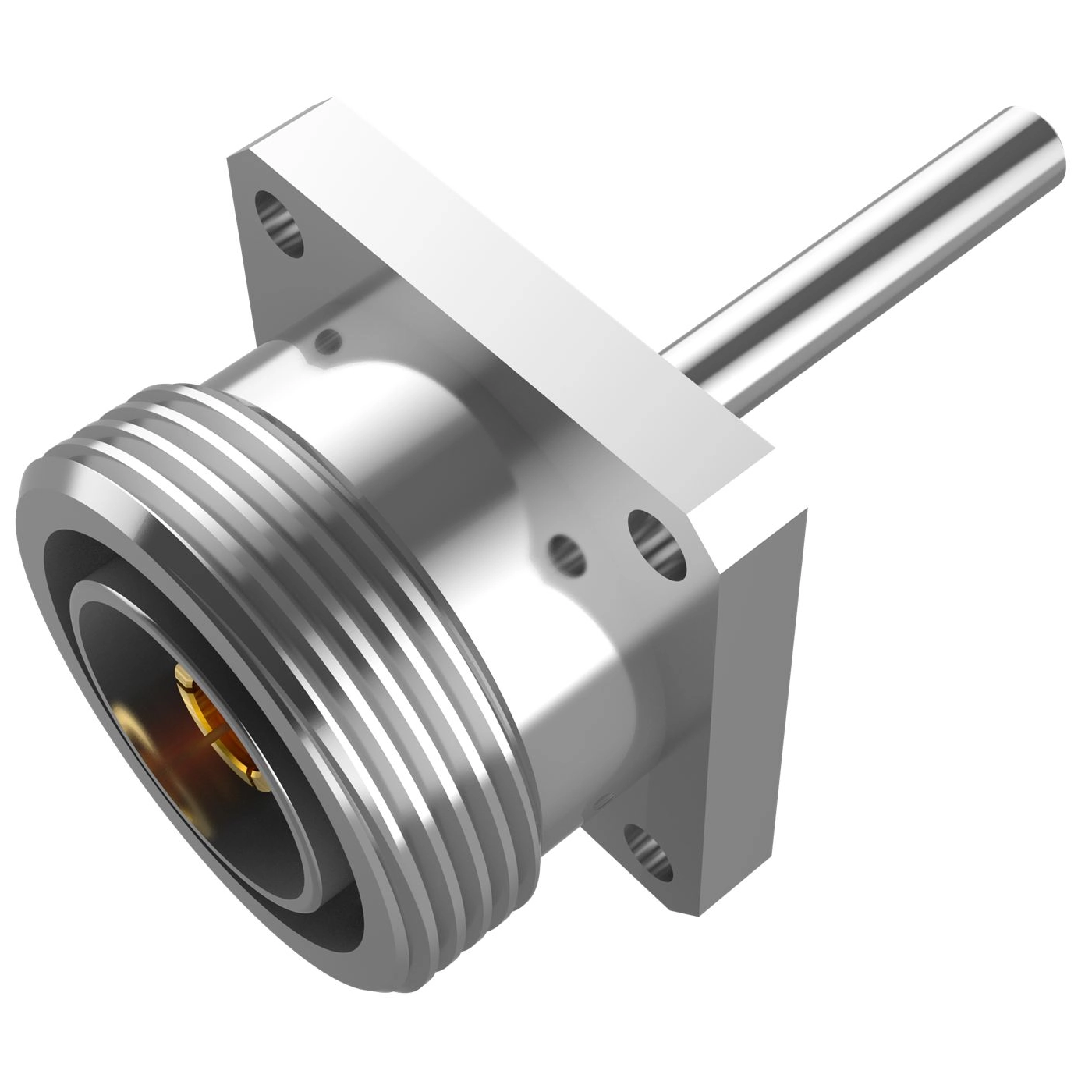

7/16 Connector Jack Flange Straight For Microstrip

7/16 connectors are mechanically strong screw-lock coaxial connectors. They feature a 50 ohm characteristic impedance and are appropriate for applications up to 7.5 GHz with excellent electrical characteristics. Common usage include radio transmitters that broadcast received signals with medium to high strength and low PIM, such as in mobile phone base stations.

Model:
20-350
Part No:
90-5061-045-01
Gender:
Female
Orientation:
Straight
Termination Body:
4 Hole Flange
Termination Contact:
Soldering
Cable Type:
Microstrip
Data Sheet:
90-5061-045-01.pdf
3D Model:
90-5061-045-01.stp

Availability:

Quantity:



Inquire Add to Basket

Product Description

Materials&Electroplating
Conduct	Brass/ Silver or Golden Plating
Insulator	PTFE
Body	Brass /Ternary or nickel or silver
Other Parts	Brass/ Nickel Plating
Electric Performance
Impedance	50 OHMS
Frequency Range	0-3GHz
VSWR	≤1.30
Rating Voltage	500V
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -65°C to +125°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
