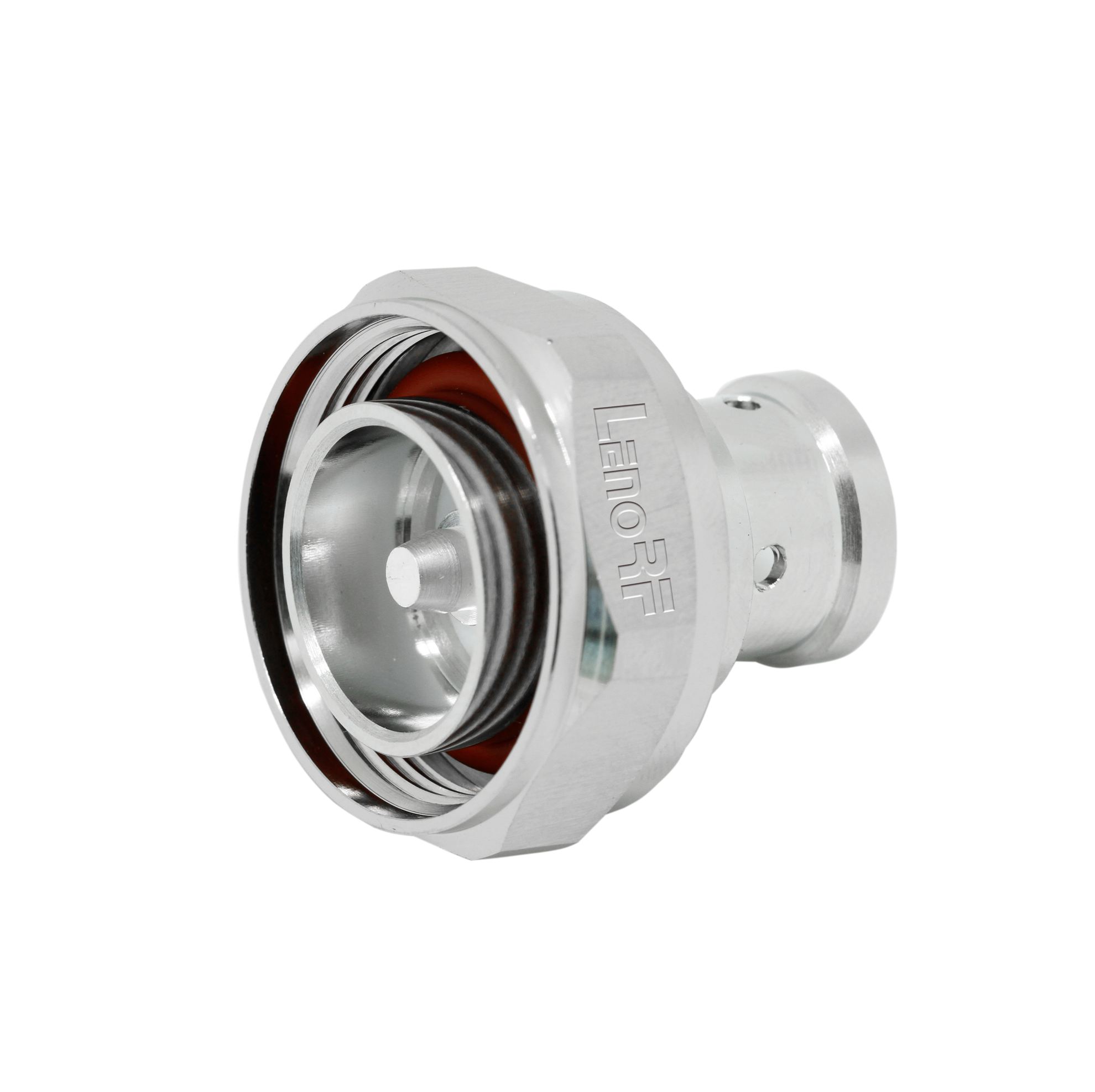

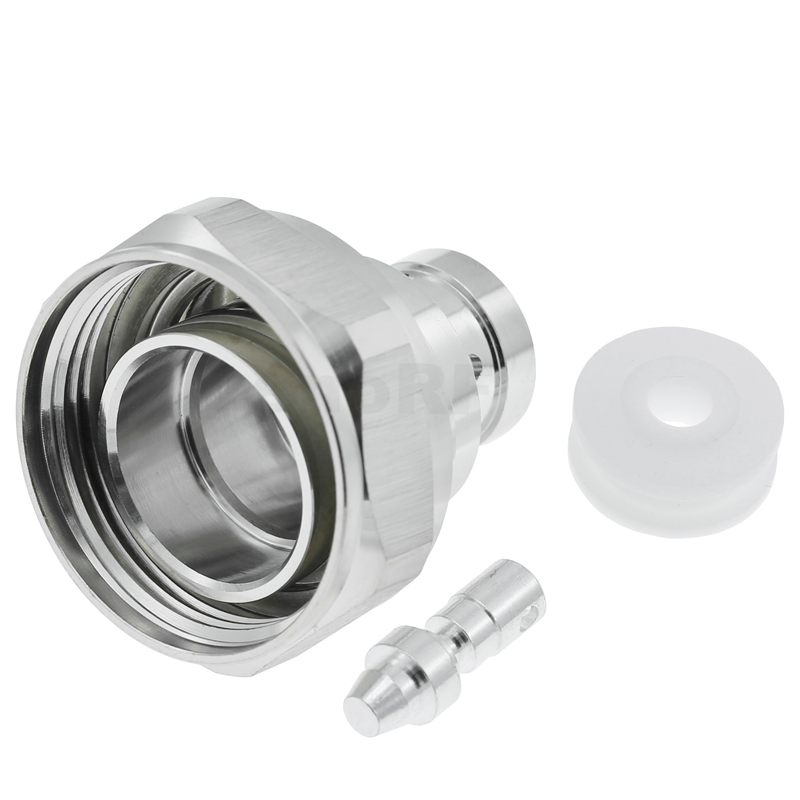

7/16 Connector Plug Solder Straight For 1/2" Flexible Cable

7/16 connectors are mechanically strong screw-lock coaxial connections. They feature a 50 ohm characteristic impedance and are appropriate for applications up to 7.5 GHz with exceptional electrical properties. Common usage include radio transmitters that broadcast received signals with medium to high strength and low PIM, such as those used in mobile phone base stations.

  • 20-378

  • 90-5161-345-01

  • Male

  • Straight

  • Soldering

  • Soldering

  • 1/2" Flexible cable

  • 90-5161-345-01.pdf

  • 90-5161-345-01.stp

Availability:
Quantity:
Inquire Add to Basket


Materials&Electroplating

Conduct

Brass/ Silver or Golden Plating

Insulator

PTFE

Body

Brass /Ternary or nickel or silver

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

50 OHMS

Frequency Range

0-3GHz

VSWR

≤1.30

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -65°C to +125°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B

Barometric Pressure (Altitude)

MIL-STD-202, Method 105, Condition C, 70k Ft.
