Home > DIN 7/16 RF Connector > DIN 7/16 Male Straight Crimp For LMR600 - RF Connector

DIN 7/16 Male Straight Crimp For LMR600 - RF Connector

  • DIN 7/16 male clamp for 7/8" flex RF Connector
  • DIN 7/16 male clamp for 3/8" flex RF Connector
  • DIN 7/16 female RF Connector -Flange type
  • DIN 7/16 male for 7/8 RF Connector
  • DIN 7/16 Female Flange microstrip RF Connector -Flange type
  • DIN MALE 7/16 FOR RG58 RF Connector
  • DIN MALE 7/16 FOR 3/8" Super flexible cable RF Connector
  • DIN MALE 7/16 FOR 1/2" Super flexible cable RF Connector
  • DIN MALE 7/16 FOR 1/4" Super flexible cable RF Connector
  • DIN MALE 7/16 FOR 3/8" Super flexible cable RF Connector
  • DIN MALE 7/16 FOR 1 5/8" Super flexible cable RF Connector
  • DIN MALE 7/16 FOR 1 1/4" Super flexible cable RF Connector
  • DIN 7/16 MALE RIGHT ANGLE FOR RG213 RF Connector
  • DIN 7/16 MALE RIGHT ANGLE FOR 1/2" SUPER FLEXIBLE CABLE RF Connector
  • DIN 7/16 FEMALE  FOR RG142 RF Connector
  • DIN 7/16 FEMALE  FOR 1/2" SUPER FLEXIBLE CABLE RF Connector
  • DIN 7/16 BULKHEAD PANEL MOUNT FEMALE  FOR  RG58 RF Connector
  • DIN 7/16  FLANGE  FEMALE  FOR  3/8" SUPER FLEXIBLE CABLE RF Connector
  • DIN 7/16  FEMALE  FOR  1 5/8" SUPER FLEXIBLE CABLE RF Connector
  • DIN 7/16  FEMALE  MICROSTRIP RF Connector
  • DIN 7/16  FEMALE  MICROSTRIP FLANGE 46MM RF Connector
  • DIN 7/16  MALE  MICRO STRIP RF Connector
  • DIN 7/16  MALE  MICRO STRIP RF Connector
  • DIN 7/16  MALE  FOR RG402 SEMI-RIGID CABLE  RF Connector
  • DIN 7/16  FEMALE  FOR RG402 SEMI-RIGID CABLE  RF Connector
  • DIN 7/16  FEMALE FLANGE MOUNT RF Connector
  • DIN 7/16  MALE FLANGE MOUNT RF Connector
  • DIN 7/16 Male Straight Crimp For LMR600 - RF Connector
  • DIN 7/16 Female Straight Crimp For LMR600 - RF Connector
  • DIN 7/16 Female Straight Crimp For LMR600 - RF Connector

Product Short Description:

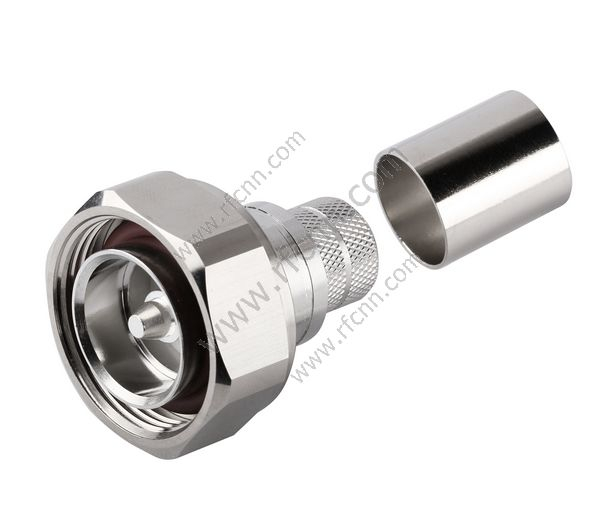

DIN 7/16 Male Straight Crimp For LMR600


Product Description



Specification of product:



Part No DIN.121.LMR600
Connector Series DIN 7/16
Connector Type male
Contact Termination Solder
Shield Termination Clamp
Impedance 50 Ohm
Mounting Type Free Hanging
Cable Group LMR600
Fastening Type Thread
Frequency - Max DC-3GHz
Body Material Brass
Body Finish Nickel
Center Contact Material Brass
Center Contact Finish Gold
Dielectric Material Polytetrafluorethylene (PTFE)
Voltage Rating 375V
Working Temperature -65°C ~ 165°C

Application of product

Aerospace,Defense,Telecom,Broadcast, Industrial,Medical, Instrumentation.

Environmental Compliance

All product is RoHS and REACH complaint.
