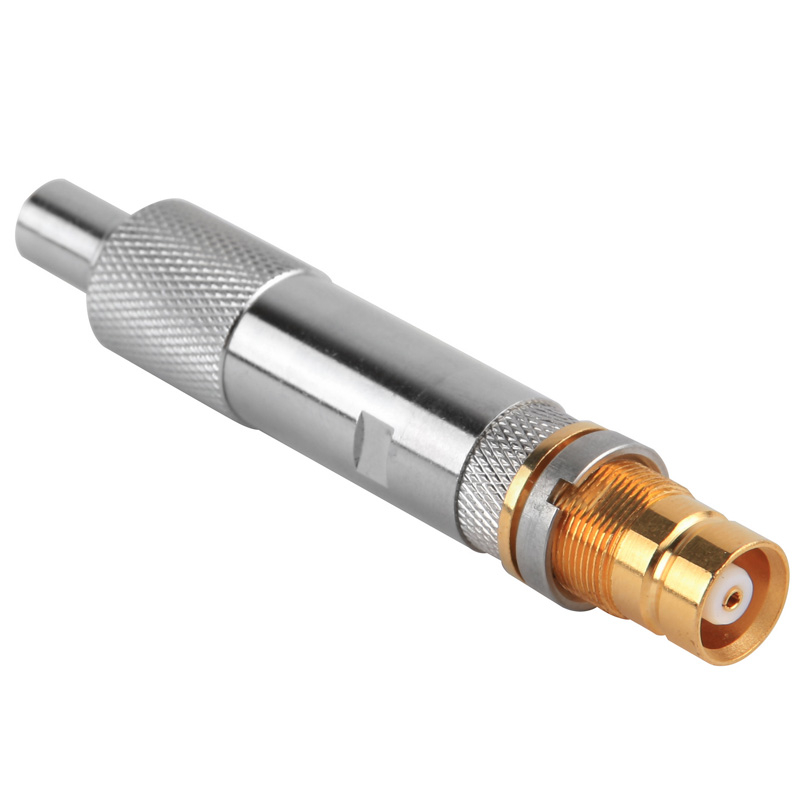

Mini Balun 1.6/5.6 L9 female to IDC AWG24/26 RF Connector

  • Mini Balun 1.6/5.6 L9 to IDC AWG24/26 RF Connector
  • Mini Balun 1.6/5.6 L9 female to IDC AWG24/26 RF Connector
  • Mini Balun 1.6/5.6 L9 female right angle to IDC AWG24/26 RF Connector
  • Mini Balun 1.6/5.6 L9 male straight to IDC AWG24/26 RF Connector

Product Short Description:

Mini Balun 1.6/5.6 L9 female to IDC AWG24/26 RF Connector


Product Description



Part No MB-1656-251
Description Mini Balun 1.6/5.6 L9 Female straight to IDC AWG24/26 RF Connector
Connector Series 1.6/5.6
Connector Type female
Contact Termination IDC KRONE
Shield Termination Crimp
Impedance 75-120Ohm
Mounting Type Free Hanging
Cable Group AWG 24/26
Fastening Type SNAP ON
Frequency - Max DC-6GHz
Body Material Brass
Body Finish Gold
Center Contact Material Brass
Center Contact Finish Gold
Dielectric Material Polytetrafluorethylene (PTFE)
Voltage Rating 375V
Working Temperature -65°C ~ 165°C

We also make RF Connectors, Cable Assemblies, 7/16 DIN RF Connectors,
N RF Connectors, FAKRA SMB RF Connectors, IPX RF Connectors,
MCX RF Connectors, MMCX RF Connectors, SMA RF Connectors,
SSMA RF Connectors, SMB RF Connectors, SSMB RF Connectors,
SMC RF Connectors, SMZ RF Connectors, TNC RF Connectors,
1.0/2.3 RF CONNECTORS, 1.6/5.6 RF Connectors, BNC RF Connectors,Balun IDC RF Connector
F RF Connectors, FME RF Connectors, UHF RF Connectors, Mini-UHF RF Connectors, RF ADAPTER, Attenuator of RF Connectors, Terminator of RF Connectors, Surge protector, Microwave Device-Cavity Power Dividing Coupler, Microstrip Power Dividing, Combiner, Bridge.
