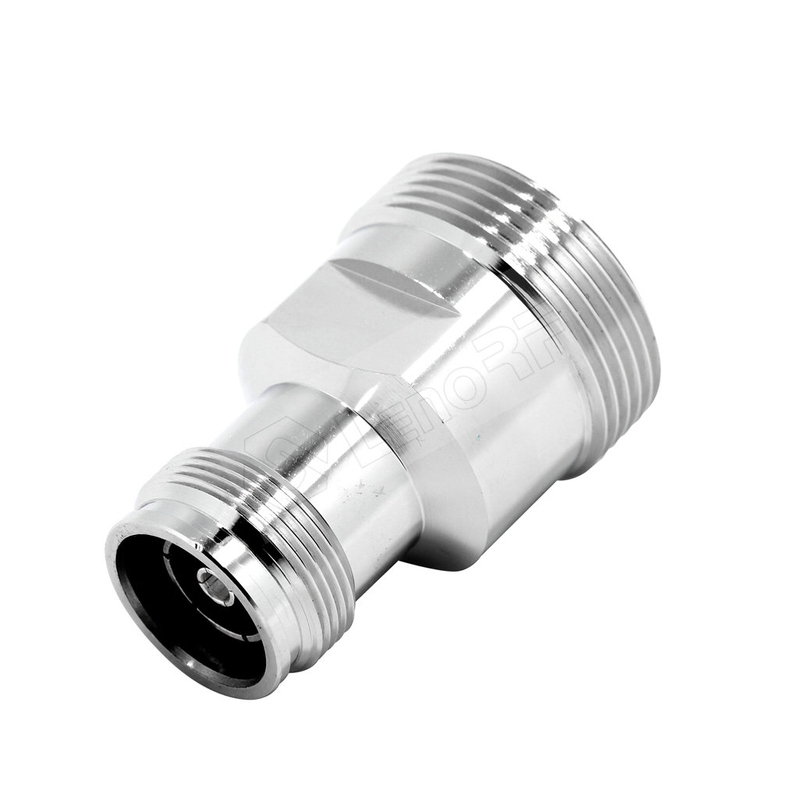

Mini DIN 4.3/10 Female to 7/16 Female Adaptor
Product Name:
Mini DIN 4.3/10 Female to 7/16 Female AdaptorModel No.:
900-1282
Product Short Description:
Mini DIN 4.3/10 Female to 7/16 Female Adaptor
- Product Description
Electrical Characteristics:
Frequency Range:
DC-3GHz
VSWR: ≤1.10
Insertion loss: ≤0.1 dB
PIM:≤-160dBC(2*43 dBm)
Insulation resistance:≥5000MΩ
Proof voltage:2500 V
Conductor resistance-Outer condutor: <0.5mΩ
Conductor resistance-Inner condutor: <1.0 mΩ
Normal impedance: 50Ω±2
Environmental Characteristics:Temperature range:-40º to +85ºC (-40° to +185ºF)
Weather standard: IEC 60068 40/085/21
Water proofing standard: IP68
Thermal shock: IEC 60068-2-14-Na
Vibration:IEC 60068-2-6-Fc
Shock:IEC 60068-2-27
RoHS compliant: Yes
Mechanical Characteristics: Nut torque:10-12N.m
Whole pull(nut):500N
Tensile force (cable-connector):500N
Torsion(cable-connector):4N.m
Assembly: Inner and outer conductor installed
Material and plating: Material plating Inner conductor: Spring bronze Ag5μm
Outer conductor: Brass Copper-tin-zinc 2μm
Nut: Brass Ni5μm
Gasket: Silicone rubber ------
Insulater: TPX ------
Q/A
Delivery time
It's depends on the order quantity, MOQ is 500PCS ,
500PCS to 5000PCS delivery time is 15 days
5000PCS to 50000PC delivery time is 20 days.
Warranty
Our warranty is 3 years ,during the warranty time we can exchange all defective products from customers for free.
Sample
5PCS sample is free. Sample Delivery time 7 to 15 days.
MOQ
500PCS as trial order.
Delivery term
FOB or EXW Shanghai. Otherwise we can use your specify shipping agent for CIP,CNF,CIF term.
Payment term
First order is T/T in advance, we can negociate term after 50K order quantity,
My factory have long term contract with China exporting&importing insurance bank.
