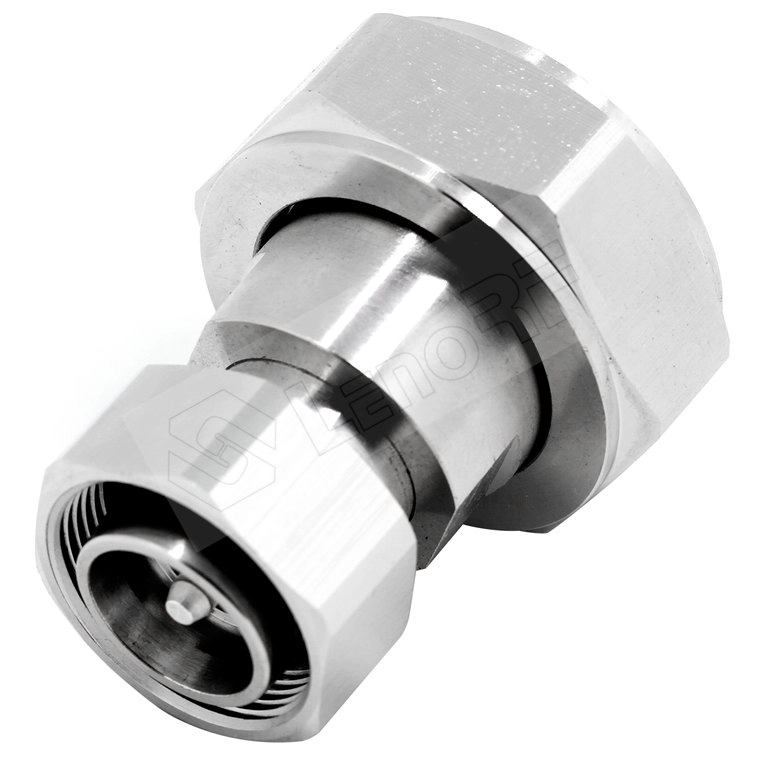

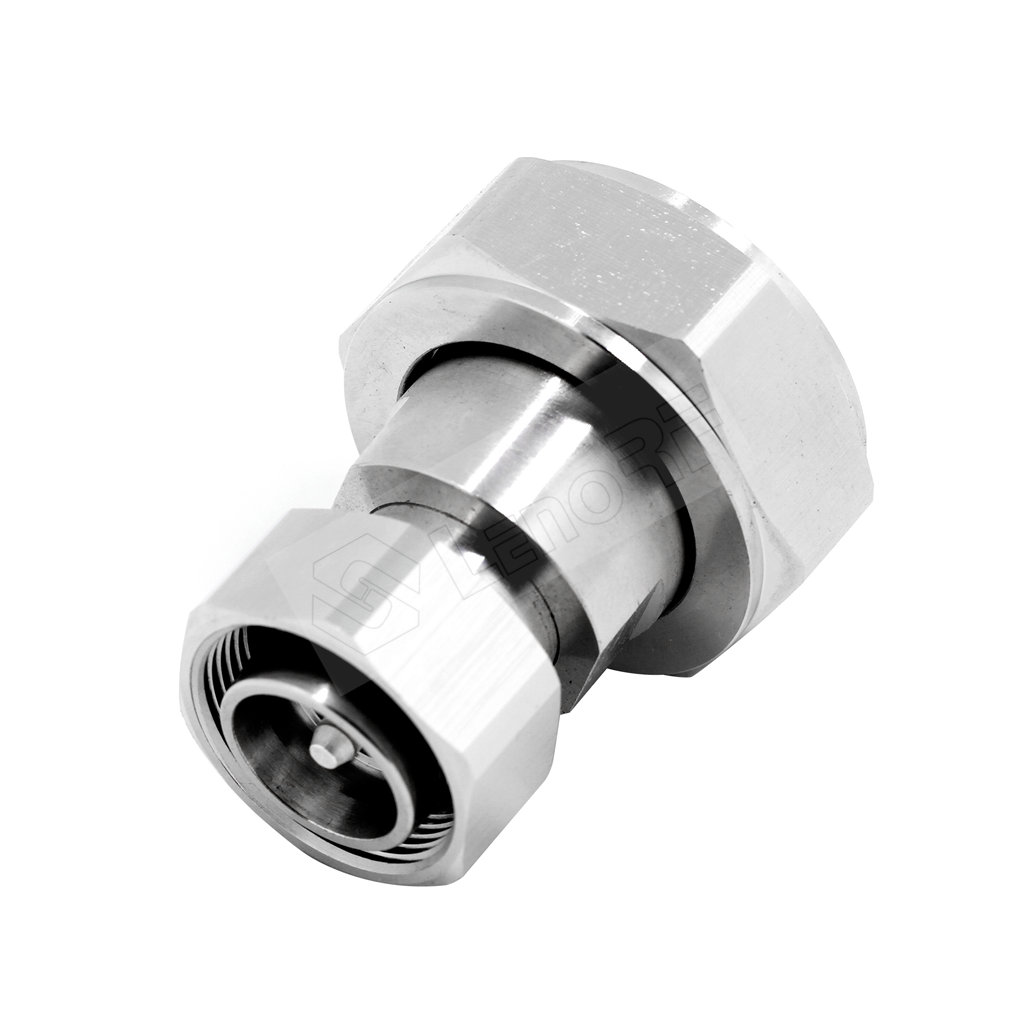

Mini DIN 4.3/10 Male to 7/16 Male Adaptor

  • Mini DIN 4.3/10 Male to 7/16 Male Adaptor
  • Mini DIN 4.3/10 Male to N Male Adaptor
  • Mini DIN 4.3/10 Female to N Female Adaptor
  • Mini DIN 4.3/10 Female to 7/16 Female Adaptor
  • Mini DIN 4.3/10 Male Soldering for 1/2'' Regular Corrugated Cable
  • Mini DIN 4.3/10 Male Right Angle Soldering1/2'' Superflex Cable
  • Mini DIN 4.3/10 Male Soldering for 1/2'' Superflex Cable
  • Mini DIN 4.3/10 Male for 1/2'' Superflex Cable
  • Mini DIN 4.3/10 Male Right Angle Clamping for 1/2'' Superflex Cable

Product Short Description:

Mini DIN 4.3/10 Male to 7/16 Male Adaptor


Product Description





Electrical Characteristics:


Frequency Range:
DC-3GHz


VSWR: ≤1.10
Insertion loss: ≤0.1 dB
PIM:≤-160dBC(2*43 dBm)
Insulation resistance:≥5000MΩ
Proof voltage:2500 V
Conductor resistance-Outer condutor: <0.5mΩ
Conductor resistance-Inner condutor: <1.0 mΩ
Normal impedance: 50Ω±2




Environmental Characteristics:

Temperature range:-40º to +85ºC (-40° to +185ºF)
Weather standard: IEC 60068 40/085/21
Water proofing standard: IP68
Thermal shock: IEC 60068-2-14-Na
Vibration:IEC 60068-2-6-Fc
Shock:IEC 60068-2-27
RoHS compliant: Yes


Mechanical Characteristics:

Nut torque:10-12N.m
Whole pull(nut):500N
Tensile force (cable-connector):500N
Torsion(cable-connector):4N.m
Assembly: Inner and outer conductor installed


Material and plating:        Material                       plating

Inner conductor:               Spring bronze              Ag5μm
Outer conductor:              Brass                            Copper-tin-zinc 2μm
Nut:                                     Brass                            Ni5μm
Gasket:                              Silicone rubber           ------
Insulater:                           TPX                               ------
