| Body Plating | Nickel |
| Body Material | Brass |
| Cable Type | - |
| Contact Plating | Gold |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimping |
| Coupling Mechanism | Threaded |
| HS Code | 8536909000 |
| Frequency (Max GHz) | 6 |
| Gender | Plug |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |

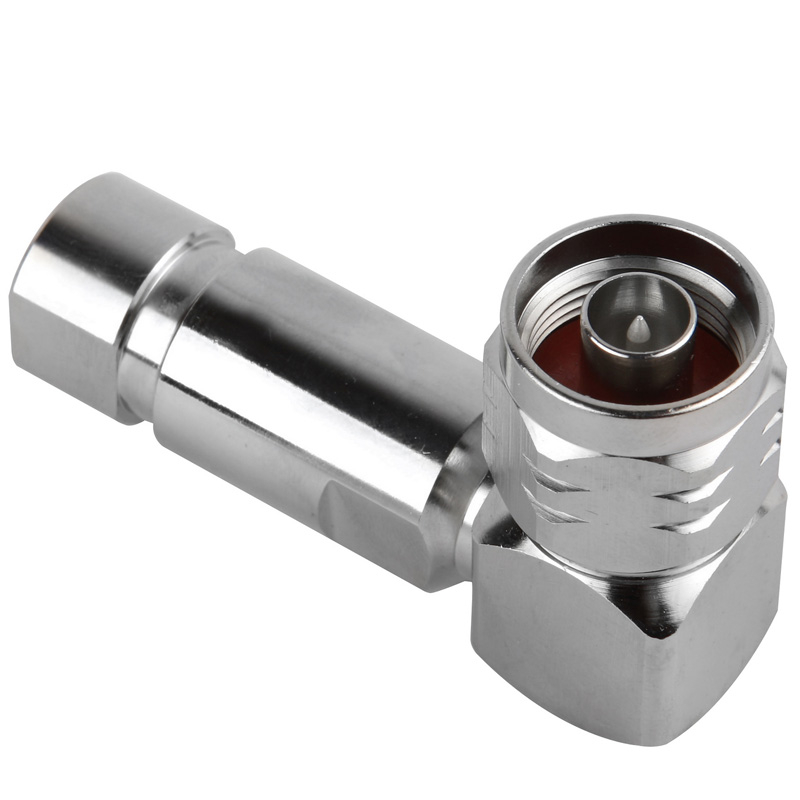

| Orientation | Right Angle |
| Size Category | Standard |
| Temperature Range | -65 -165 °C |
| Termination Style | Crimping |
| Thread Direction | Standard |
| Mating Cycles | 500 Min |
| Interface Specification | MIL-STD-348 |
FAQ
1. Sample delivery time
Regular model need 15 days, some complex connectors need 25 days
2. Sample Fee
The most of RF connector is CNC parts,don't need to make mold.
Through, each part need be tuning the CNC, usually one sample need 200 USD cost.
The fee will return after 5K bulk order
3. The quarantee
Brass RF connector is one year, the stainless steel connector is three year.
Also, depend on the material of contact, Beryllium contact have better lifetime.
4. ROHS&REACH
Our product fully compliance with ROHS&REACH.
5.Does LENORF offer military class product
Yes. We honor to offer military product with super stable quality.
