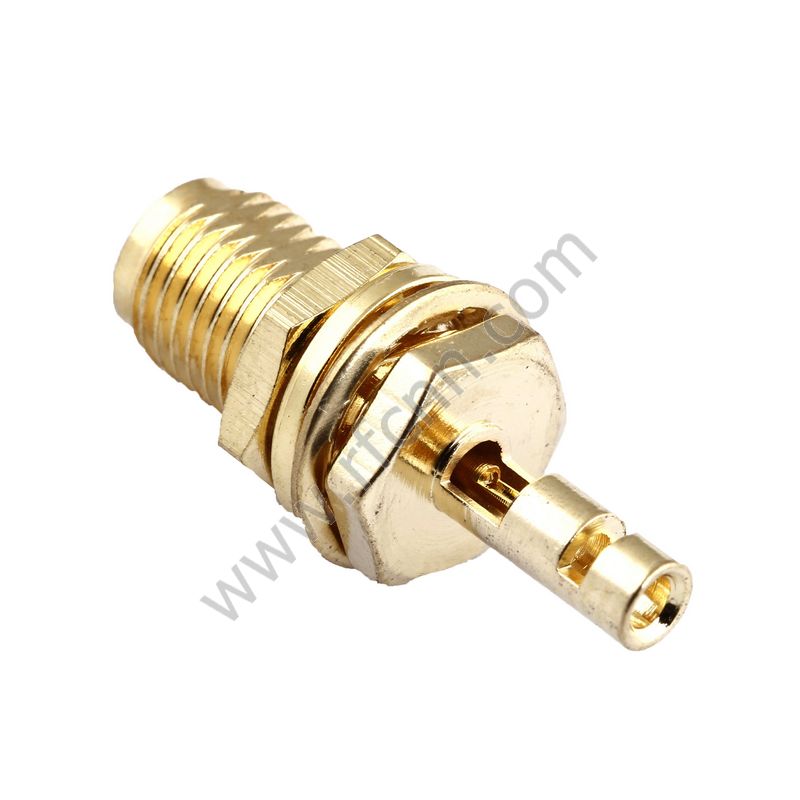

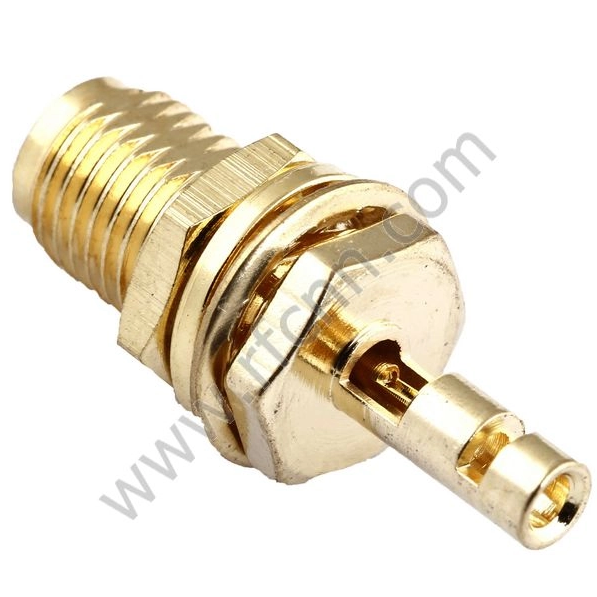

SMA Connector Female Crimp Straight For 1.13 Micro-cable

LenoRF offers high-quality and high-performance SMA coaxial connectors. For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors include a predetermined maximum torque. Excellent frequency ranges of up to 18 GHz and return loss of less than 30 dB are possible thanks to the butted outer contact. SMA connectors are widely used in RF applications such as telecommunications and mobile communication, as well as test and measurement instruments and equipment.
  • SMA221-113

  • Female

  • Straight

  • Crimping

  • Crimping

  • 1.13

Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable Type1.13
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationCrimp
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)9
GenderMale   Female
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategorySubminiature
Temperature Range-65   -165 °C
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
