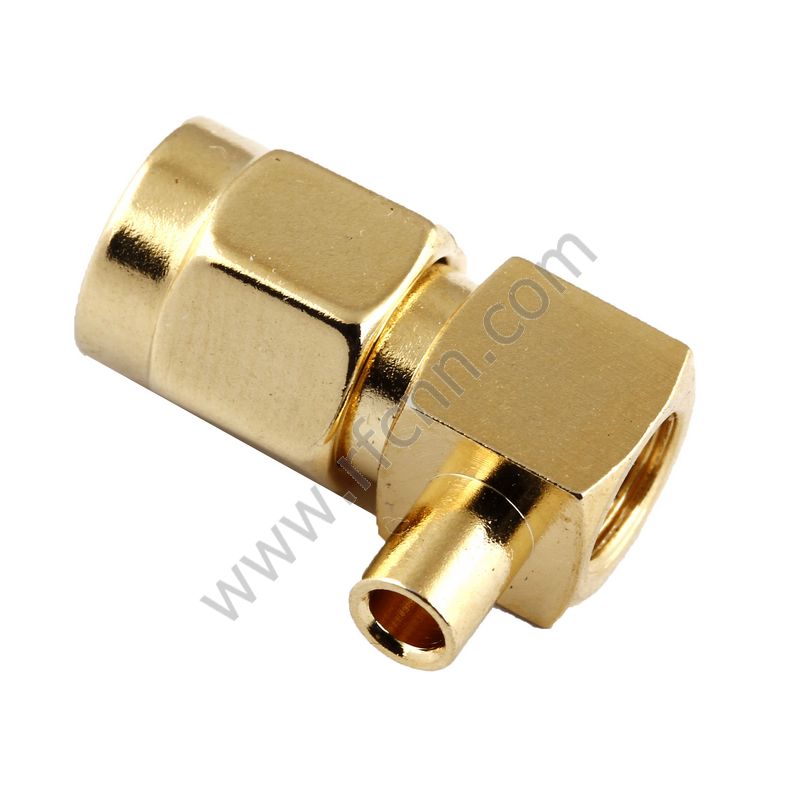

SMA Connectors Male Solder Right Angle For RG405 RF Cable

LenoRF offers high-quality and high-performance SMA coaxial connectors. For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors include a predetermined maximum torque. Excellent frequency ranges of up to 18 GHz and return loss of less than 30 dB are possible thanks to the butted outer contact. SMA connectors are widely used in RF applications such as telecommunications and mobile communication, as well as test and measurement instruments and equipment.
  • SMA121RA-405

  • Male

  • Right angle

  • Soldering

  • Soldering

  • RG405

Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable TypeRG405
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
GenderMale
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationRight   Angle
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StylePCB   - Through Hole
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
