| Part No | SA-DINMF-Q-12 |

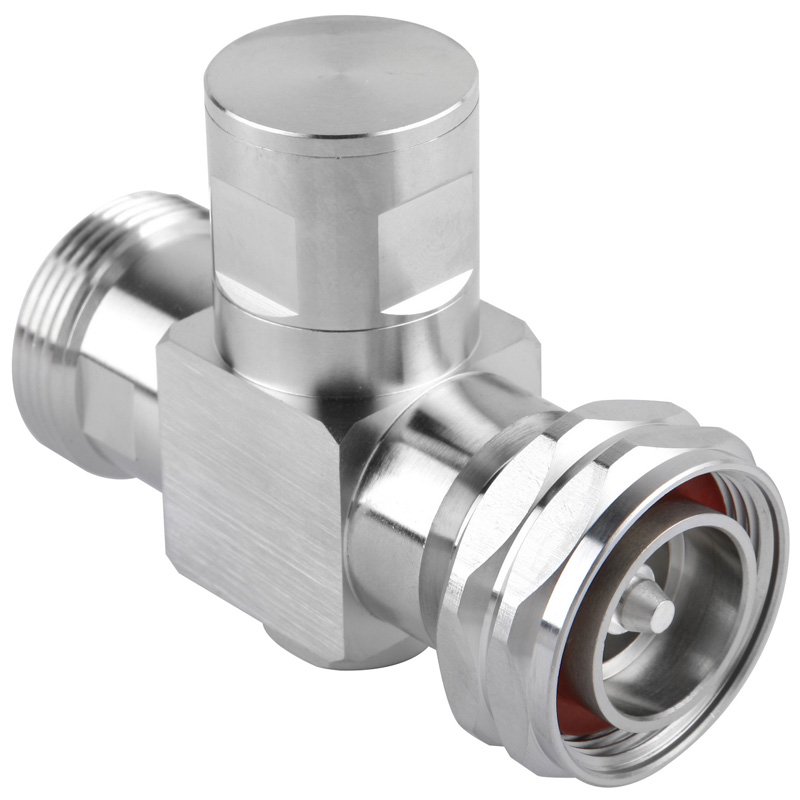

| Description | Surge Arrestor Quarterwave For Microwave -DIN Male to Female |
| Surge Arrestor type | Quarterwave |
| Connector Type | DIN Male Female |
| Frequency | DC-6G |
| VSWR | ≤1.15 |
| Insertion Loss | ≤0.15dB |
| Impedance | 50 ohms |
| Maximum Surge | 30KA |
| Voltage Rating | 375V |
| Body Material | Brass |
| Body Finish | Nickle /Ternary Alloy |
| Waterproof | IP65 |
| Working Temperature | -65°C ~ 165°C |
