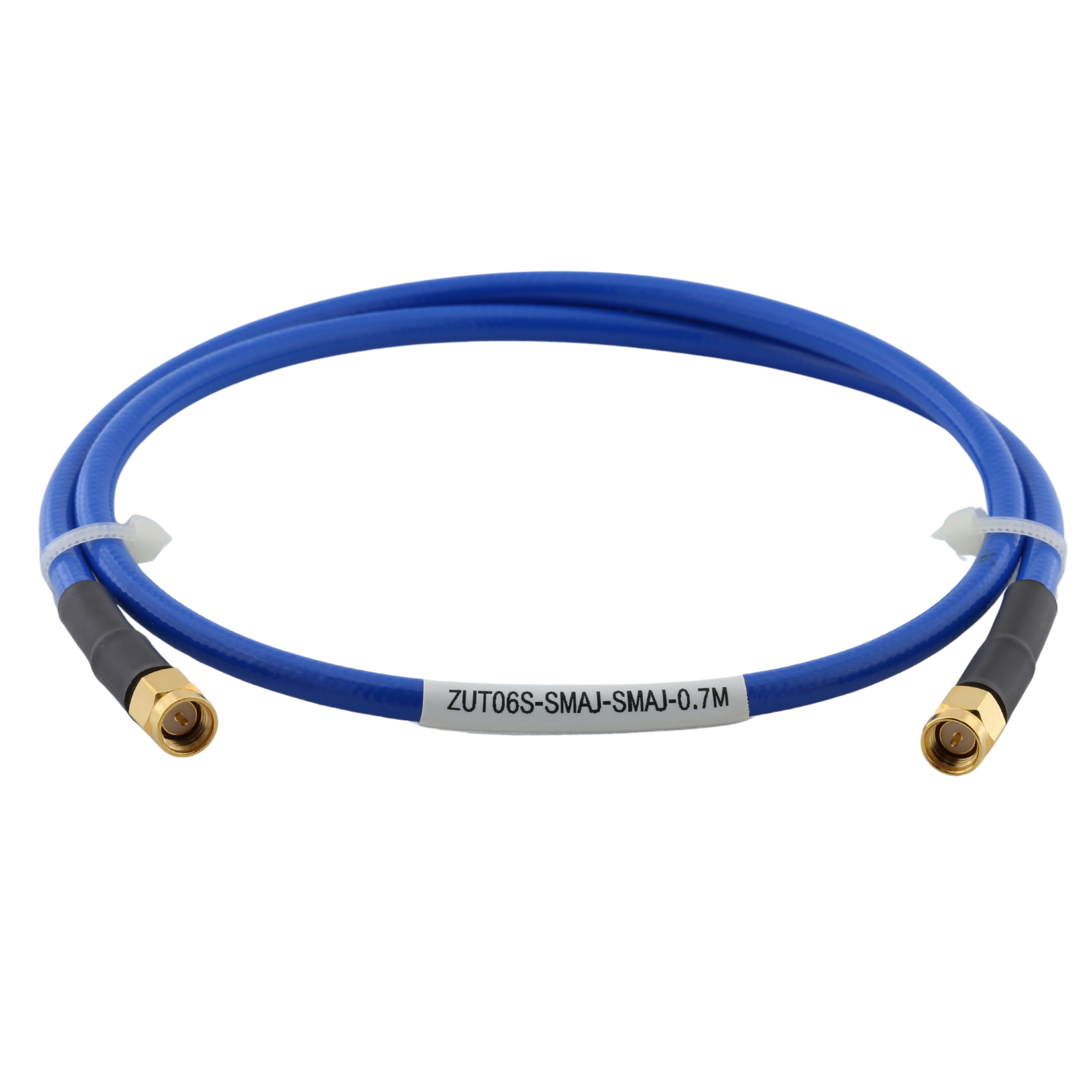

ZUT06S-SMAJ-SMAJ
Male
Straight
Crimping
Crimping
Availability: | |
---|---|
The TestLink RF Test Cable Assemblies are engineered to meet high standards in attenuation, phase stability, and durability, making them ideal for test and measurement applications. Equipped with purpose-designed connectors, they feature a specialized connection process that ensures low and stable VSWR, along with robust cable protection against mechanical stress.
The connector bodies and nuts are crafted from stainless steel, providing exceptional durability with a high number of mating cycles. These features make TestLink cables the perfect choice for laboratory or production environments, where reliable signal testing is conducted frequently.
Series | Frequency | Connector |
ZUT06 | 6 GHz | SMA,N ,TNC ,BNC Connector |
ZUT26 | 26.5 GHz | 3.5 mm, SMA, N, TNC Connector |
ZUT40 | 40 GHz | 2.40 mm, 2.92 mm Connector |
ZUT50 | 50 GHz | 2.40 mm, 2.92 mm Connector |
ZUT67 | 67 GHz | 1.85 mm Connector |
ZUT110 | 110 GHz | 1.0 mm Connector |
Applications:
•Laboratory test and measurement
•Production line testing
•Field test and measurement
•High stability
•100% tested for reliability
•Superior electrical performance
•Precision connectors
•Extended mating cycles
•Heat-resistant and flame-retardant design
•Armoured jacket available
Covers DC-6GHz, featuring excellent amplitude and phase stability, flexibility, and long service life. The test cable assemblies are equipped with reinforced precision connectors and are widely used in laboratory testing, production line testing, mobile base station testing, and other RF applications.
Part No | ZUT06 | |
Cable Construction | ||
No | Material & Surface Finish | |
1 | Conduct: | Silver plated cooper wire |
2 | Insulator: | PTFE |
3 | Inner braiding: | Silver plated cooper braiding |
4 | Outer braiding: | Silver plated cooper braiding |
5 | Jacket Jacket: | PVC/PUR |
Mechanical Characteristic | ||||
Dimension | mm | Inch | ||
Conduct | 0.92 | 0.036 | ||
Insulator | 3 | 0.118 | ||
Inner Braiding | 3.5 | 0.138 | ||
Outer Braiding | 3.95 | 0.156 | ||
Jacket | 5.20 | 0.205 | ||
Weight | 0.062kg/m | |||
Mininum Bending Radius(Dynamic) | 25.4mm | |||
Cycle | > 5000 | |||
Temperature Range | -45℃~ +85℃ | |||
Electrical Characteristic | ||||
Maximum VSWR | Connector | 1 GHz | 3 GHz | 6 GHz |
SMA | 1.10:1 | 1.15:1 | 1.25:1 | |
N | 1.10:1 | 1.15:1 | 1.25:1 | |
TNC | 1.15:1 | 1.15:1 | 1.25:1 | |
BNC | 1.15:1 | 1.25:1 | ||
Impedance | 50Ω | |||
Velocity Propagation | 70% | |||
Shielding Efficiency | >80 dB | |||
Amplitude Stability | <±0.03dB@6GHz | |||
Phase Stability | ±1.5° @6GHz |
Attenuation(25℃) | ||
Frequency(MHz) | dB/100 ft | dB/100m |
100 | 3.96 | 13 |
400 | 7.92 | 26 |
1000 | 12.8 | 42 |
3000 | 23.77 | 78 |
5000 | 32 | 105 |
6000 | 39.01 | 128 |
Average power (25℃,Sea level, only cable) | ||
Frequency(MHz) | Watts | |
100 | 980 | |
400 | 490 | |
1000 | 300 | |
3000 | 180 | |
5000 | 140 | |
6000 | 120 |
Part No: ZUT06S-SMAJ-SMAJ
LenoRF ensures that TestLink cables deliver unmatched performance for all RF testing needs
The TestLink RF Test Cable Assemblies are engineered to meet high standards in attenuation, phase stability, and durability, making them ideal for test and measurement applications. Equipped with purpose-designed connectors, they feature a specialized connection process that ensures low and stable VSWR, along with robust cable protection against mechanical stress.
The connector bodies and nuts are crafted from stainless steel, providing exceptional durability with a high number of mating cycles. These features make TestLink cables the perfect choice for laboratory or production environments, where reliable signal testing is conducted frequently.
Series | Frequency | Connector |
ZUT06 | 6 GHz | SMA,N ,TNC ,BNC Connector |
ZUT26 | 26.5 GHz | 3.5 mm, SMA, N, TNC Connector |
ZUT40 | 40 GHz | 2.40 mm, 2.92 mm Connector |
ZUT50 | 50 GHz | 2.40 mm, 2.92 mm Connector |
ZUT67 | 67 GHz | 1.85 mm Connector |
ZUT110 | 110 GHz | 1.0 mm Connector |
Applications:
•Laboratory test and measurement
•Production line testing
•Field test and measurement
•High stability
•100% tested for reliability
•Superior electrical performance
•Precision connectors
•Extended mating cycles
•Heat-resistant and flame-retardant design
•Armoured jacket available
Covers DC-6GHz, featuring excellent amplitude and phase stability, flexibility, and long service life. The test cable assemblies are equipped with reinforced precision connectors and are widely used in laboratory testing, production line testing, mobile base station testing, and other RF applications.
Part No | ZUT06 | |
Cable Construction | ||
No | Material & Surface Finish | |
1 | Conduct: | Silver plated cooper wire |
2 | Insulator: | PTFE |
3 | Inner braiding: | Silver plated cooper braiding |
4 | Outer braiding: | Silver plated cooper braiding |
5 | Jacket Jacket: | PVC/PUR |
Mechanical Characteristic | ||||
Dimension | mm | Inch | ||
Conduct | 0.92 | 0.036 | ||
Insulator | 3 | 0.118 | ||
Inner Braiding | 3.5 | 0.138 | ||
Outer Braiding | 3.95 | 0.156 | ||
Jacket | 5.20 | 0.205 | ||
Weight | 0.062kg/m | |||
Mininum Bending Radius(Dynamic) | 25.4mm | |||
Cycle | > 5000 | |||
Temperature Range | -45℃~ +85℃ | |||
Electrical Characteristic | ||||
Maximum VSWR | Connector | 1 GHz | 3 GHz | 6 GHz |
SMA | 1.10:1 | 1.15:1 | 1.25:1 | |
N | 1.10:1 | 1.15:1 | 1.25:1 | |
TNC | 1.15:1 | 1.15:1 | 1.25:1 | |
BNC | 1.15:1 | 1.25:1 | ||
Impedance | 50Ω | |||
Velocity Propagation | 70% | |||
Shielding Efficiency | >80 dB | |||
Amplitude Stability | <±0.03dB@6GHz | |||
Phase Stability | ±1.5° @6GHz |
Attenuation(25℃) | ||
Frequency(MHz) | dB/100 ft | dB/100m |
100 | 3.96 | 13 |
400 | 7.92 | 26 |
1000 | 12.8 | 42 |
3000 | 23.77 | 78 |
5000 | 32 | 105 |
6000 | 39.01 | 128 |
Average power (25℃,Sea level, only cable) | ||
Frequency(MHz) | Watts | |
100 | 980 | |
400 | 490 | |
1000 | 300 | |
3000 | 180 | |
5000 | 140 | |
6000 | 120 |
Part No: ZUT06S-SMAJ-SMAJ
LenoRF ensures that TestLink cables deliver unmatched performance for all RF testing needs
