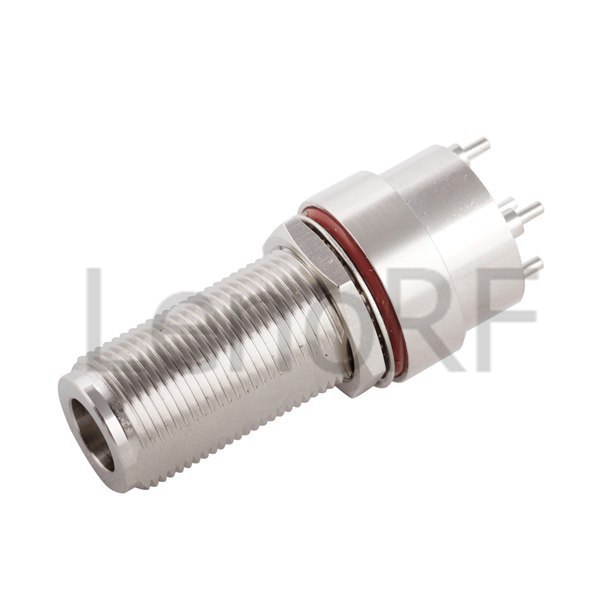

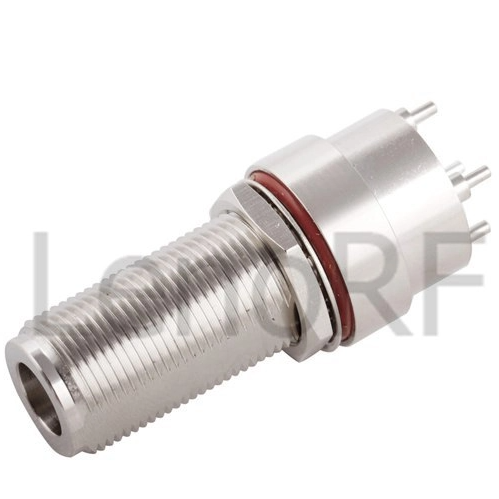

N Connectors Female Bulkhead Straight For PCB

"Our N type connector is of exceptional quality and value. To achieve high-quality electric performance and a reliable mechanism through threaded coupling, we utilize brass, phosphor bronze, or beryllium copper for the center contact with silver, gold plating, and brass for the body with silver, tri-metal plating.
The N type connector is compatible with a wide range of coaxial cables, including those with low loss.
The RoHS and REACH-compliant N-type RF connector is designed for a wide range of applications, including antennas, base stations, instrumentation, satellite systems, WLAN, radar systems, broadcast, and surge protection, and is built to the MIL-C-39012 standard."
  • N236-ROUND

  • Female

  • Straight

  • Soldering

  • Soldering

  • N/A

Availability:
Quantity:
Body   PlatingTri-metal
Body MaterialBrass
Cable Type-
Contact PlatingGold
Contact MaterialBeryllium   copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)9
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategoryStandard
Temperature Range-65   -165 °C
Termination StyleSolder
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
