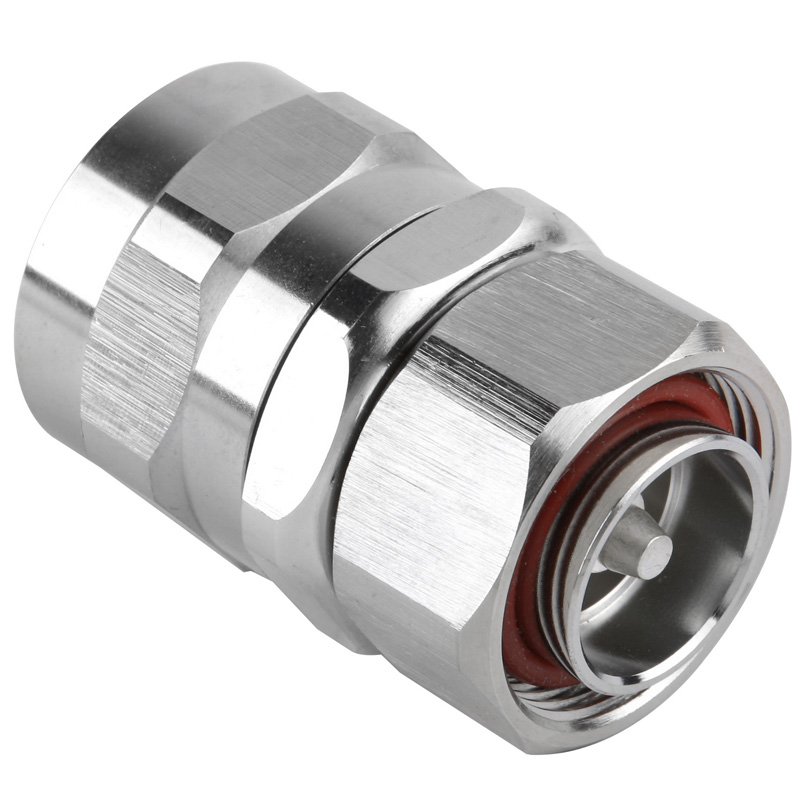

DIN 7/16 male clamp for 7/8" flex RF Connector

  • DIN 7/16 male clamp for 7/8" flex RF Connector
  • DIN 7/16 male clamp for 3/8" flex RF Connector
  • DIN 7/16 female RF Connector -Flange type
  • DIN 7/16 male for 7/8 RF Connector
  • DIN 7/16 Female Flange microstrip RF Connector -Flange type
  • DIN MALE 7/16 FOR RG58 RF Connector
  • DIN MALE 7/16 FOR 3/8" Super flexible cable RF Connector
  • DIN MALE 7/16 FOR 1/2" Super flexible cable RF Connector
  • DIN MALE 7/16 FOR 1/4" Super flexible cable RF Connector
  • DIN MALE 7/16 FOR 3/8" Super flexible cable RF Connector
  • DIN MALE 7/16 FOR 1 5/8" Super flexible cable RF Connector
  • DIN MALE 7/16 FOR 1 1/4" Super flexible cable RF Connector
  • DIN 7/16 MALE RIGHT ANGLE FOR RG213 RF Connector
  • DIN 7/16 MALE RIGHT ANGLE FOR 1/2" SUPER FLEXIBLE CABLE RF Connector
  • DIN 7/16 FEMALE  FOR RG142 RF Connector
  • DIN 7/16 FEMALE  FOR 1/2" SUPER FLEXIBLE CABLE RF Connector
  • DIN 7/16 BULKHEAD PANEL MOUNT FEMALE  FOR  RG58 RF Connector
  • DIN 7/16  FLANGE  FEMALE  FOR  3/8" SUPER FLEXIBLE CABLE RF Connector
  • DIN 7/16  FEMALE  FOR  1 5/8" SUPER FLEXIBLE CABLE RF Connector
  • DIN 7/16  FEMALE  MICROSTRIP RF Connector
  • DIN 7/16  FEMALE  MICROSTRIP FLANGE 46MM RF Connector
  • DIN 7/16  MALE  MICRO STRIP RF Connector
  • DIN 7/16  MALE  MICRO STRIP RF Connector
  • DIN 7/16  MALE  FOR RG402 SEMI-RIGID CABLE  RF Connector
  • DIN 7/16  FEMALE  FOR RG402 SEMI-RIGID CABLE  RF Connector
  • DIN 7/16  FEMALE FLANGE MOUNT RF Connector
  • DIN 7/16  MALE FLANGE MOUNT RF Connector
  • DIN 7/16 Male Straight Crimp For LMR600 - RF Connector
  • DIN 7/16 Female Straight Crimp For LMR600 - RF Connector

Product Short Description:

DIN 7/16 male clamp for 7/8" flex RF Connector


Product Description



Part No  DIN111-87
Description DIN 7/16 male clamp for 7/8" flex RF Connector
Connector Series DIN
Connector Type male
Contact Termination Solder
Shield Termination Crimp
Impedance 50 Ohm
Mounting Type Free Hanging
Cable Group 7/8
Fastening Type thread
Frequency - Max DC-18GHz
Body Material Brass
Body Finish Gold
Center Contact Material Brass
Center Contact Finish Gold
Dielectric Material Polytetrafluorethylene (PTFE)
Voltage Rating 375V
Working Temperature -65°C ~ 165°C

Part Name: DIN 7/16 type RF Connector
Material: Brass, Teflon, beryllium brass.
Plating: Golden, silver, nickel, triple-metal
Cable: 1/2 superflux,7/8 ,1 1/4



We also make RF Connectors, Cable Assemblies, 7/16 DIN RF Connectors,
N RF Connectors, FAKRA SMB RF Connectors, IPX RF Connectors,
MCX RF Connectors, MMCX RF Connectors, SMA RF Connectors,
SSMA RF Connectors, SMB RF Connectors, SSMB RF Connectors,
SMC RF Connectors, SMZ RF Connectors, TNC RF Connectors,
1.0/2.3 RF CONNECTORS, 1.6/5.6 RF Connectors, BNC RF Connectors,
F RF Connectors, FME RF Connectors, UHF RF Connectors, Mini-UHF RF Connectors, RF ADAPTER, Attenuator of RF Connectors, Terminator of RF Connectors, Surge protector, Microwave Device-Cavity Power Dividing Coupler, Microstrip Power Dividing, Combiner, Bridge.
