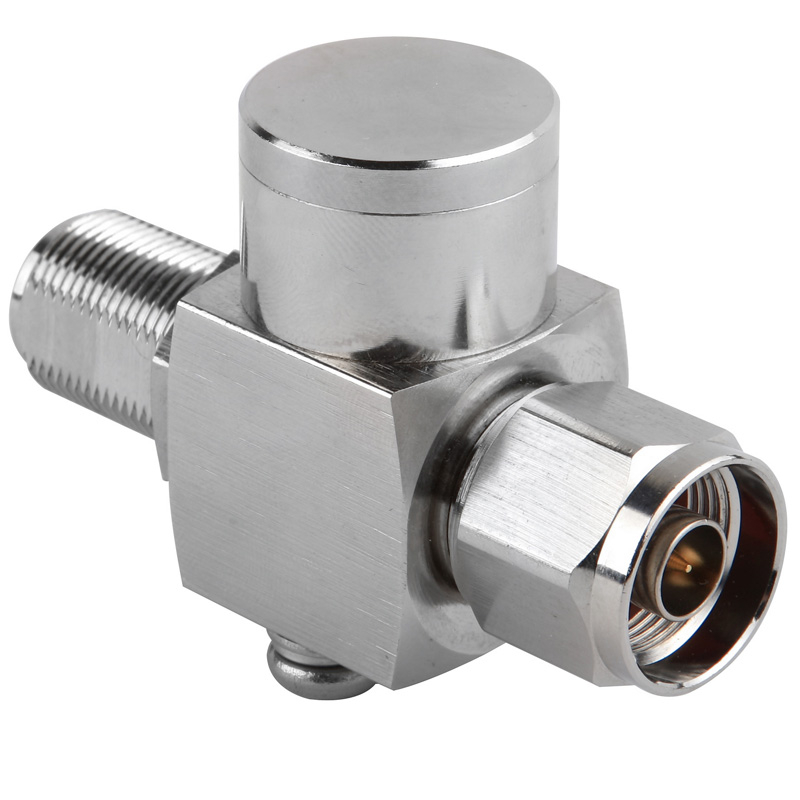

Surge Arrestor Quarterwave For Microwave N male to N female
You are here: Home » Products » Surge Protector » Surge Arrestor Quarterwave For Microwave N male to N female
Share to:

Surge Arrestor Quarterwave For Microwave N male to N female

  • SA-NMNF-Q
Quantity:



Part No SA-NMNF-Q
Description Surge Arrestor Quarterwave For Microwave N male to N female
Surge Arrestor type  Quarterwave
Connector Type Male Female
Frequency DC-6G
VSWR ≤1.25
Insertion Loss ≤0.15dB
Impedance 50 ohms
Maximum Surge 30KA
Voltage Rating 375V
Body Material Brass
Body Finish Nickle /Ternary Alloy
Waterproof IP65
Working Temperature -65°C ~ 165°C

We also make RF Connectors, Cable Assemblies, 7/16 DIN RF Connectors,
N RF Connectors, FAKRA SMB RF Connectors, IPX RF Connectors,
MCX RF Connectors, MMCX RF Connectors, SMA RF Connectors,
SSMA RF Connectors, SMB RF Connectors, SSMB RF Connectors,
SMC RF Connectors, SMZ RF Connectors, TNC RF Connectors,
1.0/2.3 RF CONNECTORS, 1.6/5.6 RF Connectors, BNC RF Connectors,
F RF Connectors, FME RF Connectors, UHF RF Connectors, Mini-UHF RF Connectors, RF ADAPTER, Attenuator of RF Connectors,
Terminator of RF Connectors, Surge protector, Microwave Device-Cavity Power Dividing Coupler, Microstrip Power Dividing, Combiner, Bridge.

Zhenjiang LenoRF Industry co. LTD- LenoRF ™ ,is a special manufacturer for RF coaxial connectors,cable assembly and Passive Devices. It occupies an area of 30 hectares with the existing building of 2000 square meters.The company is equipped with a lot of the world most advanced equipment and apparatus for production
