EIA Connector
The EIA connector known as the Electronic Industries Association connector, EIA was an American standards and trade organization , now their name is ECIA( Electronic component Industry association). EIA connector mostly used in high power radio frequency transmission, like broadcast industry for antenna, filter, combiner etc.
The connector named by the abbreviation EIA, EIA issue the standard RS-225 for rigid coaxial transmission line 50OHMS in 1959, RS-259 for rigid coaxial transmission line 75 OHMS in 1962. IEC issued the international standard IEC 60339-2 in 1996, the general purpose rigid coaxial transmission lines and their associated flange connectors. Although EIA flange connectors were originally intended for use with rigid air lines only, they are currently available in a number of additional styles and variants, suitable for use with semi-flexible cables having convoluted outer conductors.
LenoRF offer following EIA connectors and adapters, the number of products is constantly increasing.
EIA Connectors
| Part No | Part Name | EIA type | Cable type |
| 25-001 | 7-8" EIA connector for 1-2" flexible cable | 7/8" | 1/2" Flexible Cable |

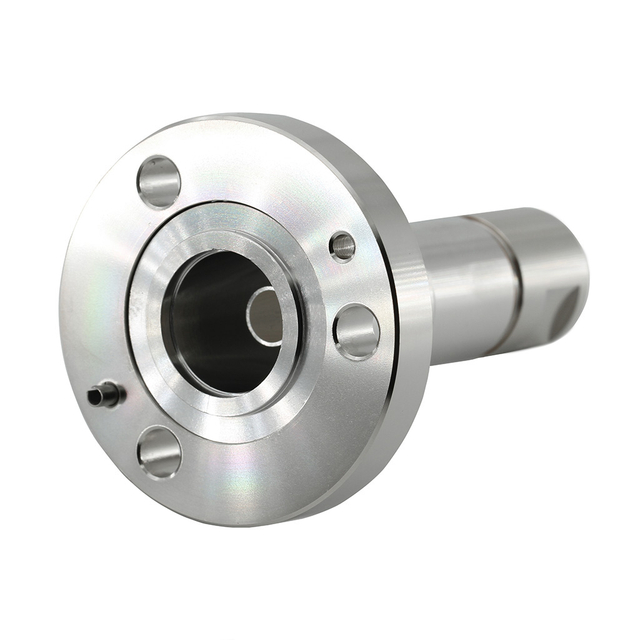

| 25-003 | 7-8" EIA connector for 1-2" Super flexible cable | 7/8" | 1/2" super flexible Cable |
| 25-009 | 7-8" EIA connector for RG213 cable | 7/8" | RG213 |

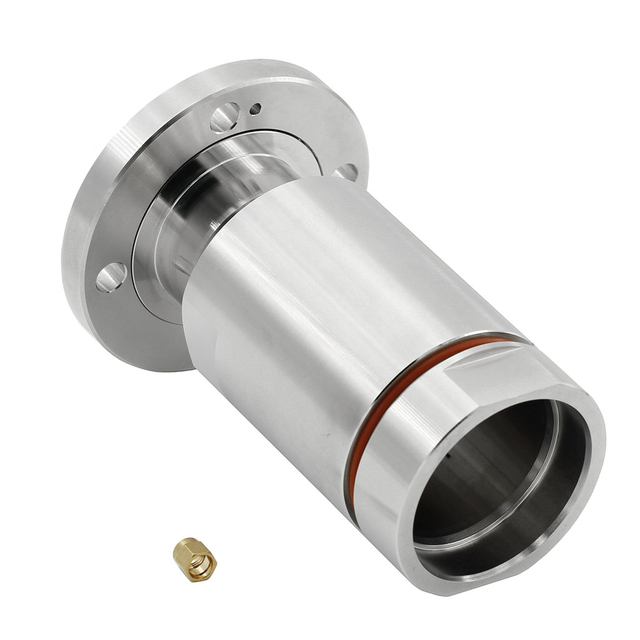

| 25-017 | 1 5-8" EIA connector for 1 5-8" cable | 1 5/8" | 1 5/8" |

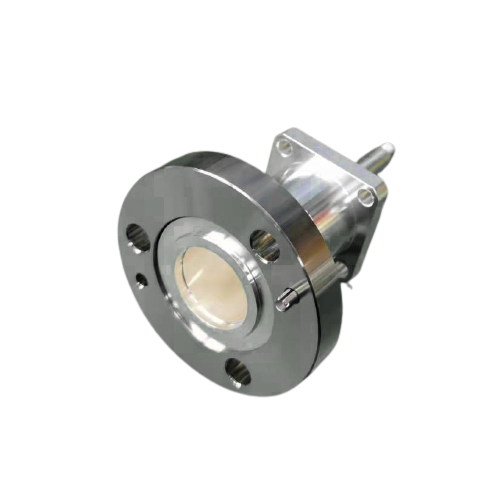

| 25-026 | 7-8" EIA connector M5 terminal | 7/8" | PCB |
| 25-039 | 7-8" EIA connector for RG213 cable | 7/8" | RG213 |

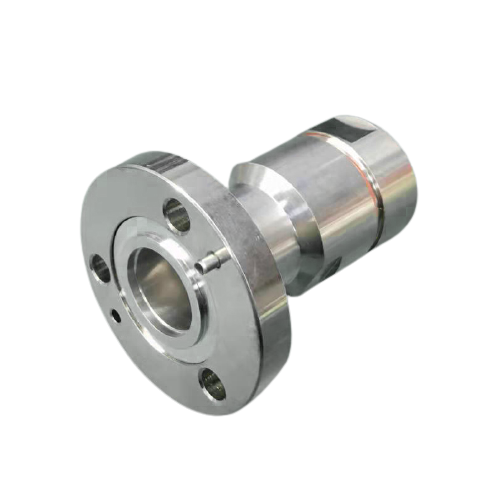

| 25-044 | 7-8" EIA connector for 7-8" cable | 7/8" | 7/8" |

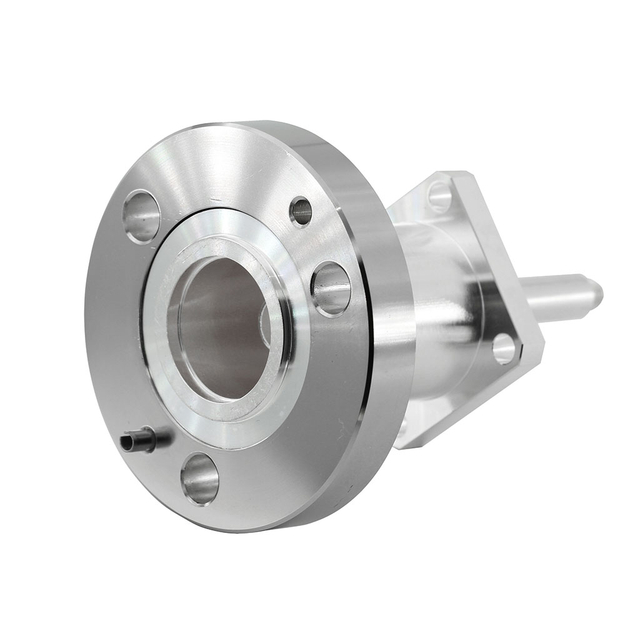

| 25-061 | 7-8" EIA connector terminal | 7/8" | PCB |
| 25-062 | 7-8" EIA connector terminal | 7/8" | PCB |
| 25-064 | 7-8" EIA connector right angle terminal | 7/8" | PCB |
| 25-066 | 7-8" EIA connector right angle for RG214 cable | 7/8" | RG214 |
| 35-012 | 7-8" EIA connector terminal | 7/8" | PCB |
Adapters
| Part No | Part Name | Connector1 | connector2 |
| 30-025 | 1 5/8"EIA FLANGES RIGHT-ANGLE ADAPTOR | 1 5/8" | 1 5/8" |
| 30-085 | 7/8"EIA FLANGES RIGHT-ANGLE ADAPTOR | 7/8" | 7/8" |
| 32-001 | 7-8" coupling element | 7/8" | 7/8" |

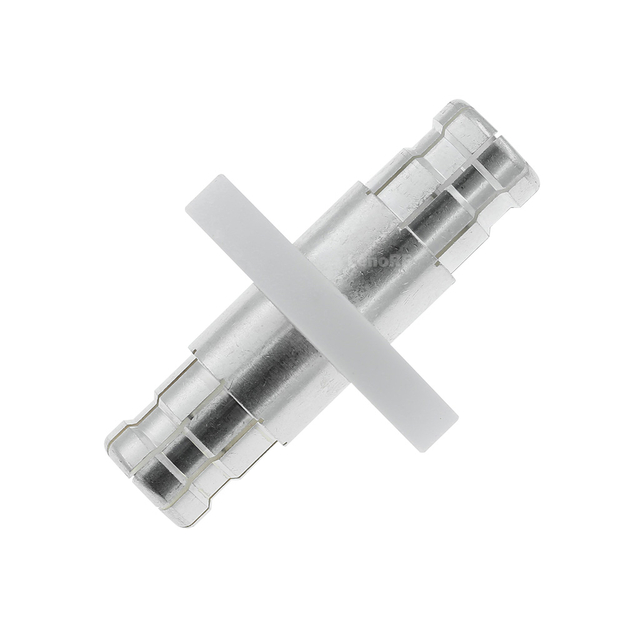

| 32-002 | 1 5/8" coupling element | 1 5/8" | 1 5/8" |
| 35-007 | 7/8" EIA FLANGE-7/16 JACK ADAPTOR | 7/8" | 7/16 female |
| 35-008 | 1 5-8" EIA FLANGE- N female adaptor | 1 5/8" | N female |
| 35-011 | 7-8" to 1 5-8" EIA connector flange adapter | 7/8" | 1 5/8" |
| 35-122 | 1 5-8" EIA FLANGE- 7/16 female adaptor | 1 5/8" | 7/16 female |
| 35-128 | 7/8" EIA FLANGE-7/16 plug ADAPTOR | 7/8" | 7/16 male |
| 35-153 | 1 5-8" EIA FLANGE- 7/16 male adaptor | 1 5/8" | 7/16 male |
