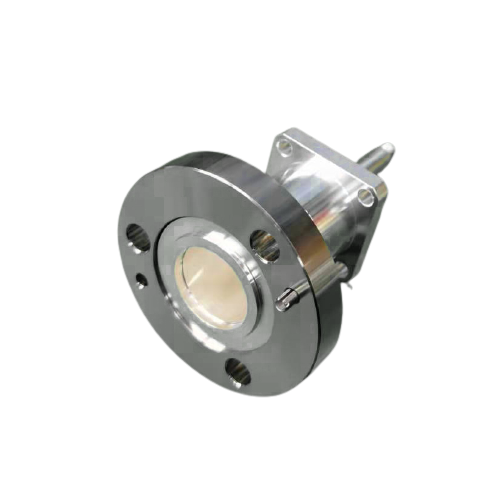

EIA RF Connector RS-225 7/8" Flange Mount For Microstrip

EIA RF Connectors are used to join two coaxial transmission lines of high power radio frequency that are hard or semi-rigid (flexline). These are often only required in very high-power transmitting facilities (10s of kW to MW) with feedline widths of several inches. A male connection, or bullet, is shown on one side of the connection, while a female connection, or cup, is indicated on the other. The Electronic Components Industry Association, or EIA, is in charge of a variety of imperial connection sizes. The International Electrotechnical Commission publishes IEC 60339-1 and IEC 60339-2, which are the related international standards. Many of these sizes are compatible with the US military's MIL-DTL-24044 RF Connectors.
  • 25-026
  • EIA.6051.028
  • Male
  • Straight
  • Clamping
  • Crimping
  • N/A
Availability:
Quantity:
Materials&Electroplating
ConductBrass/     Silver or Golden Plating
InsulatorPTFE
BodyBrass     /Ternary or nickel or silver
Other PartsBrass/     Nickel Plating
Electric Performance
Impedance50     OHMS
Frequency Range0-3GHz
VSWR≤1.30
Rating Voltage500V
Environmental
Temperature Rating-65°C     to +165°C
Corrosion (Salt Spray)MIL-STD-202,     Method 101, Condition B
VibrationMIL-STD-202,     Method 204, Condition D, 20 Gs
ShockMIL-STD-202,     Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202,     Method 107. Cond. B, -65°C to +125°C
Moisture ResistanceMIL-STD-202,     Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202,     Method 105, Condition C, 70k Ft.
