SMA Connector
Brief
SMA connectors are a type of coaxial connector that was developed in the 1960s for use in high-frequency microwave and millimeter-wave applications. They are named for their screw-type mating mechanism, which allows for a secure connection between two SMA connectors. SMA connectors are commonly used in a wide range of applications, including telecommunications, networking, military and aerospace, medical equipment, and more.
Types of SMA

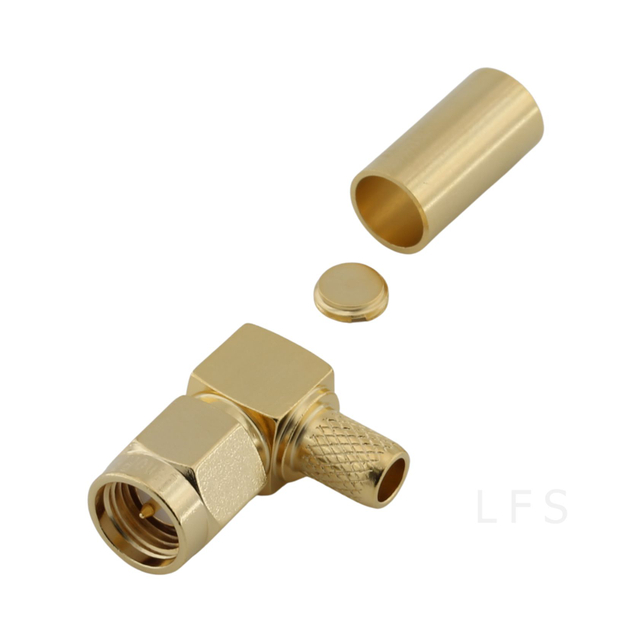

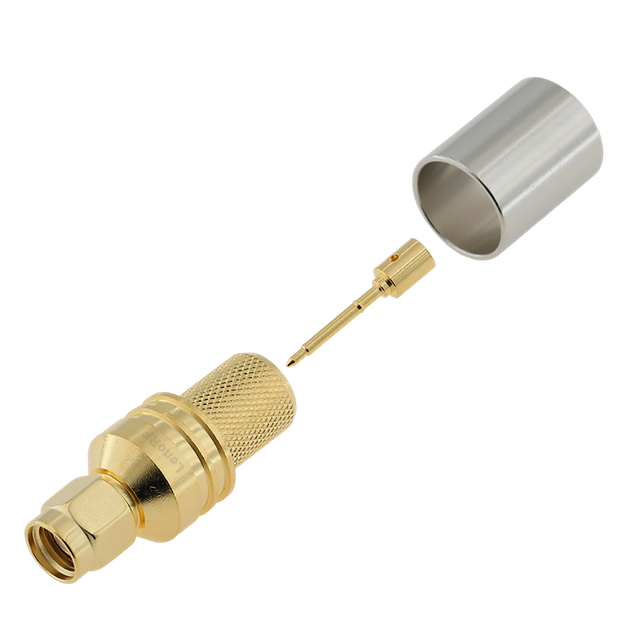

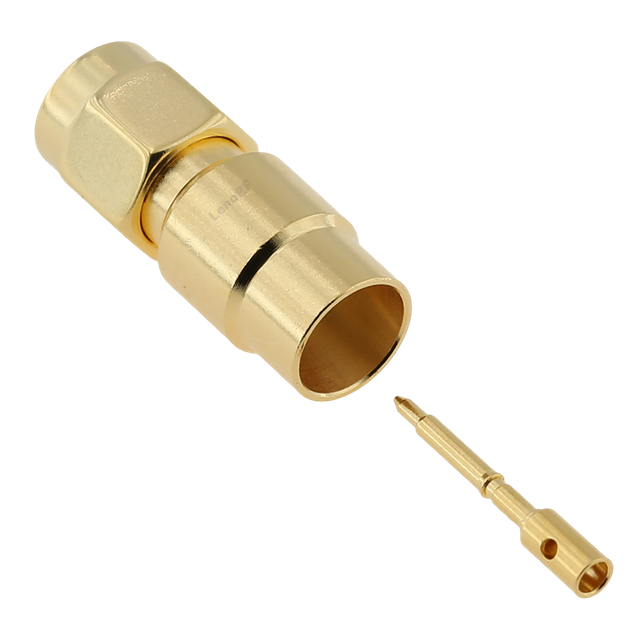

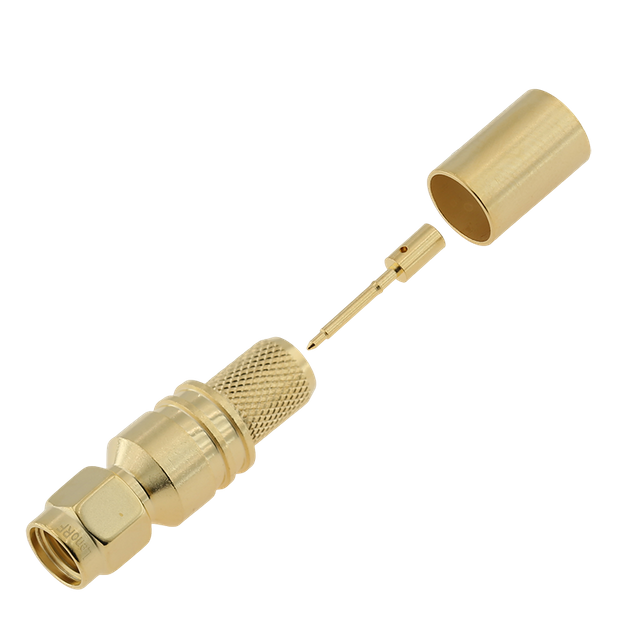

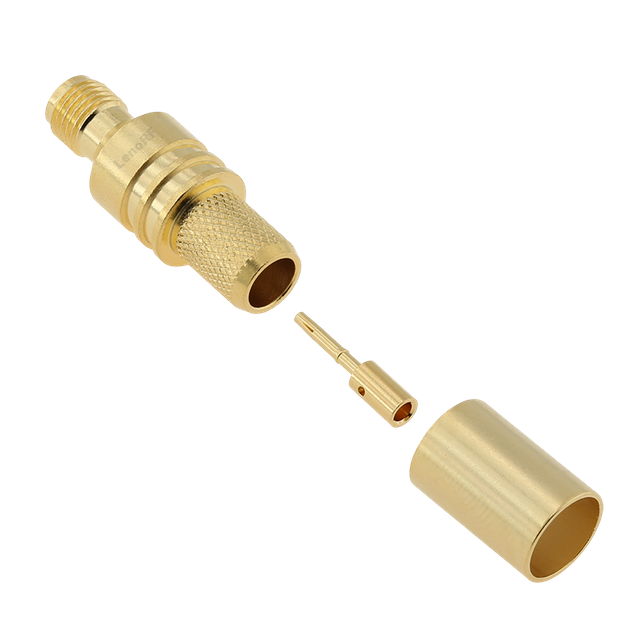

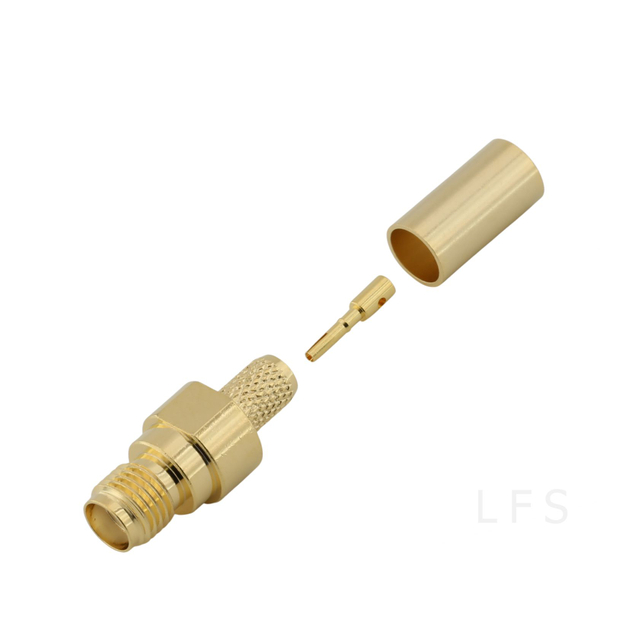

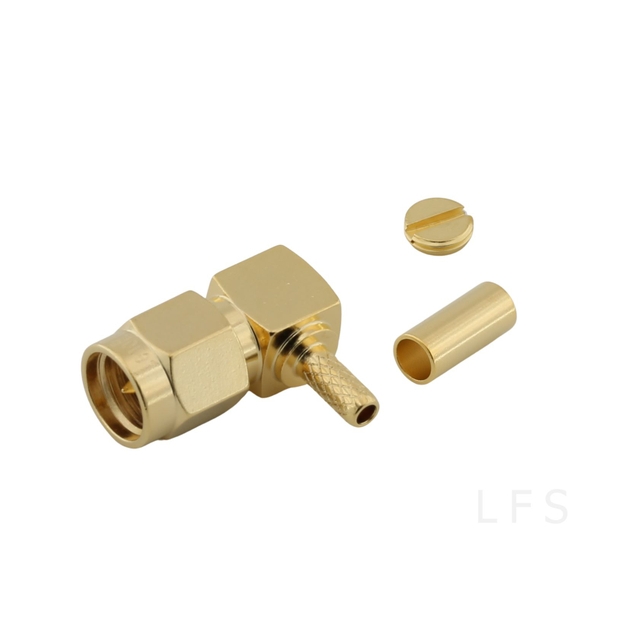

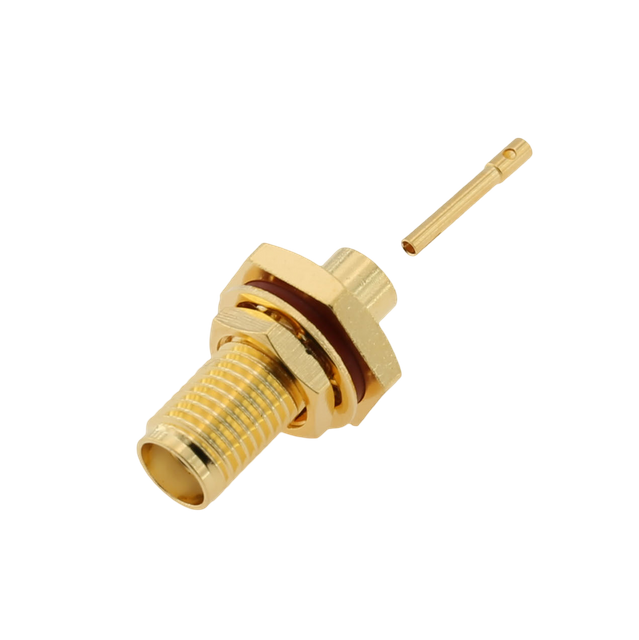

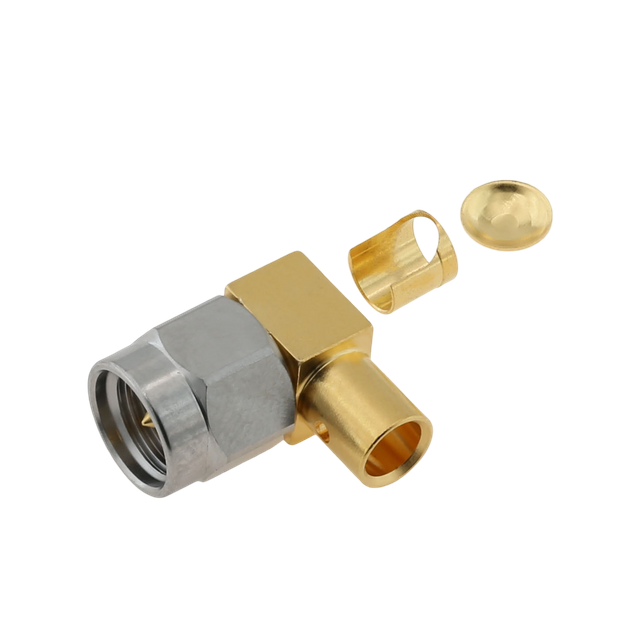

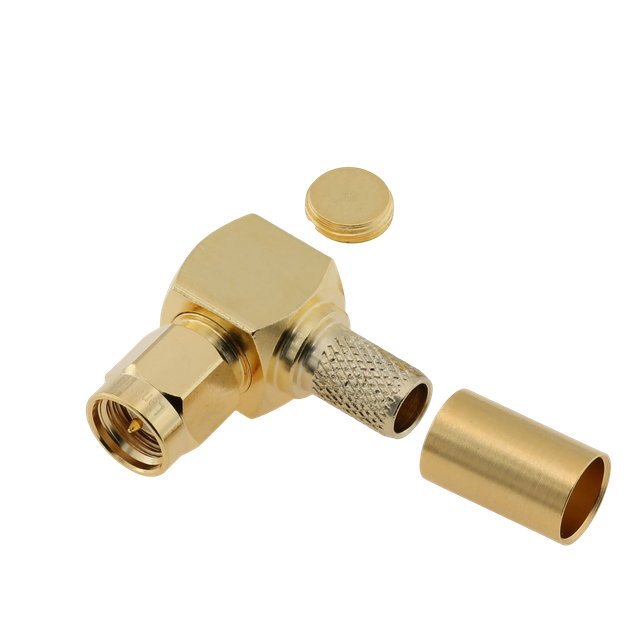

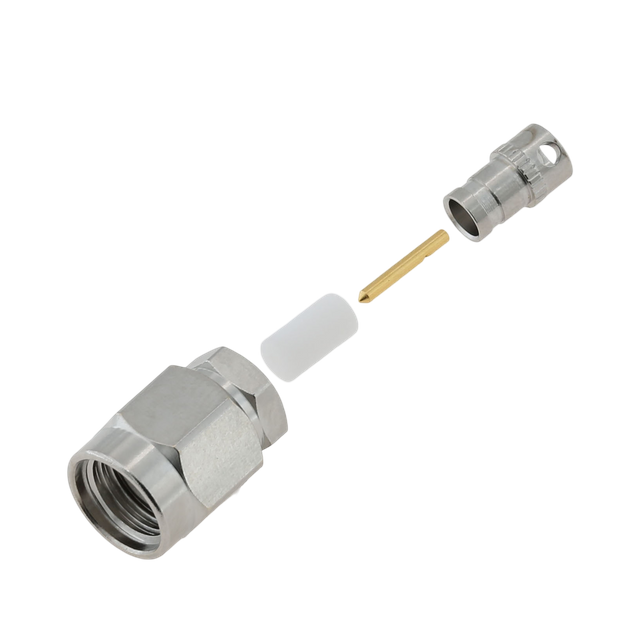

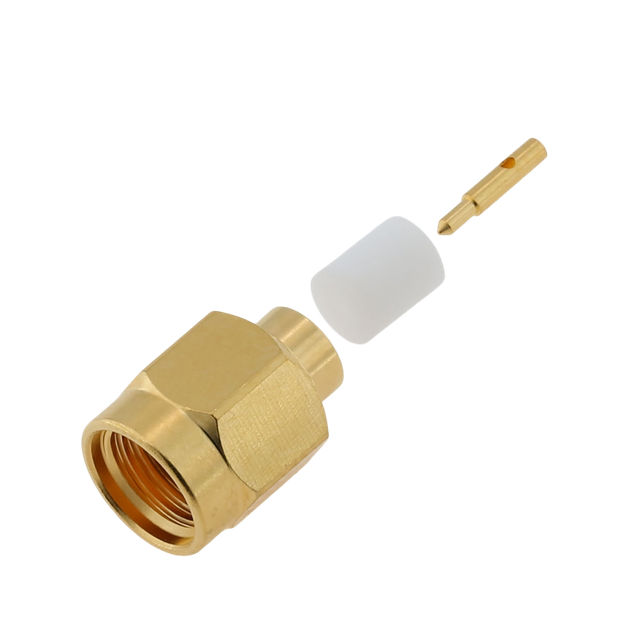

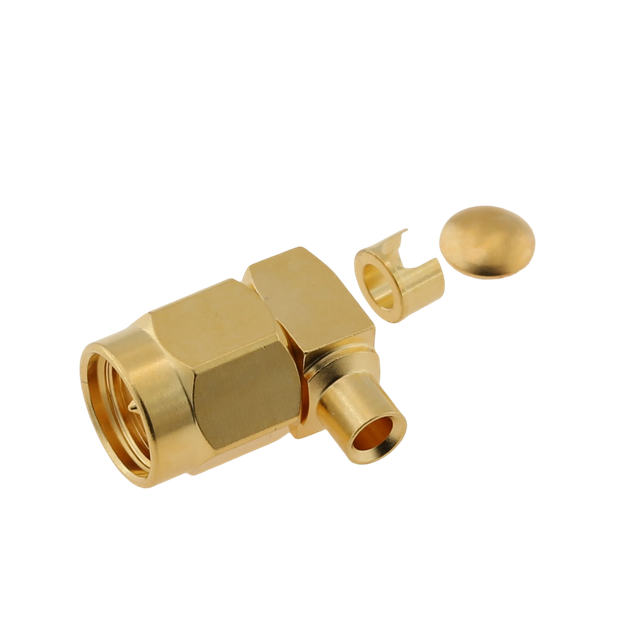

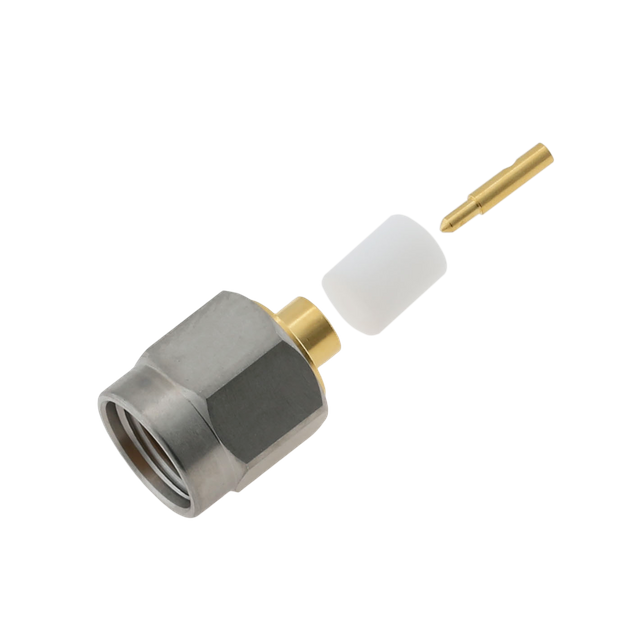

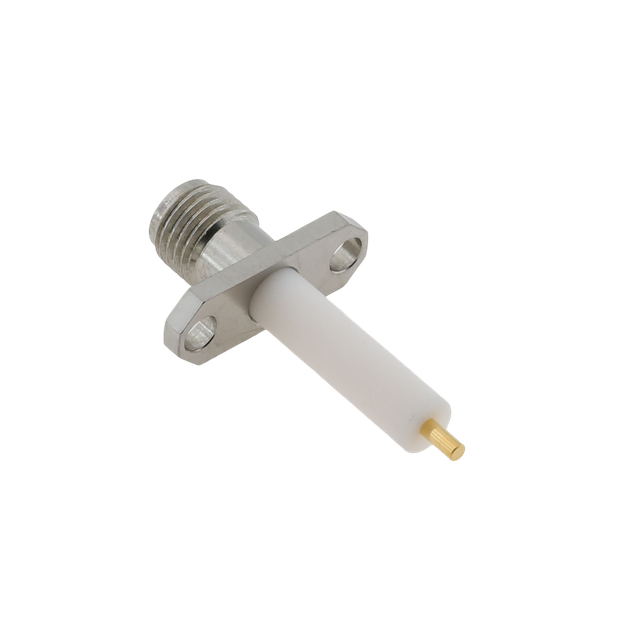

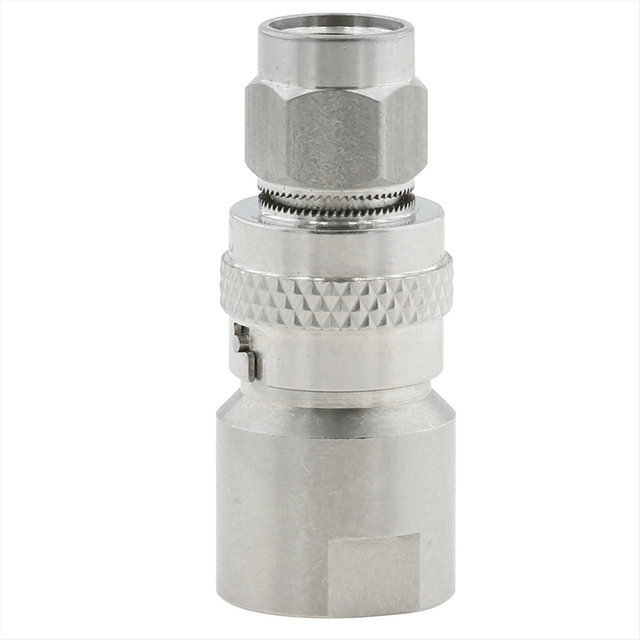

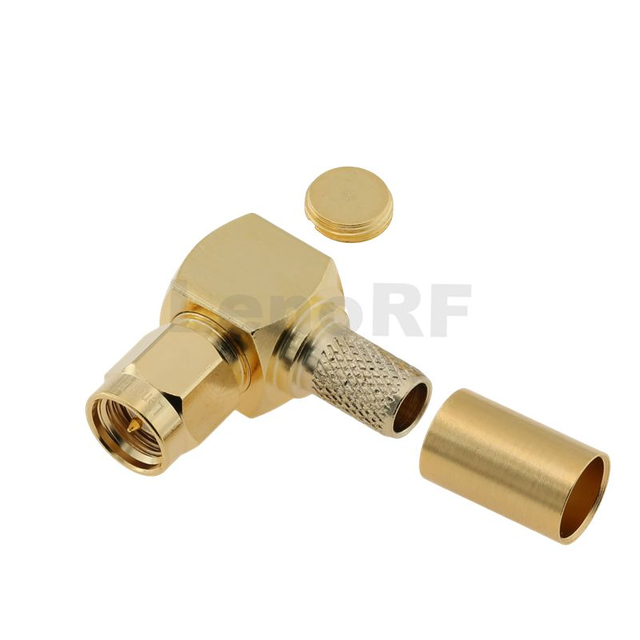

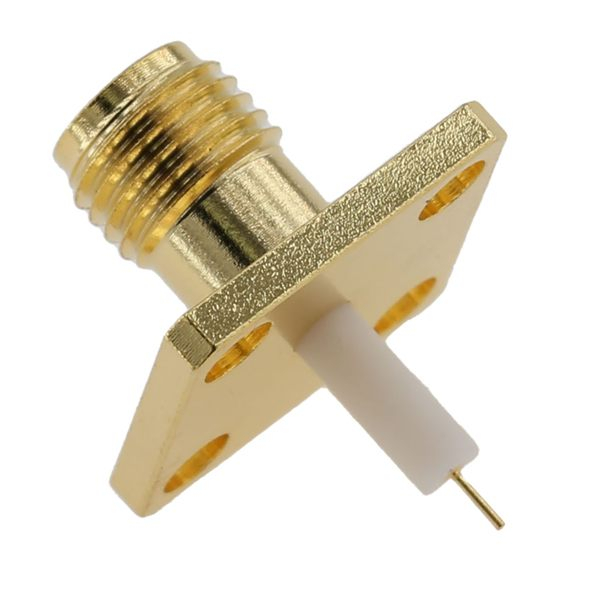

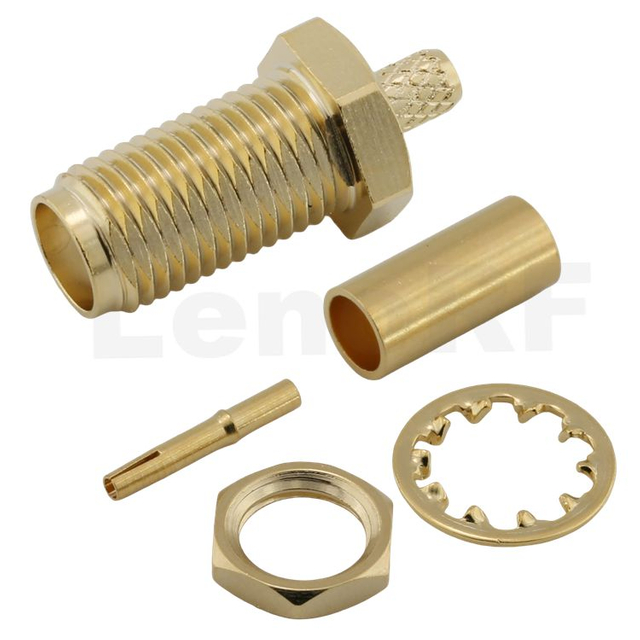

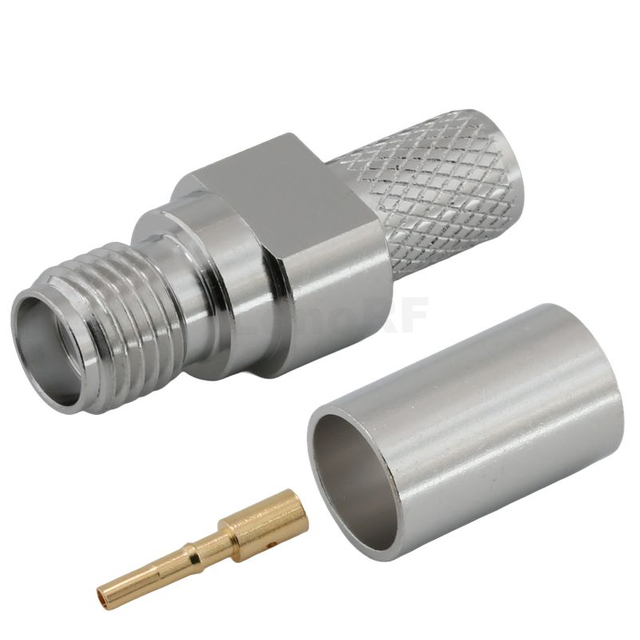

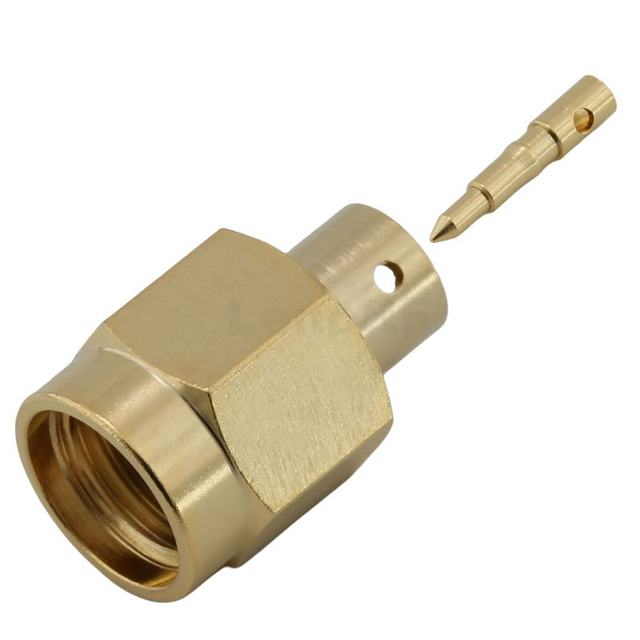

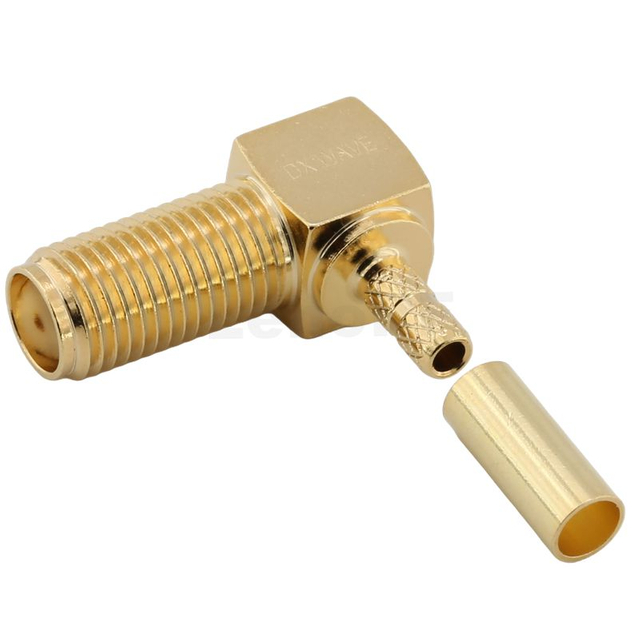

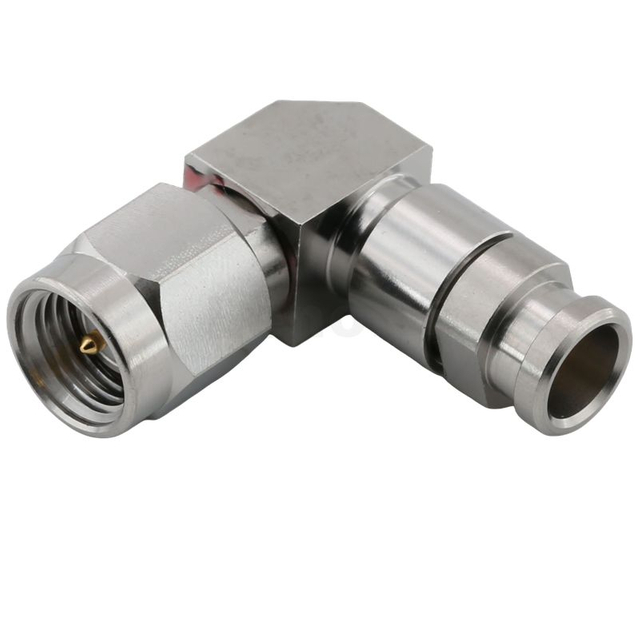

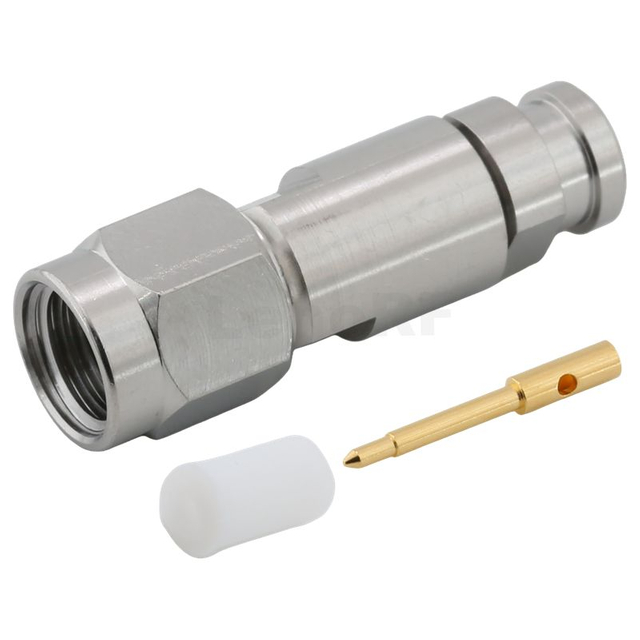

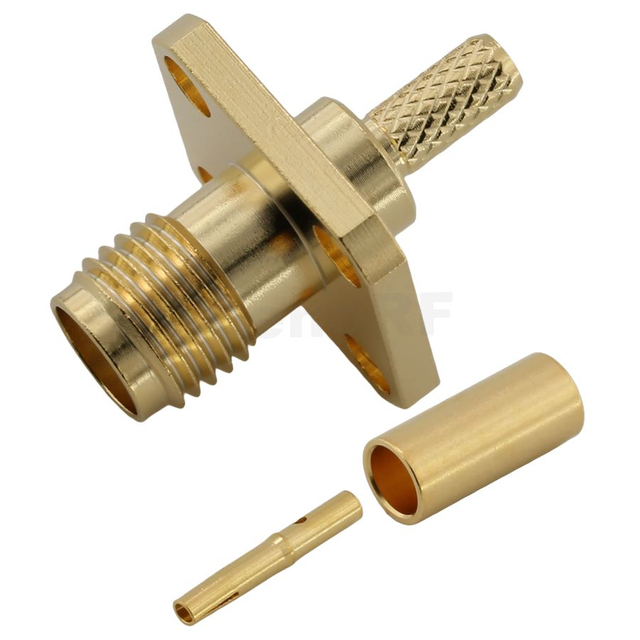

There are several different types of SMA connectors, including SMA male and SMA female connectors, as well as straight ,right-angle, flange mount, bulkhead mount, connectors. SMA connectors are also available in a variety of different lengths and configurations to suit different applications.

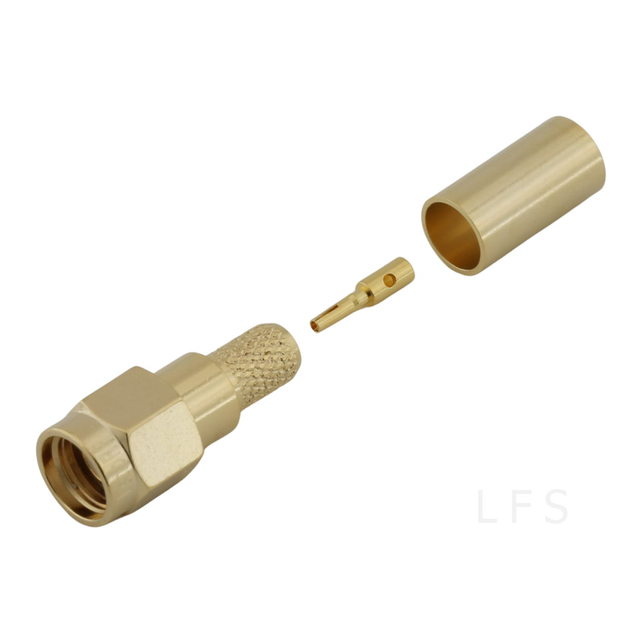

SMA connectors are also available in RP- male SMA and RP-female SMA versions. The RP(reverse polarization) connector commonly used for antenna application to secure the connection.
Features:
Thread coupling mechanism

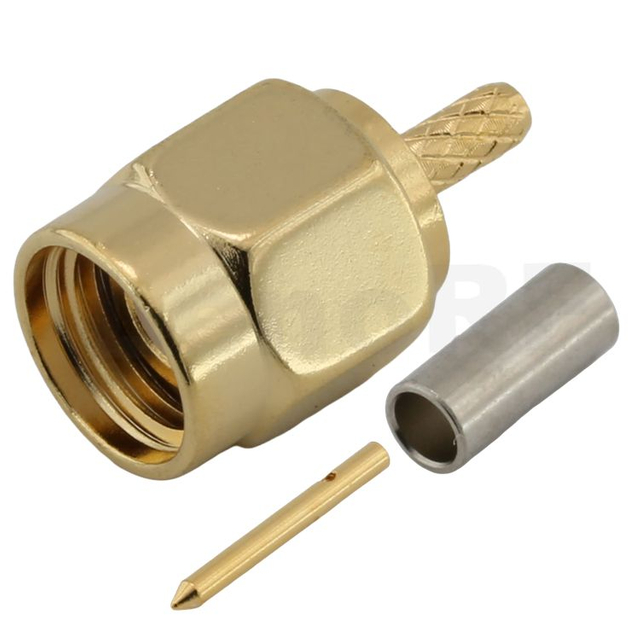

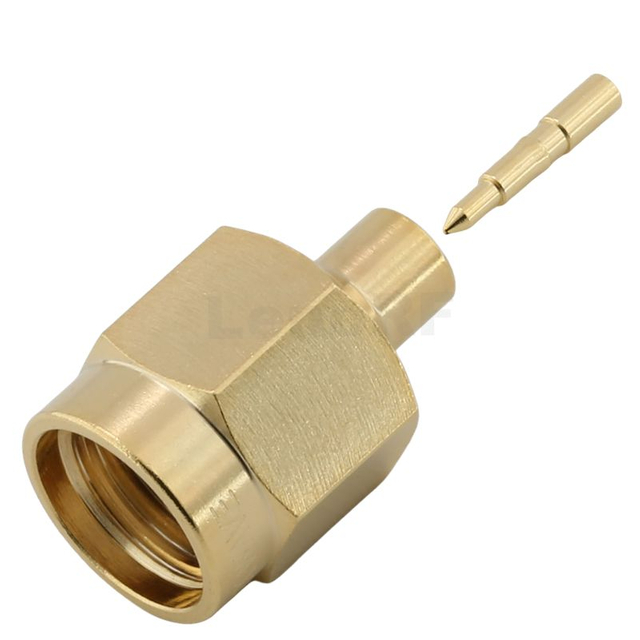

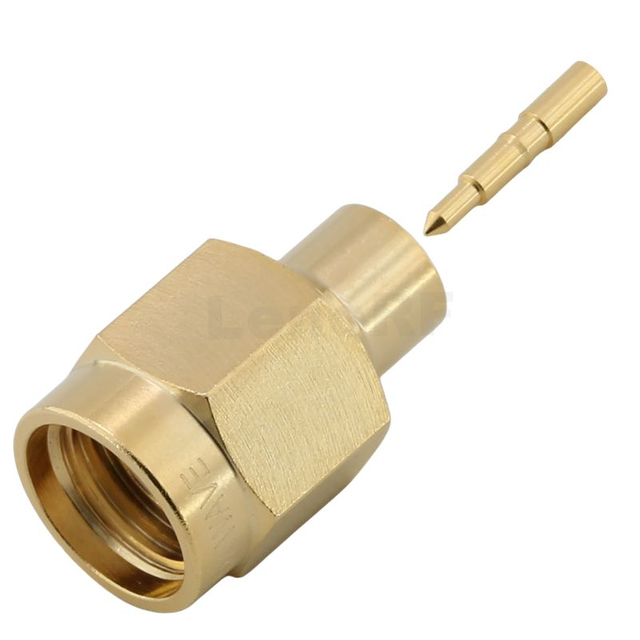

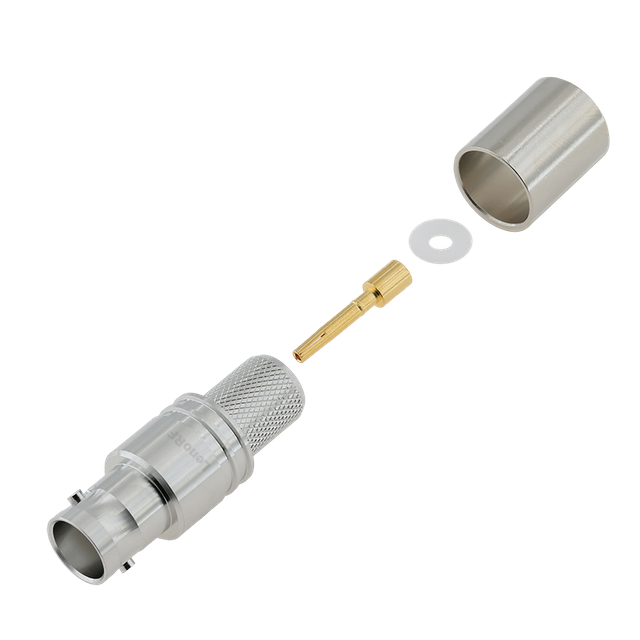

Crimping or soldering contact

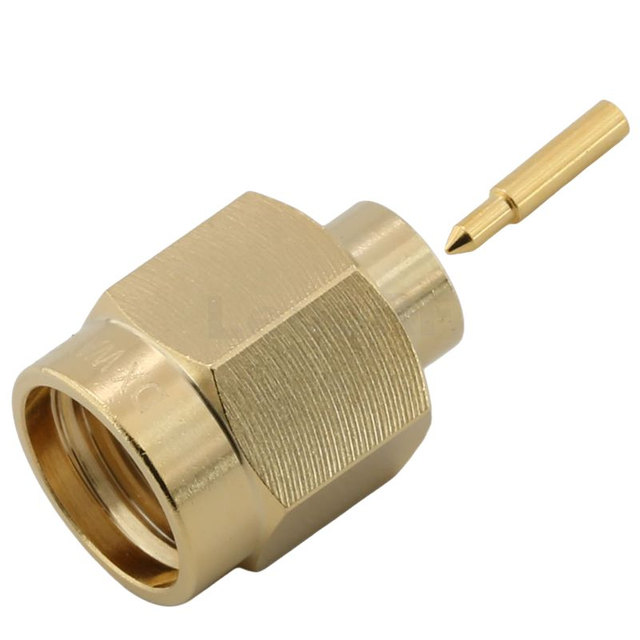

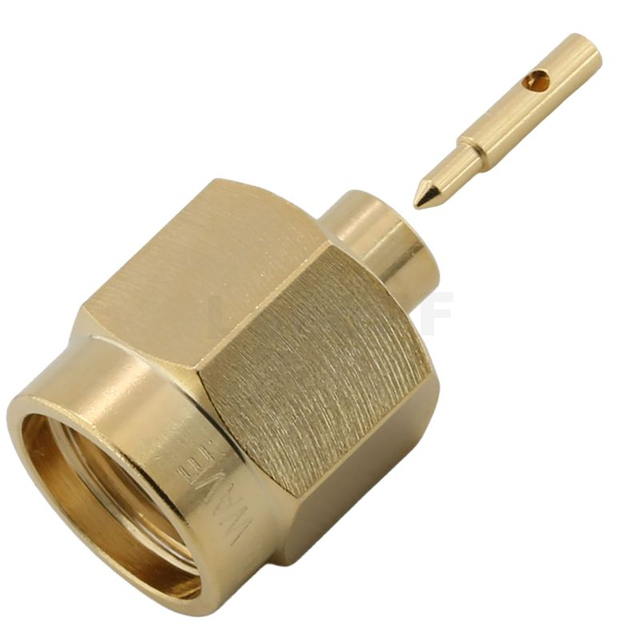

50 impedance up to 18GHz
Light weight,compact design
Anti-vibration performance

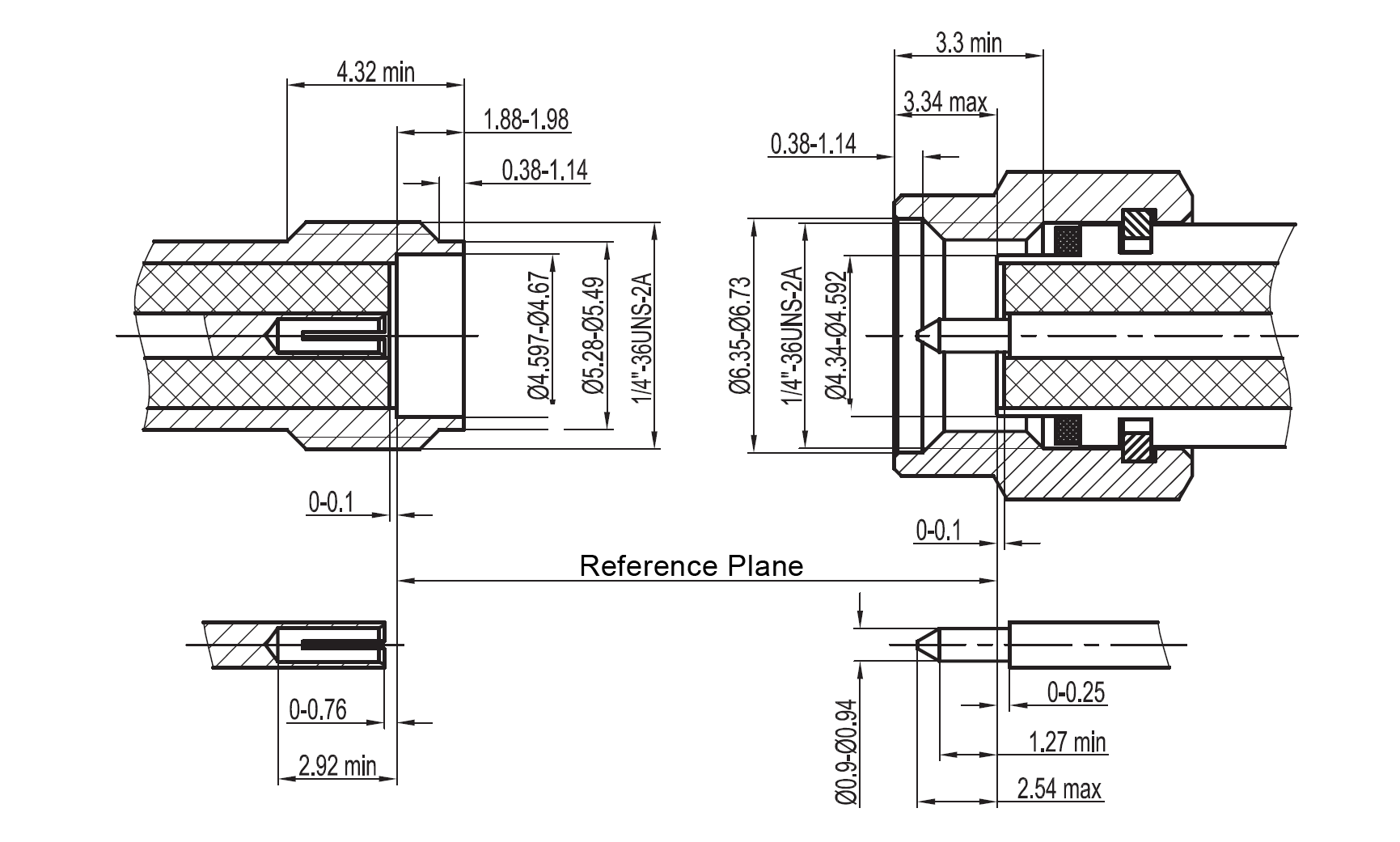

Interface Dimension:
Specification Of SMA Connector
| Electrical |
|
| Impedance | 50 Ohm |
| Frequency Range | DC - 18 GHz |
| Return loss | ≥ 30 dB Typical |
| Insertion loss | ≤0.04 dB x √f GHz |
| Voltage Rating | 500 Volts RMS Continuous |
| Dielectric Withstanding Voltage | 1500 VRMS Max |
| Insulation Resistance | ≥ 5000 MΩ Min |
| Center Contact Resistance | ≤3 mΩ Max |
| Outer Contact Resistance | ≤2 mΩ Max |
| RF Leakage | -100 dB Max (DC-1GHz) |
| Power Handling | 200 W @ 2 GHz @ 25ºC |
| Environmental |
|
| Temperature Range | −65°C to +165°C |
| Thermal Shock | MIL-STD-202, Method 107 (Test Condition B) |
| Corrosion | MIL-STD-202, Method 101 (Test Condition B) |
| Vibration | MIL-STD-202, Method 204 (Test Condition B) |
| Mechanical Shock | MIL-STD-202, Method 213 (Test Condition I) |
| Moisture Resistance | MIL-STD-202, Method 106 |
| Altitude | MIL-STD-202 Method 105 (Test Condition C) |
| Mechanical |
|
| Mating Cycles | 500 Min |
| Coupling Mechanism | Threaded |
| Interface Specification | MIL-STD-348, IEC 61169-15, MIL-PRF-39012, CECC 22210 |
| Mating Torque | 0.8 Nm to 1.1 Nm |
