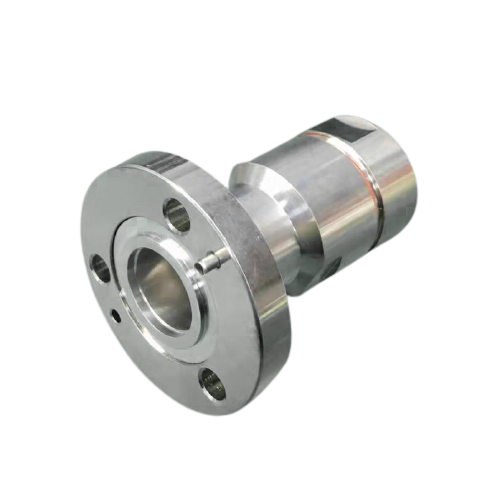

EIA RF Connector RS-225 7/8" Flange For 7/8" Superflexible Cable

EIA RF Connectors are used to connect two coaxial transmission lines of high power radio frequency stiff or semi-rigid (flexline). These are often only required in very high-power transmission facilities (10s of kW to MW) with feedline sizes of several inches. The male connection, or bullet, is on one side of the connector, while the female connection, or cup, is on the other. The Electronic Components Industry Association, also known as the EIA, is in charge of a variety of standard imperial connection sizes. The International Electrotechnical Commission publishes the appropriate International standards: IEC 60339-1 and IEC 60339-2. RF Connectors described by the US military in MIL-DTL-24044 are compatible with several of these sizes.
  • 25-044
  • EIA.6051.048
  • Male
  • Straight
  • Clamping
  • Crimping
  • 7/8" Super Flexible cable
Availability:
Quantity:
Materials&Electroplating
ConductBrass/     Silver or Golden Plating
InsulatorPTFE
BodyBrass     /Ternary or nickel or silver
Other PartsBrass/     Nickel Plating
Electric Performance
Impedance50     OHMS
Frequency Range0-3GHz
VSWR≤1.30
Rating Voltage500V
Environmental
Temperature Rating-65°C     to +165°C
Corrosion (Salt Spray)MIL-STD-202,     Method 101, Condition B
VibrationMIL-STD-202,     Method 204, Condition D, 20 Gs
ShockMIL-STD-202,     Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202,     Method 107. Cond. B, -65°C to +125°C
Moisture ResistanceMIL-STD-202,     Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202,     Method 105, Condition C, 70k Ft.
