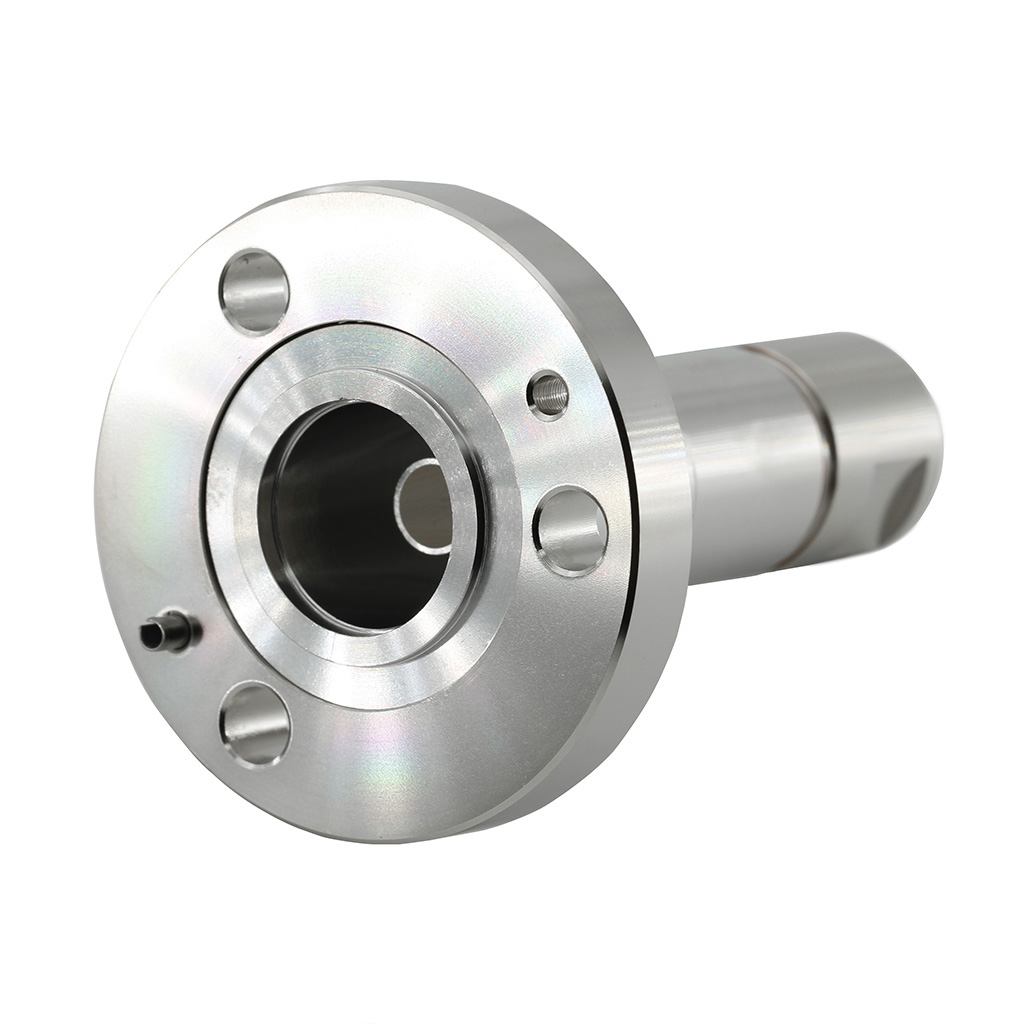

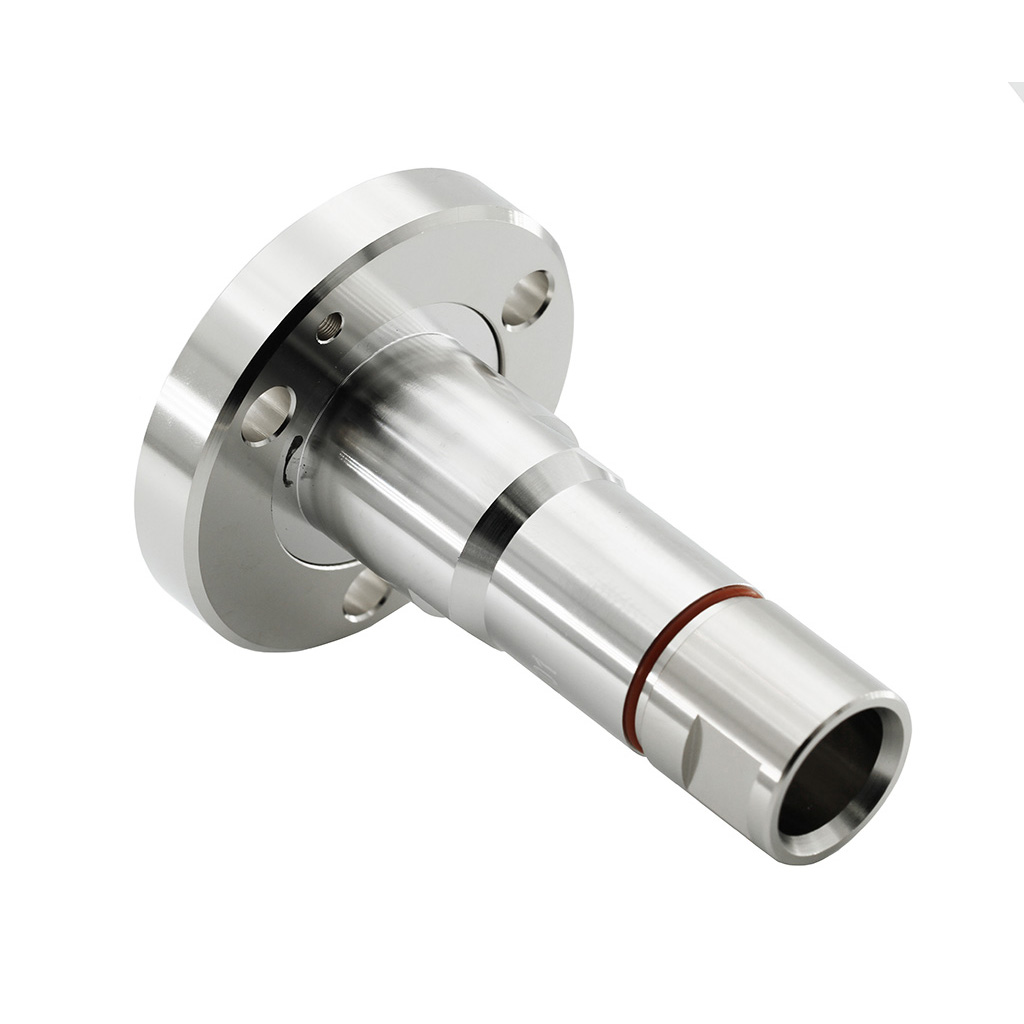

EIA RF Connector RS-225 7/8" Flange For 1/2" Superflexible Cable

EIA RF Connectors are used to connect two coaxial transmission lines of high power radio frequency stiff or semi-rigid (flexline). These are often only required in very high-power transmission facilities (10s of kW to MW) with feedline sizes of several inches. The male connection, or bullet, is on one side of the connector, while the female connection, or cup, is on the other. The Electronic Components Industry Association, also known as the EIA, is in charge of a variety of standard imperial connection sizes. The International Electrotechnical Commission publishes the appropriate International standards: IEC 60339-1 and IEC 60339-2. RF Connectors described by the US military in MIL-DTL-24044 are compatible with several of these sizes.
  • 25-001

  • EIA.6051.018

  • Male

  • Straight

  • Clamping

  • Crimping

  • 1/2" Super Flexible cable

Availability:
Quantity:

Materials&Electroplating
ConductBrass/Silver or Golden Plating
InsulatorPTFE
BodyBrass/Ternary or nickel or silver
Other PartsBrass/Nickel Plating
Electric Performance
Impedance50 ohms
Frequency Range0-3GHz
VSWR≤1.30
Rating Voltage2100V
Environmental
Temperature Rating-65°C to +165°C
Corrosion (Salt Spray)MIL-STD-202,     Method 101, Condition B
VibrationMIL-STD-202,     Method 204, Condition D, 20 Gs
ShockMIL-STD-202,     Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202,     Method 107. Cond. B, -65°C to +125°C
Moisture ResistanceMIL-STD-202,     Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202,     Method 105, Condition C, 70k Ft.


FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The Quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.


6. MOQ

Regular connector: 500PCS.

Adaptor:100PCS

Military connector:100PCS


7. Materials

The popular material is brass,stainless steel for body, PTFE,PEEK for insulator,

brass, phosphor bronze, beryllium copper for contact, as well as aluminum,titanium alloy.


Application:

Telecommunication,Military,Broadband,Industry,Medical,5G,Radar,Aerospace.
