The N-type connector is a small and medium power connector with a threaded connection mechanism, which has been widely used in the modern communications industry. Therefore, the N-type connector has played a huge role in the industrial transformation of the new era.

What are N-type connectors?

What is the difference between N male and N female RF connectors?

What is the function of N-type connectors?

What are N-type connectors?

The N-type connector was first used in the US Navy, so it was named after the first letter of the Navy (NAVY). N-type connector and SMA, BNC connector are the longest and most used connectors. Due to the wide application of 3G, it has been further used in communication. The impedance is 50 ohms. Due to its wide use, Derived from the 75-ohm N-type connector, the domestically launched L16-type connector has the same structure as the N-type, except that the connecting thread is changed to M16, which is a bit different from the N-type thread 5/8-24UNEF and cannot be interconnected.

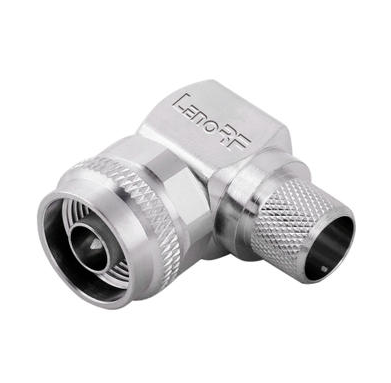

N-type connector

What is the difference between N male and N female RF connectors?

Type N connector is a threaded connection and can be rotated and locked. It is one of the first connectors that can be used to transmit microwave frequency signals. It was invented by Paul Neill of Bell Laboratories in the 1940s, so it was named after Neill's initials. The signal frequency range supported by the N-type connector is 0 to 18 GHz. There are two types of characteristic impedance, 50 ohms are widely used in mobile communications, wireless data, paging systems, etc., and 75 ohms are mainly used in cable television systems. According to its structure and application, it is divided into N male and N female.

How to distinguish between N male and N female RF connectors? Teach you to know the difference between N male and N female RF connectors. From the structural point of view, the thread of Male N male head is inside, and the inside is a pin needle; Female N female head is threaded outside, and the inside is a hole. The center conductor of the male connector is processed to have a shoulder, and the connecting part has a tapered head, which is convenient for connection; the center conductor of the female connector is available in the slot and slot type. In use, N male and N female are paired, and the PIN size of the male is within the index, which matches well with the male and female.

What is the function of N-type connectors?

1. N-type connectors can be used in the area of wireless, telecommunication systems, outdoor RF cable, instrumentation, waveguide transmission system.

2. But the connectors used for jumpers are only N head and DIN head. Other types of joints are mainly used on flexible wires and semi-rigid wires.

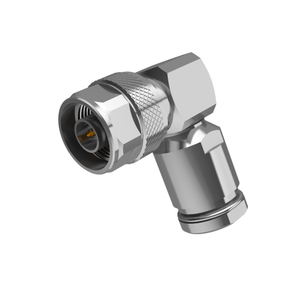

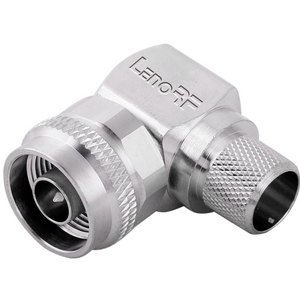

3. There are two types of N head, straight head and elbow head, the diameter of the cable that can be connected is from 2.6 to 24mm. In addition, there are N-type adapters, attenuators, etc.

The N-type connector is an important component in the communication industry, and its quality determines the quality of communication equipment. Therefore, it is indispensable to attach importance to the quality of the connector. A good product starts with the best engineering staff, and LenoRF is always ready to help you meet your technical requirements. Create a 24-hour engineering and development environment that runs concurrently with your manufacturing operations.
