A SMA connectors are utilized in wireless communication and microwave instrumentation, whereas MCX connectors are used in mobile phones and other portable electronic devices. SMA connectors are more durable and can endure high amounts of vibration, but MCX connectors are smaller and cheaper.
-
A Depending on the particular application and model of connector, the length of a SMA connector might change. SMA connectors are often rather small, and their length is typically measured in millimeters. A standard SMA connector has a length around of 12~14 mm. Nevertheless, depending on their design and the particular purpose they are used for, certain SMA connections may be shorter or longer.
-
A The particular application you're using will determine whether you require SMA or RP-SMA connections.
Microwave applications frequently employ SMA connectors (SubMiniature version A), a type of RF connector. They generally operate at frequencies up to 18 GHz and include a distinctive screw-type connection mechanism. Devices like wireless routers, cell phones, and other items that employ radio frequency technology frequently use SMA connections. An alternative to SMA connections are RP-SMA connectors (Reverse Polarity SMA).
-

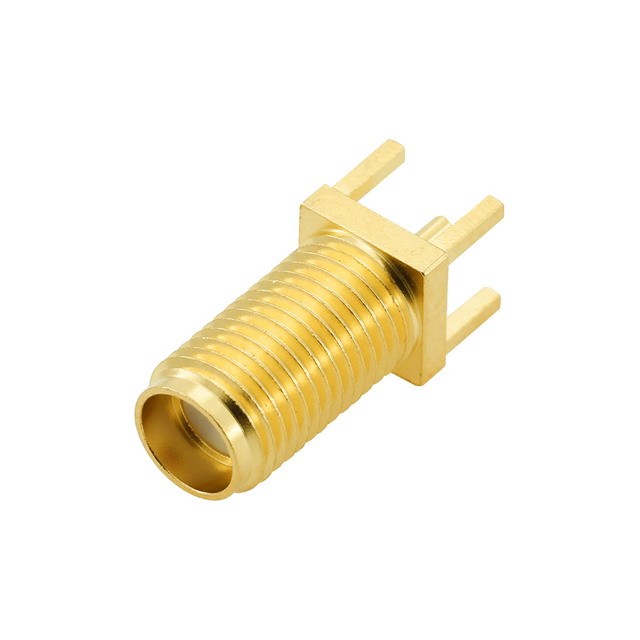

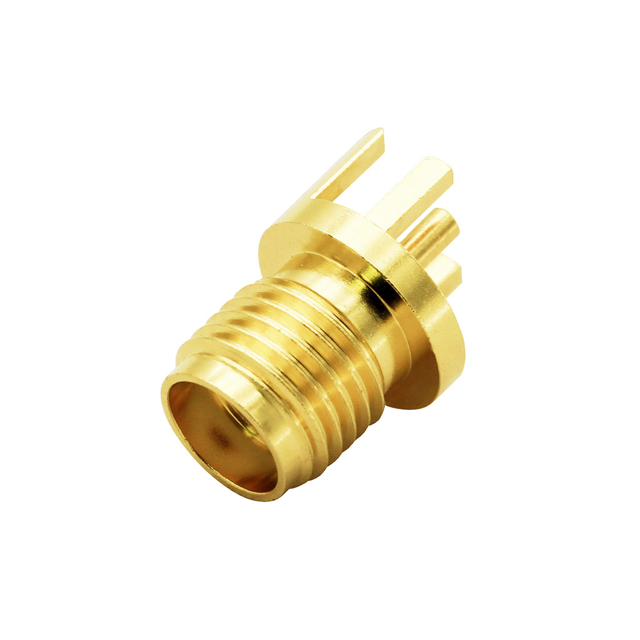

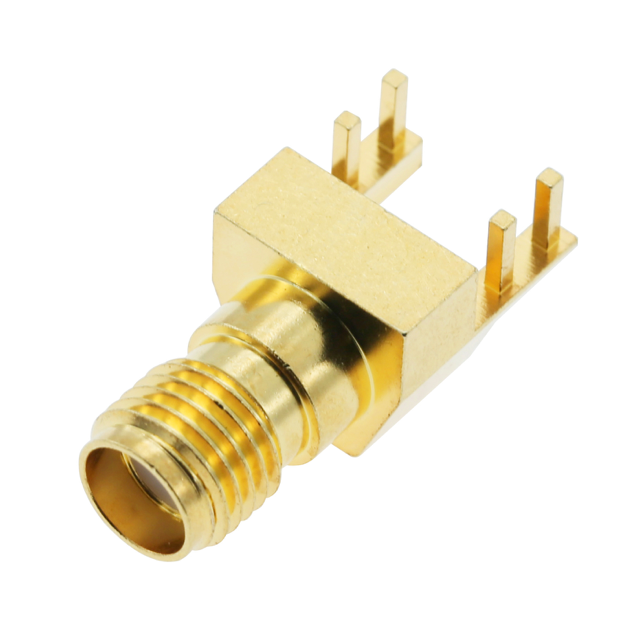

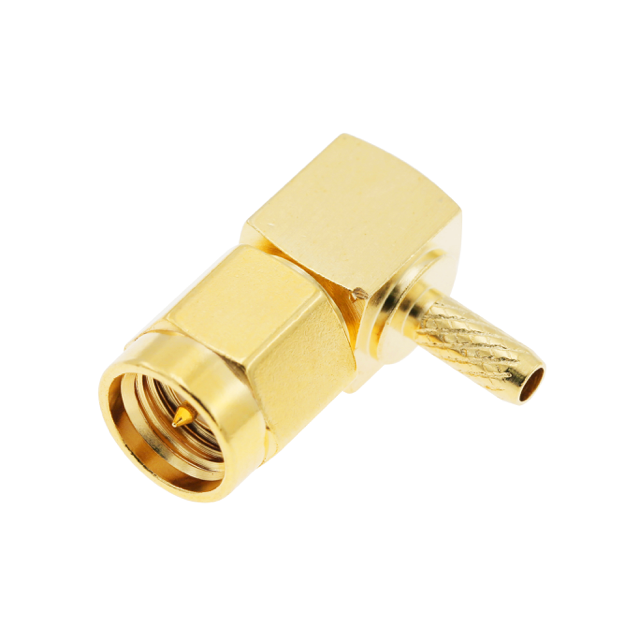

A SMA connectors come in different sizes and their size is determined by various factors such as orientation, termination type, cable type, and panel mounting. The orientation of the connector, whether straight, right-angle, or 45-degree angle, can affect the size. The termination type, such as cable clamp, cable crimp, cable solder, PCB end launch, PCB surface mount, or PCB through hole, also affects the size. The type of cable used, whether thin or thick, also affects the size. Lastly, the panel mounting, such as 2-hole flange, 4-hole flange, bulkhead for front mount, or bulkhead for rear mount, also affects the size.
-
A SMA cable may be extended using a SMA extension cable or a SMA adapter. SMA extension cables typically have the same connectors on both ends as standard SMA cables, allowing you to connect the cable to a device and then extend it to a distant location using a SMA in series adapter. For instance, if you have a 1 meter cable and need to extend it to 3 meters, you would need a SMA plug to plug in a 2 meter cable and a SMA jack to jack adapter to connect two cables.
-
A SMA connectors are typically made of a combination of different materials, to control the cost of product precisely, we choose the variety materials for SMA parts.The materials used are determined by the needs and application scenarios of the clients. Consumer clients, for example, require low-cost solutions. We can use brass solutions for the body, nut, pin, and socket, and PTFE for the insulator. For military and laboratory applications, we can utilize stainless steel body and nut, brass pin, beryllium copper socket, and PEEK insulator.
-
A SMA connectors are a type of coaxial connector that was developed in the 1960s for use in high-frequency microwave and millimeter-wave applications. They are named for their screw-type mating mechanism, which allows for a secure connection between two SMA connectors. SMA connectors are commonly used in a wide range of applications, including telecommunications, networking, military and aerospace, medical equipment, and more.
-
A SMA connectors have a screw-on mechanism and are known for durability, the working frequency can up to 26.5GHz, while SMB connectors have a push-on mechanism and plug and pull easily,the working frequency is up to 4 GHz with extended to 10GHz.
-
A According to IEC60169-15 standard, The SMA connectors are designed for 50 ohms systems. SMA connectors are typically used in RF and microwave applications, and a 50 ohms impedance is the standard for these types of systems because 50 ohms balance the best power handling and signal loss. The SMA Connector widely assembly with RG series, LMR series 50 ohms coaxial cables.
Type N, BNC, TNC,MCX,F Connectors have 75 ohms version which usually utilized for broadcast industry.
