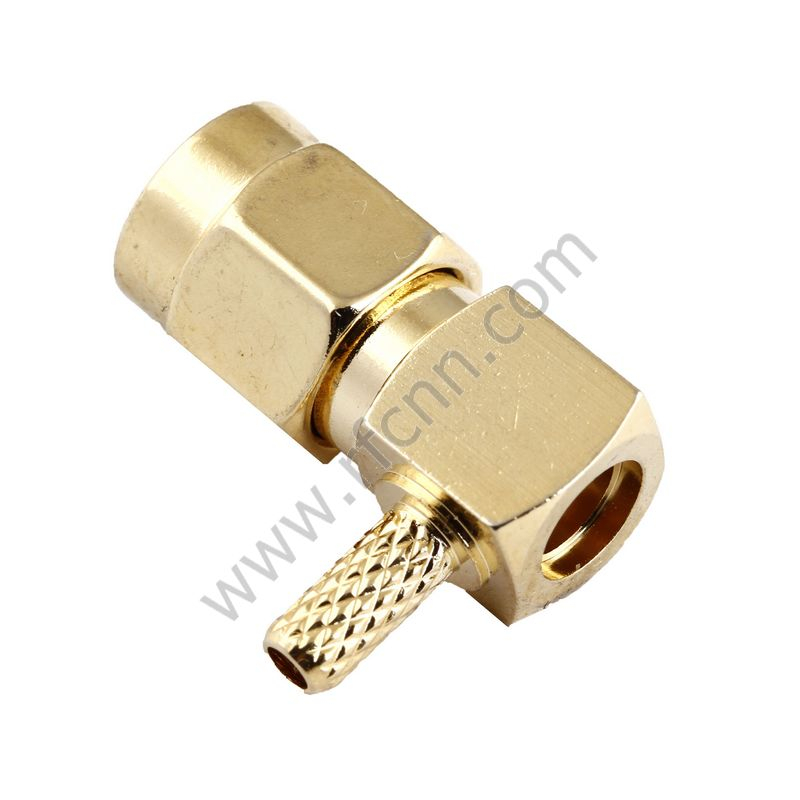

SMA Connectors Male Crimp Right Angle For RG316 Cable

LenoRF SMA coaxial connectors are high-quality and reliable. For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors have a preset maximum torque. The butted outer contact provides for exceptional frequency ranges of up to 18 GHz with less than 30 dB return loss. SMA connectors are widely used in RF applications, such as telecommunications and mobile communication, as well as test and measurement instruments and equipment.
  • SMA121RA-316

  • Male

  • Right angle

  • Crimping

  • Crimping

  • RG316

Body   PlatingGold
Body MaterialBrass
Cable TypeRG316
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder   Crimp
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)9
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationRight Angle
Size CategorySubminiature
Temperature Range-65   -165 °C
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
