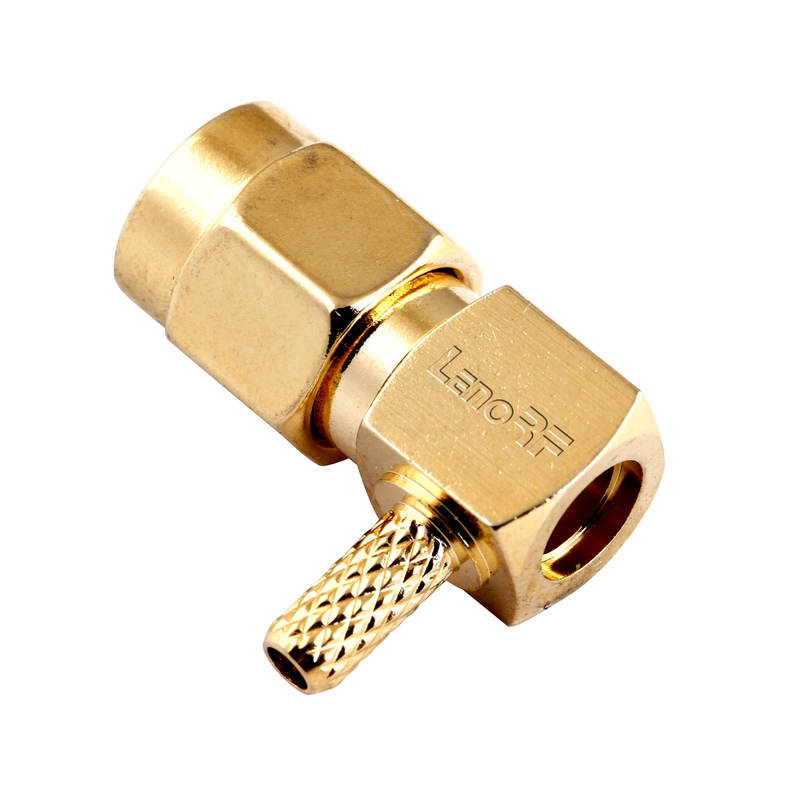

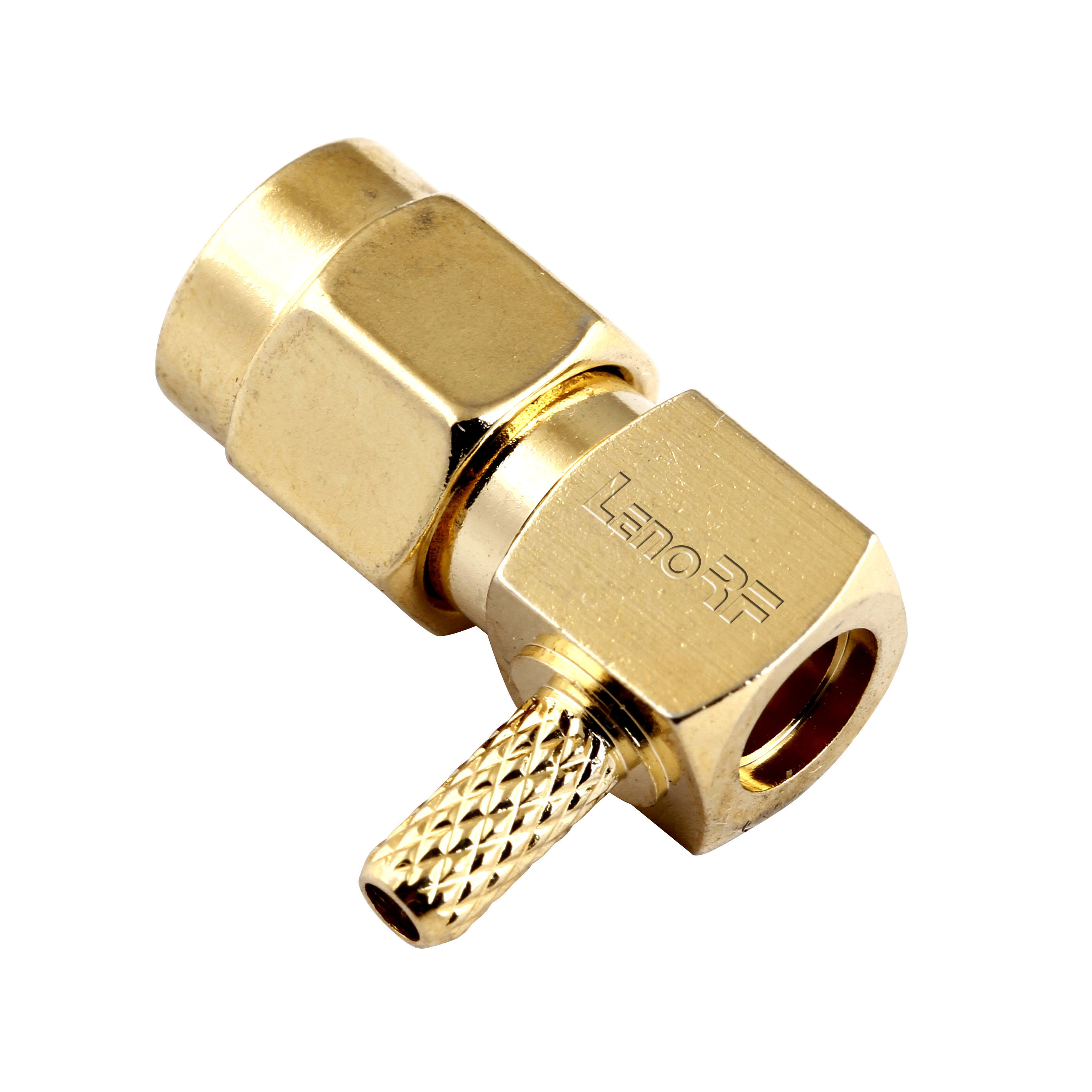

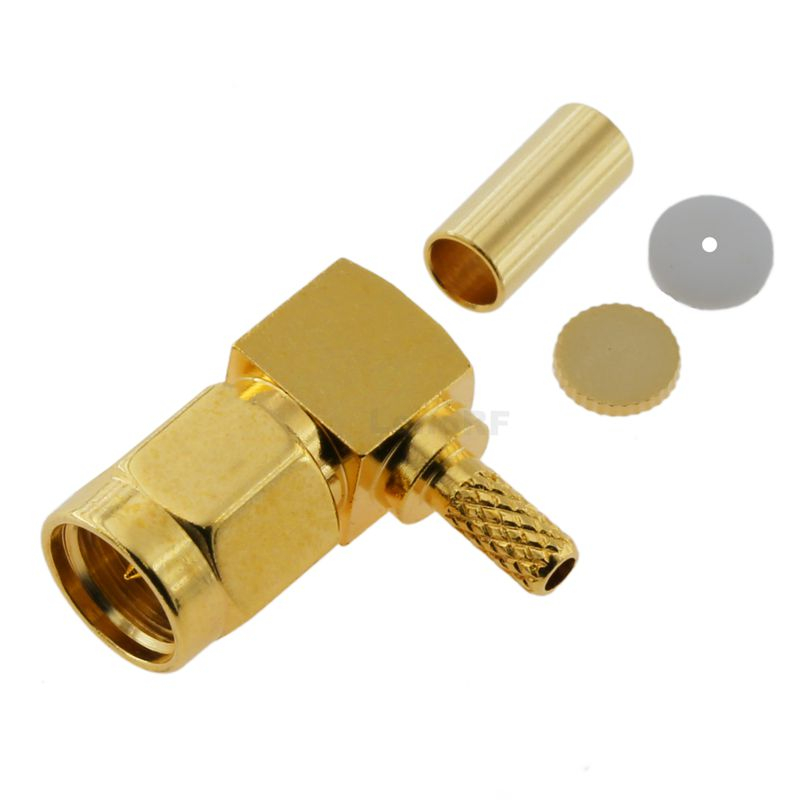

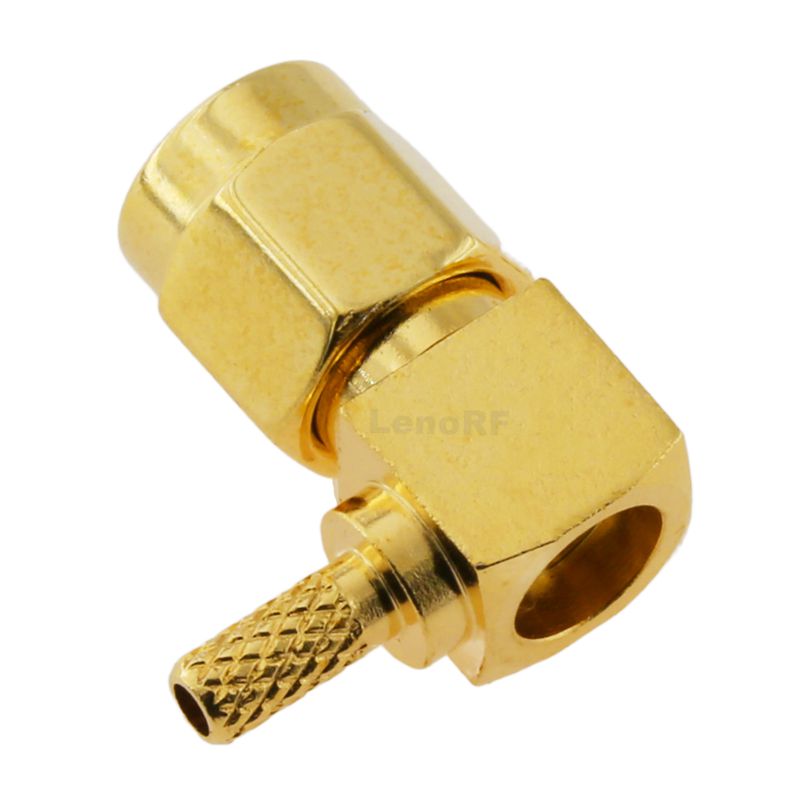

SMA Connector Plug Right Angle Crimping For RG316 Cable

LenoRF SMA coaxial connectors are high-quality and function well. These screw-on locking connectors with a fixed maximum torque provide great reliability, extended service life, excellent mechanical stability, and superb electrical qualities. The butted outer contact provides good frequency ranges up to 18 GHz with 30 dB return loss. SMA connectors are utilized in a range of RF applications, including telecommunications and mobile communication, as well as test and measurement equipment and instruments.
  • 21-010
  • 89-5160-115-01
  • Male
  • Right angle
  • Crimping
  • Crimping
  • RG316
  • 89-5160-115-01.pdf
  • 89-5160-115-01.stp
Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable Type N/A
Contact PlatingGold
Contact MaterialBrass
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
GenderPlug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationRight   Angle
Panel Mounting FeatureN/A
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StyleCrimping
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
