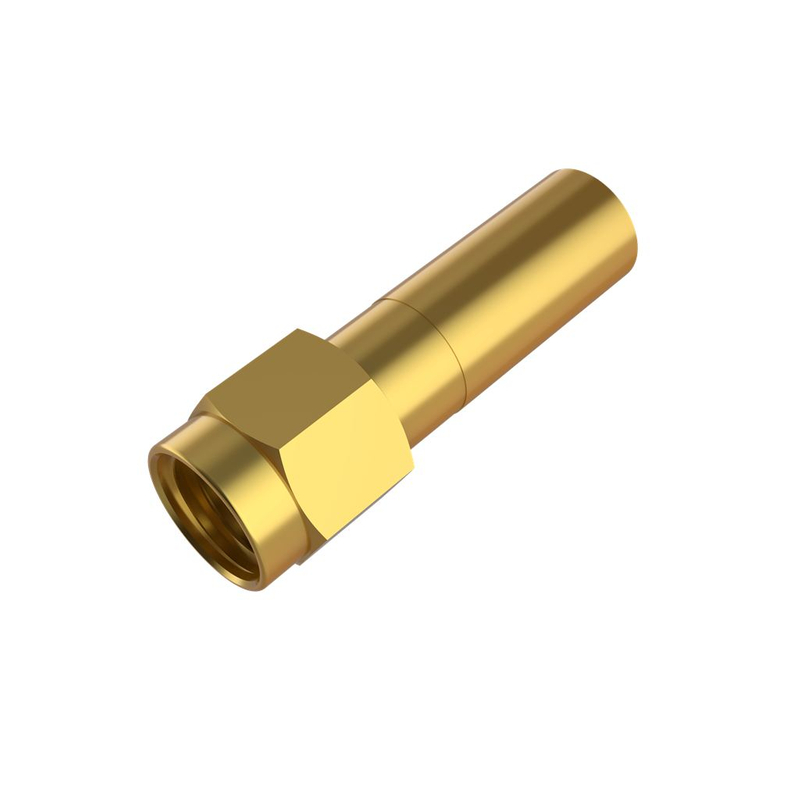

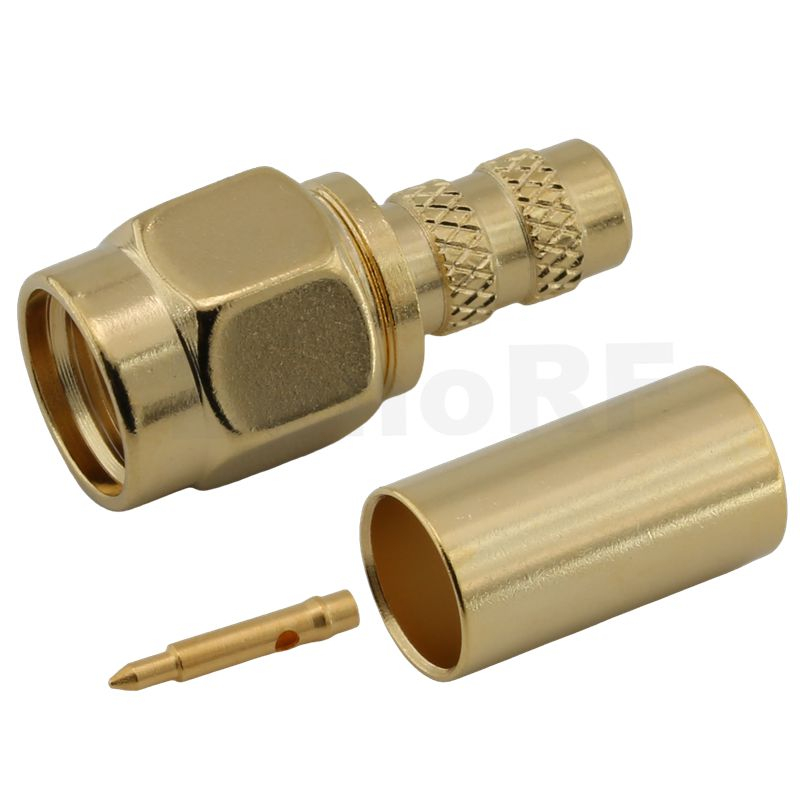

89-5191-111-01
RP Male
Straight
Crimping
Crimping
RG58
Availability: | |
---|---|
Quantity: | |
Body Plating | Gold |
Body Material | Brass |
Cable Type | RG58 |
Contact Plating | Gold |
Contact Material | Brass |
Contact Termination | Crimping |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 12.4 |
Gender | RP Plug |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Panel Mounting Feature | N/A |
Size Category | Subminiature |
Temperature Range | -65 -165 °C |
Termination Style | Crimping/Solder |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
Body Plating | Gold |
Body Material | Brass |
Cable Type | RG58 |
Contact Plating | Gold |
Contact Material | Brass |
Contact Termination | Crimping |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 12.4 |
Gender | RP Plug |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Panel Mounting Feature | N/A |
Size Category | Subminiature |
Temperature Range | -65 -165 °C |
Termination Style | Crimping/Solder |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
