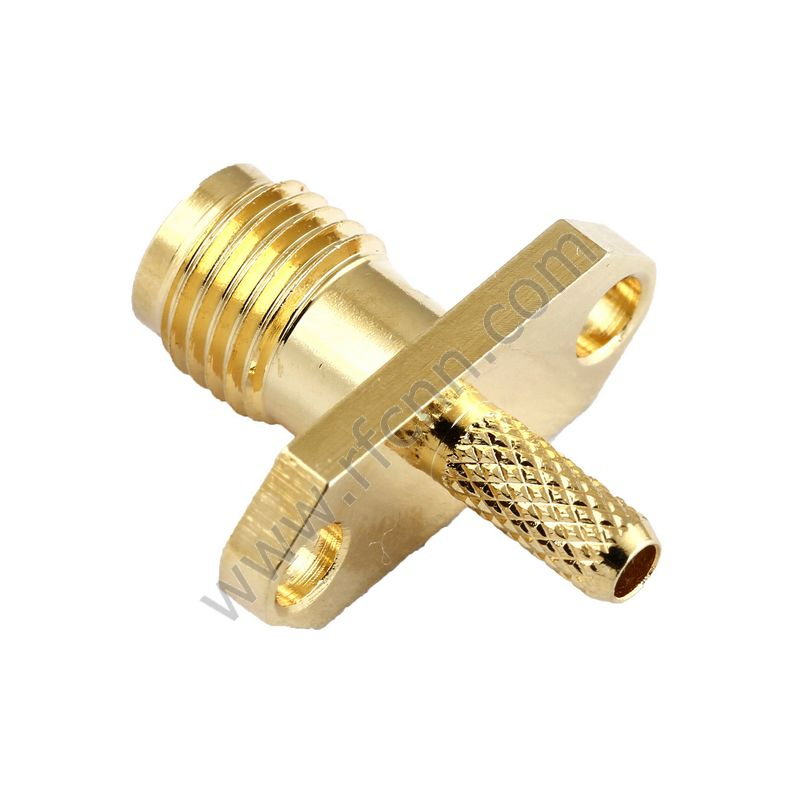

SMA Female Crimp Rectangle Flange For RG316 RF Connector
Product Name:
SMA Female Crimp Rectangle Flange For RG316 RF ConnectorModel No.:
SMA227-316
Product Short Description:
SMA Female Crimp Rectangle Flange For RG316 RF Connector
- Product Description
Part No SMA227-316 Description SMA Female Crimp Rectangle Flange For RG316 RF Connector Connector Series SMA Connector Type Female Contact Termination Solder Shield Termination Crimp Impedance 50 Ohm Mounting Type Rectangle flange Cable Group RG316 Fastening Type Threaded Frequency - Max DC-18GHz Body Material Brass Body Finish Gold Center Contact Material Brass Center Contact Finish Gold Dielectric Material Polytetrafluorethylene (PTFE) Voltage Rating 375V Working Temperature -65°C ~ 165°C
We also make RF Connectors, Cable Assemblies, 7/16 DIN RF Connectors,
N RF Connectors, FAKRA SMB RF Connectors, IPX RF Connectors,
MCX RF Connectors, MMCX RF Connectors, SMA RF Connectors,
SSMA RF Connectors, SMB RF Connectors, SSMB RF Connectors,
SMC RF Connectors, SMZ RF Connectors, TNC RF Connectors,
1.0/2.3 RF CONNECTORS, 1.6/5.6 RF Connectors, BNC RF Connectors,
F RF Connectors, FME RF Connectors, UHF RF Connectors, Mini-UHF RF Connectors, RF ADAPTER, Attenuator of RF Connectors, Terminator of RF Connectors, Surge protector, Microwave Device-Cavity Power Dividing Coupler, Microstrip Power Dividing, Combiner, Bridge.
