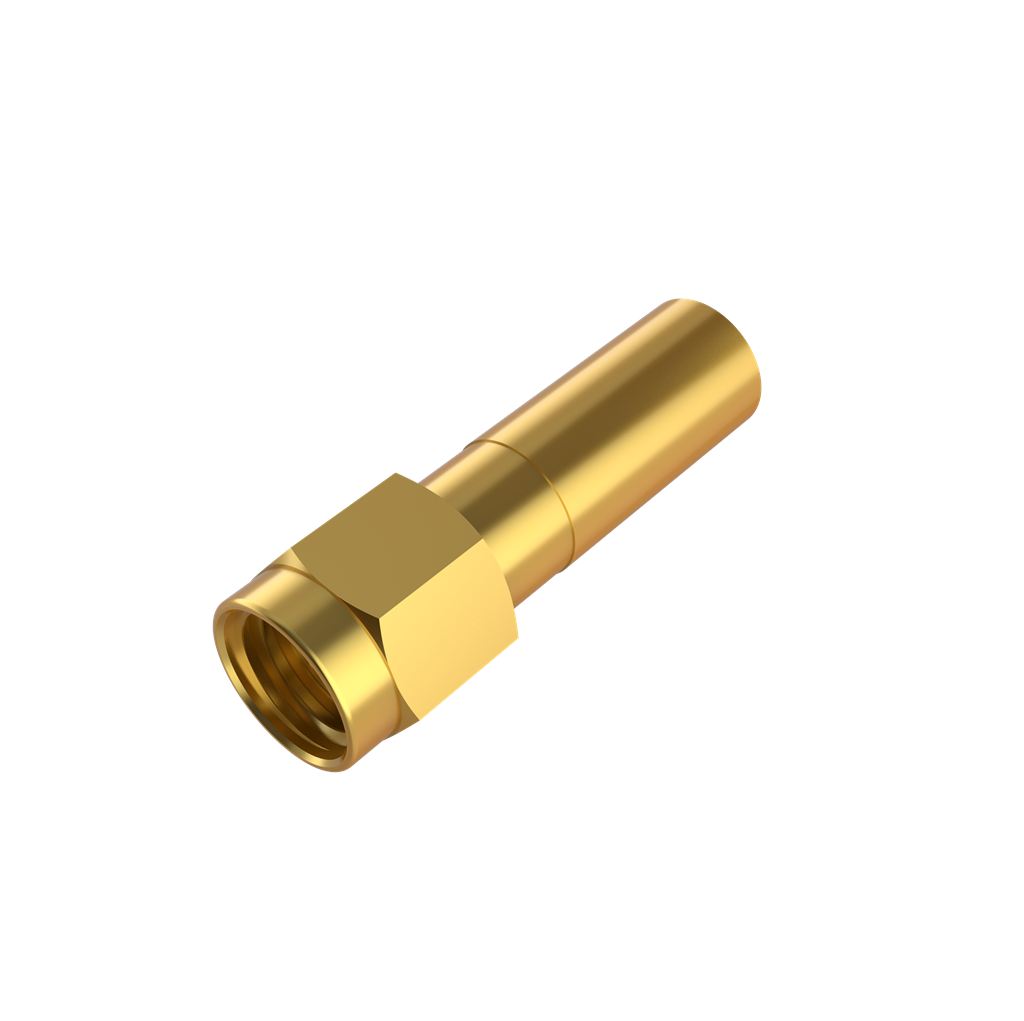

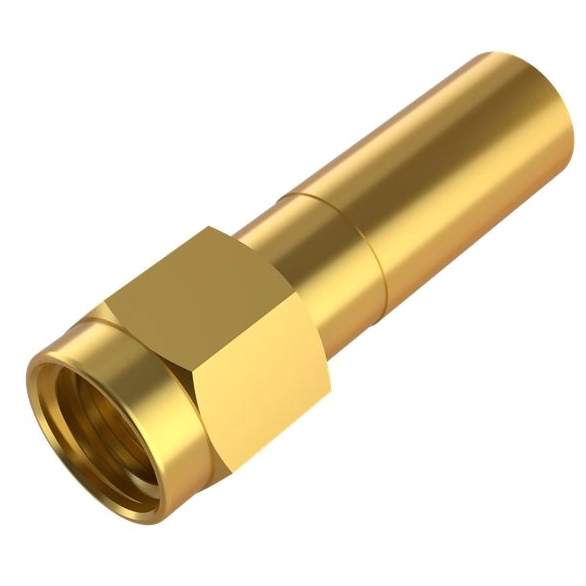

SMA Connector Plug Crimping Straight For RG142 Cable

LenoRF's SMA coaxial connectors are high-quality and reliable. These screw-on locking connectors with a fixed maximum torque provide high reliability, extended service life, great mechanical stability, and excellent electrical qualities. The butted outer contact provides for exceptional frequency ranges of up to 18 GHz and a return loss of 30 dB. SMA connectors are utilized in a wide range of RF applications, including telecommunications and mobile communication, as well as test and measurement instruments and equipment.
  • 89-5161-112-01
  • Male
  • Straight
  • Crimping
  • Crimping
  • RG142
  • 89-5161-112-01.pdf
  • 89-5161-112-01.stp
Body   PlatingGold
Body MaterialBrass
Cable Type RG142
Contact PlatingGold
Contact MaterialBrass
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
Impedance (Ohms)50
Insulator MaterialPTFE
Panel Mounting FeatureN/A
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StyleCrimping/Solder
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
