The N-type connector is a kind of medium and small power connector with a screw connection mechanism. It is suitable for connecting RF cable or microstrip line in RF loop of microwave equipment and digital communication system.

What is the mechanical and electrical performance characteristics of the N-type head?

What are the most common N-type connectors?

What is the function of N-type connectors?

What is the mechanical and electrical performance characteristics of the N-type head?

1. 50 ohm N-type connector

2. Operating frequency: DC to 18 GHz, (some foreign manufacturers divide it into ordinary N-type and precision N-type, and their operating frequencies are ordinary N-type 11GHz, precision N-type 18GHz, and the domestic default is 18GHz)

3. Interface basis: IEC 60169-16

4. Mating thread: 5/8-24UNEF

5. Features: threaded fit is safe, reliable, waterproof, low reflection, medium power capacity

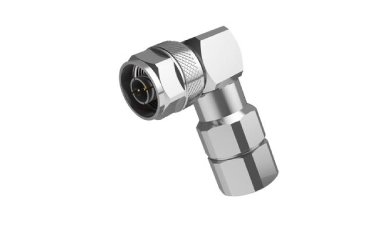

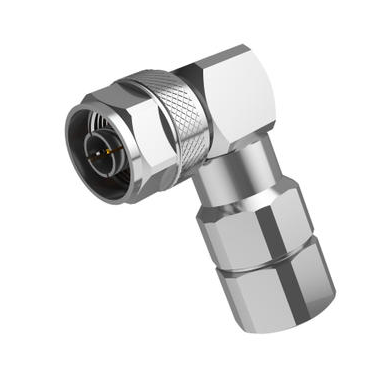

N-type connector

What are the most common N-type connectors?

1. 50 ohm straight N-type connector: The N-type connector is used as a terminal to connect with a coaxial cable, a printed circuit board (PCB) or a terminal block. The manufacturers are all manufactured in accordance with the technical requirements of the precision radio frequency and microwave industry.

2. 50 ohm N-type right-angle connector: The structure of the N-type connector is divided into male or female, and the style has standard polarity or reverse polarity. The shape of the N-type connector is divided into straight or right-angle type, 4-hole flange type, press-in type, partition type, 2-hole panel type, 4-hole panel type or free-installation type. The termination methods of these N-type connectors are clip/welding, clip/welding (static contact), crimping/welding, field replaceable, welding or welding/welding. The N-type connectors we provide are divided into standard performance or high performance grades, and the body material is brass or stainless steel.

3. 50 ohm reverse polarity N-type socket: N-type connectors are divided into 50 ohm impedance and 75 ohm impedance. The 50-ohm N-type connector has a high-reliability coaxial connection with a frequency of up to 12 GHz and a screw locking system. Device. These two kinds of connectors cannot be connected to each other. The N-type connector adopts a medium-sized screw locking system and has high weather resistance. In addition, the N-type connector also has the advantages of high robustness and high reliability, as well as excellent intermodulation performance.

What is the function of N-type connectors?

1. N-type connectors can be used in the area of wireless, telecommunication system, outdoor RF cable, instrumentation, waveguide transmission system.

2. But the connectors used for jumpers are only N head and DIN head. Other types of joints are mainly used on flexible wires and semi-rigid wires.

3. There are two types of N head, straight head and elbow head, the diameter of the cable that can be connected is from 2.6 to 24mm. In addition, there are N-type adapters, attenuators, etc.

With the rapid development of communication networks, the requirements for RF connectors are getting higher and higher, and there are more and more types of connectors. As the most widely used connector, the N-type connector is in great demand. LenoRF has been focused on the study and research on the RF connectors for several years. They can understand that every client’s need is special. Their knowledgeable staff can find the best solution for any scenario. You can get what you want there.

Our company, Zhejiang LenoRF Industry co. LTD, occupies an area of 30 hectares and is equipped with world class equipment to make millimeter wave connectors and phase stable cables. We specialize in coaxial connectors, cable assembly, and passive devices. Our current products are the latest millimeter wave connector and phase stable cable on the market.
