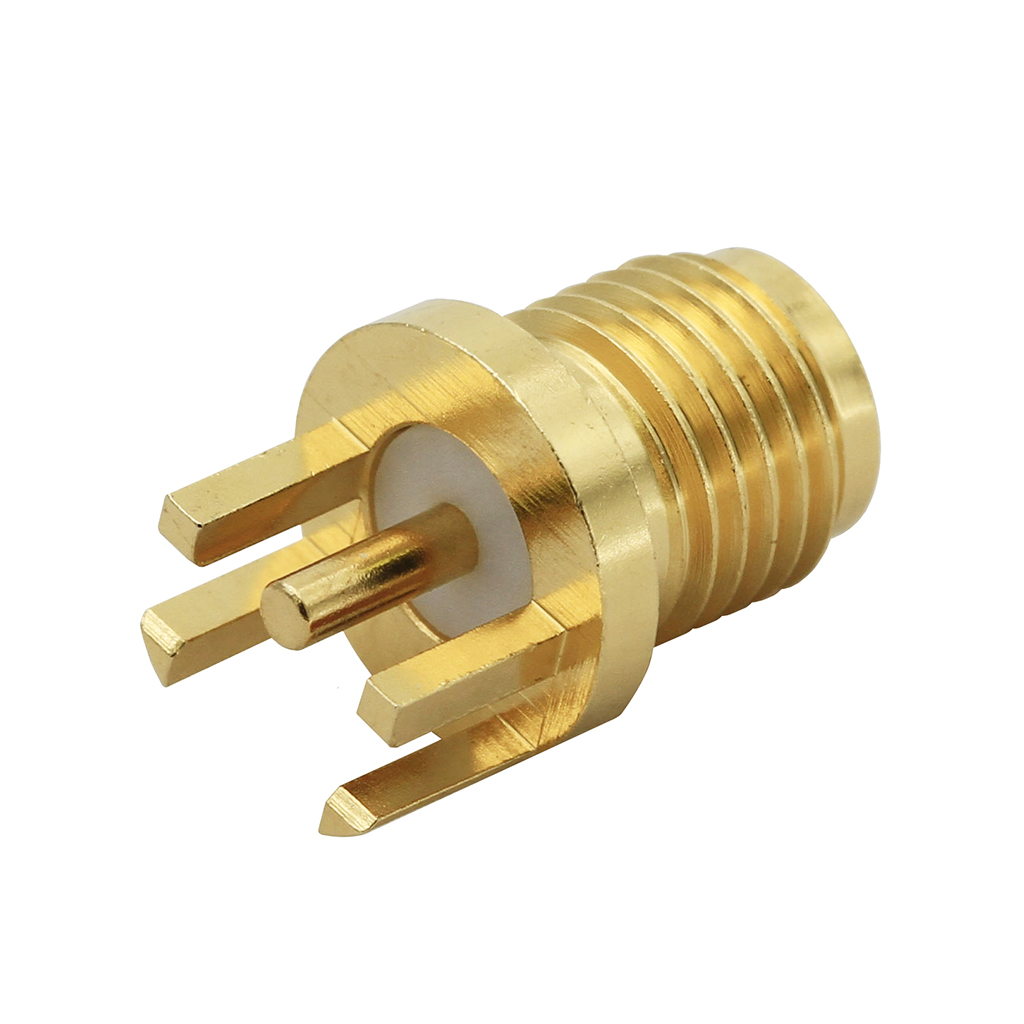

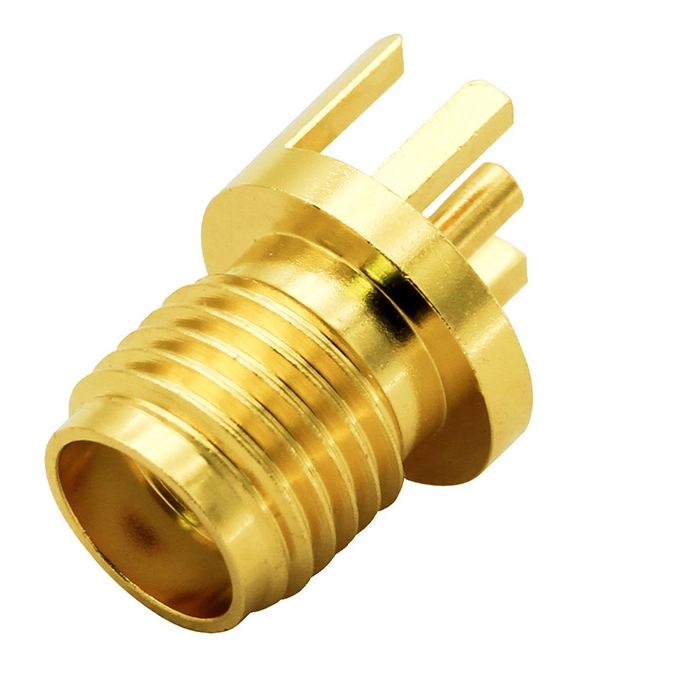

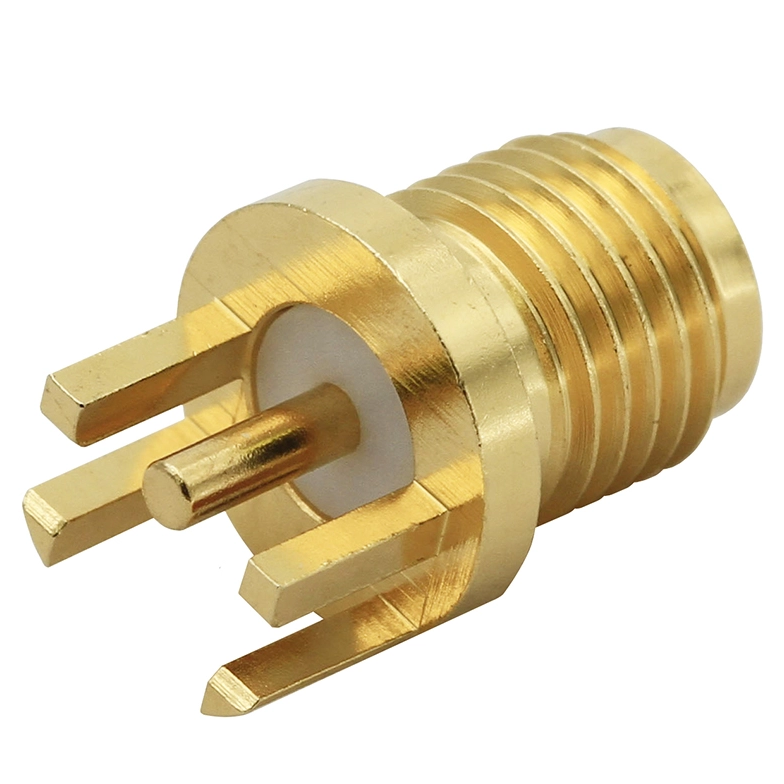

SMA Jack Connector Straight Edge Mount For PCB

LenoRF's SMA coaxial connectors are high-quality and reliable. For high reliability, longer service life, mechanical stability, and electrical performance, these screw-on locking connectors have a fixed maximum torque. With a frequency range of up to 18 GHz and a return loss of less than 30 dB, the butted outer contact is ideal. SMA connectors are often used in RF applications such as telecommunications and mobile communication, as well as test and measurement instruments and equipment.
  • SMAFSTJ.A

  • SMAFSTJ.A

  • Female

  • Straight

  • PCB End launch

  • Soldering

  • N/A

Availability:
Quantity:

Body   PlatingGold
Body MaterialBrass
Cable TypeN/A
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)9
GenderFemale
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategorySubminiature
Temperature Range-65   -165 °C
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348


FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.


6. MOQ

Regular connector: 500PCS.

Adaptor:100PCS

Military connector:100PCS


Application:

Telecommunication,Military,Broadband,Industry,Medical,5G,Radar
