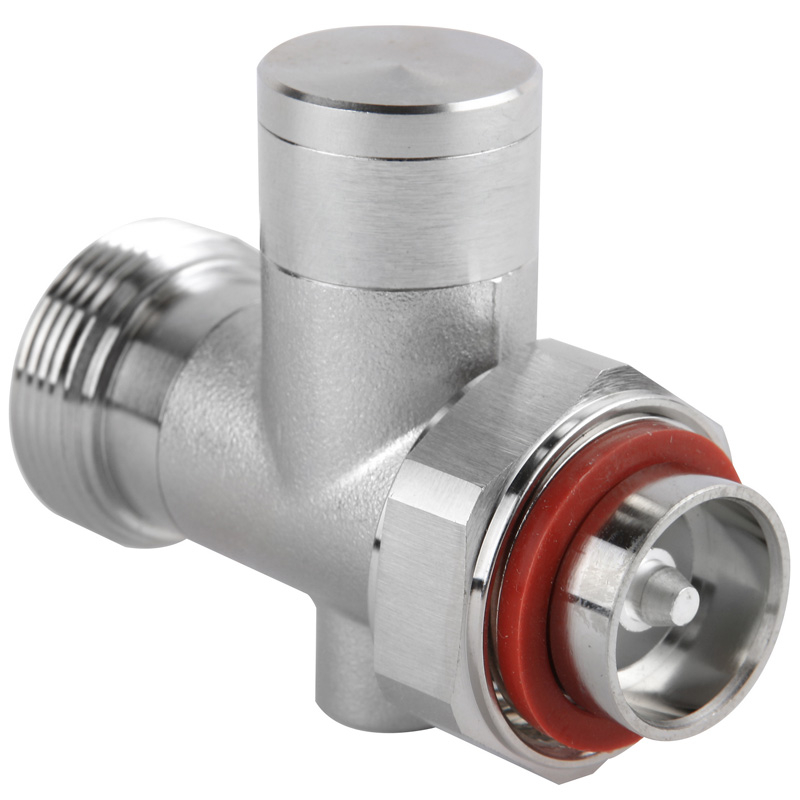

Surge Arrestor Quarterwave For Microwave DIN male to female

Surge Arrestor 1/4 Quarterwave For Microwave DIN male to female
  • SA-DINMF-Q-3

  • Male

  • Straight

  • Crimping

  • Crimping

  • N/A

Maximum Input Power:
Availability:
Quantity:

  • Part No  SA-DINMF-Q-3
    DescriptionSurge Arrestor Quarterwave For Microwave DIN male to female
    Surge Arrestor type Quarterwave
    Connector Type DIN  Male Female
    Frequency DC-6G
    VSWR ≤1.15
    Insertion Loss ≤0.15dB
    Impedance 50 ohms
    Maximum Surge 30KA
    Voltage Rating 375V
    Body Material Brass
    Body Finish Nickle /Ternary Alloy
    Waterproof IP65
    Working Temperature -65°C ~ 165°C
