What is Reverse Polarity Connector

Introduction

In the intricate world of connectors, ensuring the right connection is essential for seamless communication and signal integrity. Reverse polarity connectors, denoted as RP connectors, play a vital role in preventing incorrect connections that can lead to signal degradation and potential damage to the connector interface. This comprehensive guide explores the concept of reverse polarity connectors, their construction, applications, and the critical role they play in maintaining signal integrity.

RP-SMA Plug Connector

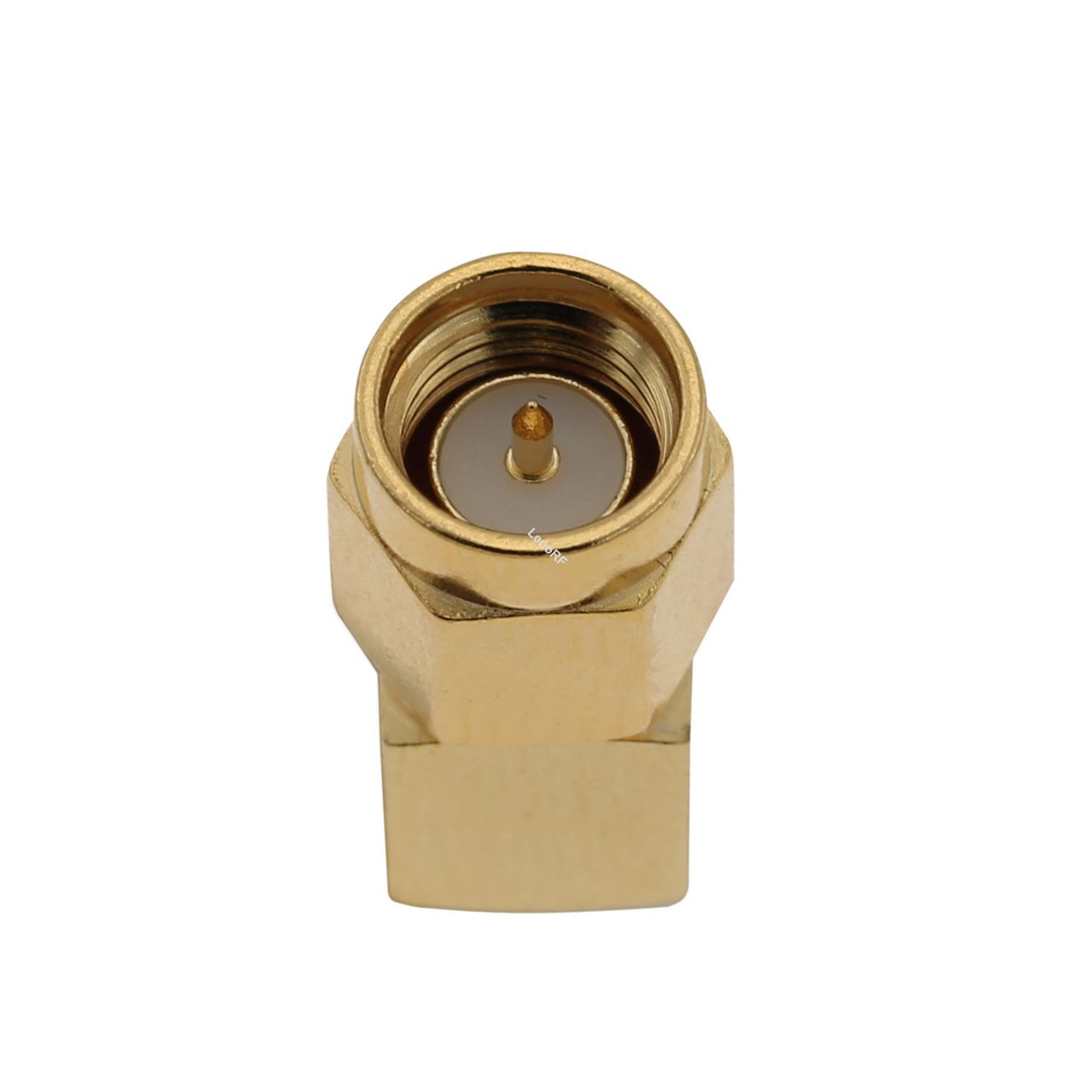

SMA Plug Connector

RP-SMA Jack Connector

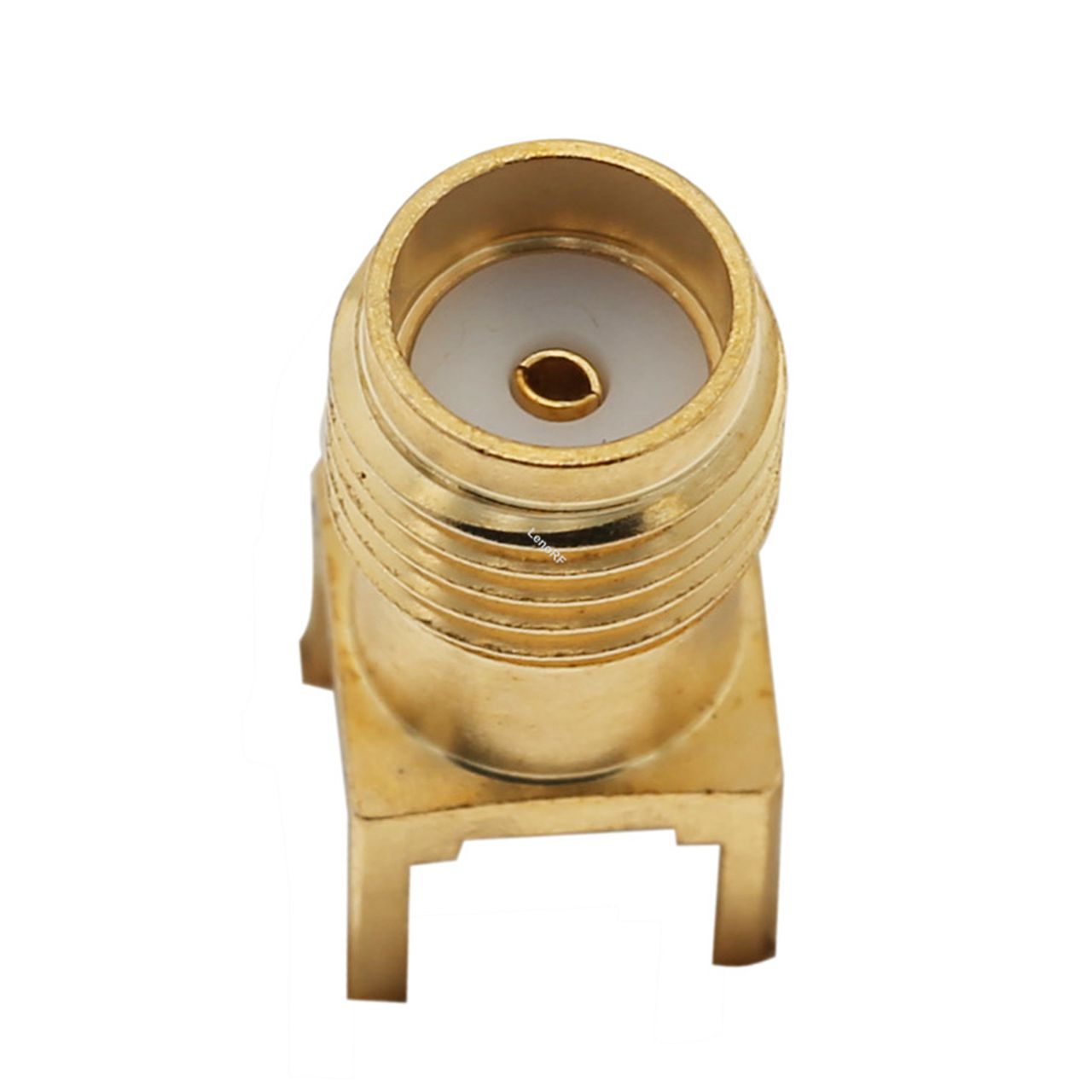

SMA Jack Connector

Understanding Traditional Connectors

To grasp the significance of reverse polarity connectors, it's essential to first understand the anatomy of traditional connectors. In a standard male connector, you'll find three key components:

1. Outer Body: This forms the protective shell of the connector, providing mechanical stability and protection to the internal components.

2. Ferrule: The ferrule is a cylindrical piece inside the connector responsible for aligning and securing the connection.

3. Center Pin: The center pin, located within the connector, is a crucial element for transmitting signals.

In contrast, a traditional female connector includes:

1. Outer Body: Similar to the male counterpart, the outer body serves as the protective enclosure of the connector.

2. Ferrule: Just like in the male connector, the ferrule in the female connector ensures precise alignment and connection.

3. Receptacle: Instead of a center pin, the female connector features a receptacle designed to receive the male connector's center pin.

Reverse Polarity Connectors: Swapping Roles

Reverse polarity connectors, denoted as RP connectors, introduce a clever twist to the traditional connector design. In RP connectors, the roles of the center pin and receptacle are reversed when compared to their standard polarity counterparts:

1. Reverse Polarity Male Connector: In this configuration, the male connector has a receptacle at the interface instead of the traditional center pin.

2. Reverse Polarity Female Connector: Conversely, the female connector in reverse polarity has a center pin at the interface instead of the customary receptacle.

The ingenious idea behind RP connectors is to act as a safeguard against incorrect connections. Trying to connect two connectors of the same gender, such as male to male or female to female, can lead to severe consequences:

• Connector Damage: Attempting to connect two connectors of the same gender can physically damage the connectors, rendering them unusable.

• Signal Degradation: Incorrect connections can result in signal degradation, affecting the quality and integrity of transmitted signals.

To illustrate the difference between standard and reverse polarity connectors, consider the following:

• Standard Polarity Male Connector: Outer Body - Ferrule - Center Pin (Threaded portion inside)

• Standard Polarity Female Connector: Outer Body - Ferrule - Receptacle (Threaded portion outside)

• Reverse Polarity Male Connector: Outer Body - Ferrule - Receptacle (Threaded portion inside)

• Reverse Polarity Female Connector: Outer Body - Ferrule - Center Pin (Threaded portion outside)

The reverse polarity configuration is a simple yet effective method to prevent inadvertent mismatches during connector installation.

Applications of Reverse Polarity Connectors

Reverse polarity connectors are employed in various applications where maintaining proper signal transmission and preventing incorrect connections are paramount. Some key application areas include:

1. Wireless Networks: RP connectors are commonly used in wireless networking equipment, such as Wi-Fi routers and access points. They ensure that antennas are correctly connected to the equipment, preventing signal loss and optimizing network performance.

2. Cellular Communication: Mobile devices and cellular base stations rely on RP connectors to ensure accurate connections between antennas and transceivers, enhancing signal strength and reliability.

3. Radio Frequency Identification (RFID): RFID systems, which use radio waves for data communication, benefit from RP connectors to maintain the integrity of signals between RFID readers and antennas.

4. Wireless Test Equipment: In the field of wireless testing and measurement, RP connectors are instrumental in maintaining signal quality and preventing equipment damage.

5. Military and Aerospace: RP connectors are used in military and aerospace applications to guarantee the integrity of critical communication systems, radar equipment, and satellite connections.

6. Consumer Electronics: Some consumer devices, like wireless modems and routers, feature RP connectors to ensure users make the correct connections during setup, minimizing the risk of signal degradation.

Variations and Standards

RP connectors are not standardized by international bodies in the same way as some other connectors. Instead, they are an industry standard adopted by various manufacturers and adhered to as a practical solution for preventing incorrect connections. As a result, RP connectors may exhibit slight variations in design and labeling from one manufacturer to another.

Conclusion

Reverse polarity connectors, with their ingenious design that swaps the roles of the center pin and receptacle, serve as a safeguard against incorrect connections. Their ability to prevent damage to connectors and signal degradation is crucial in various applications, from wireless networks to military and aerospace systems.

While RP connectors may not adhere to strict international standards, their practicality and effectiveness make them a valuable addition to the world of connectors. In an era where reliable signal transmission is paramount, reverse polarity connectors play a vital role in maintaining signal integrity and preventing costly mistakes during installation.
