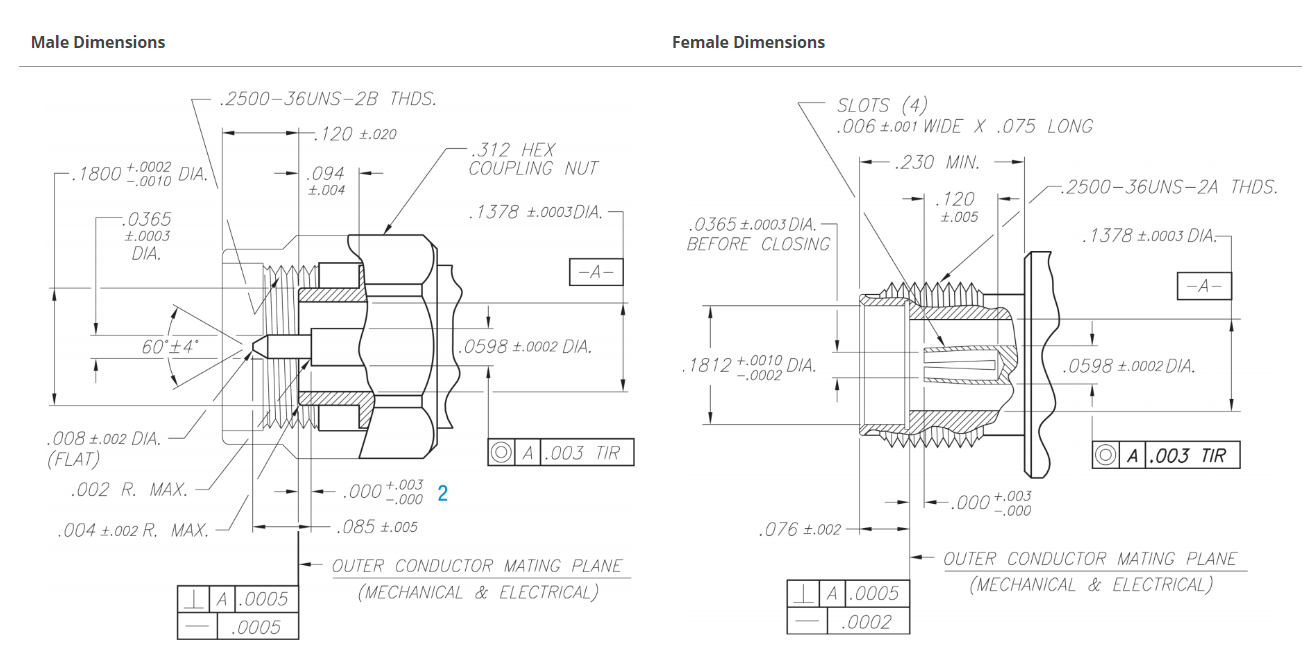

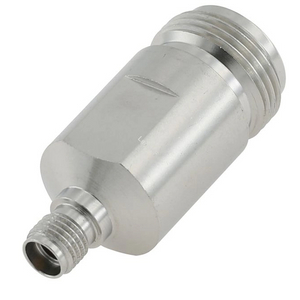

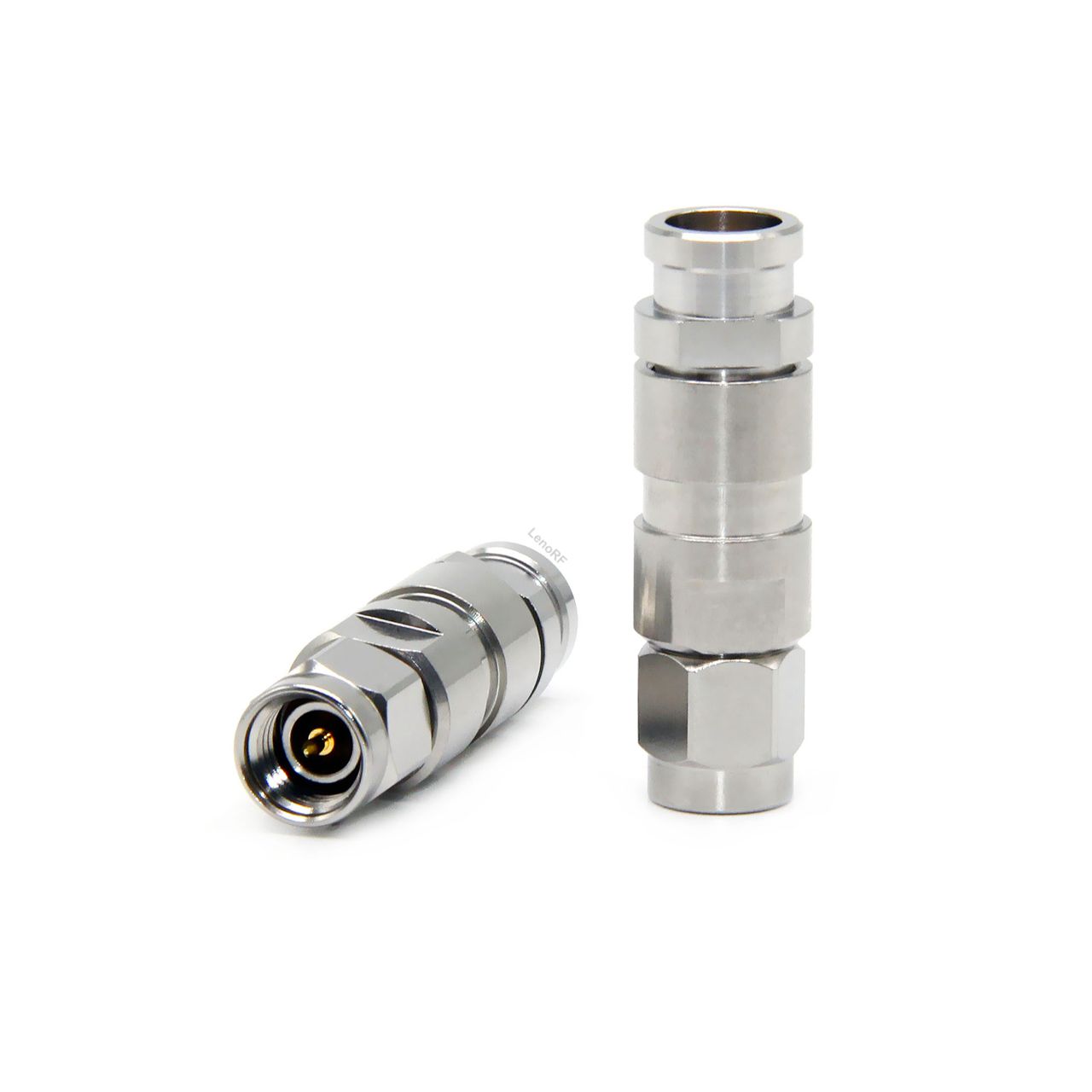

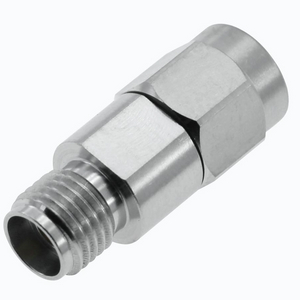

The 3.5 mm connector, a stalwart of the pin and socket type connector family, employs an ingenious air dielectric-filled interface. Its refined design, featuring a meticulously controlled center conductor support bead, engenders mechanical interface tolerances akin to the revered hermaphroditic connectors. The hallmark of this connector lies in its robust construction, adeptly engineered to withstand the rigors of repeated mating cycles without succumbing to damage. Also acknowledged by its moniker, APC3.5, this connector exhibits not only physical compatibility with the SMA connector but also ensures unhindered operation across a gamut of modes up to a staggering 35 GHz, although some manufacturers conservatively claim commendable performance up to 33 or 34 GHz.
Journeying back through time, we discern the inaugural emergence of the 3.5 mm connector in the annals of technological advancement. In the mid-1970s, the ingenious minds at Hewlett Packard conceived and presented this innovation to the world. Subsequently, it was embraced by Amphenol, assuming the nomenclature APC3.5. This brainchild was the brainwave of Larry Renihan from the HP Stanford Park Division. The year 1976 witnessed its grand unveiling at the prestigious IEEE MTT-S International Microwave Symposium in the vibrant city of San Francisco, followed by its formal publication in July of the same year. Revered as an instrument-grade connector, it ushered in a new epoch of advancement in microwave test instruments, particularly in the realm of frequencies reaching an impressive 26.5 GHz. Furthermore, it satisfied a pressing need by providing a test connector tailored for SMA devices, thereby plugging a crucial gap in the technological landscape.
Delving into its manifold applications, the 3.5 mm series shines as a paragon of high operating frequency capacity. Its exalted status as a mm-Wave RF connector is underscored by its adherence to IEEE 287 standards, a testament to its precision and reliability. Noteworthy is its seamless interfacing compatibility with the 2.92 mm and SMA RF connectors, a testament to its versatility and adaptability. In contexts where incessant mating, spanning the echelons of thousands of cycles, is a prerequisite, this connector emerges as the preferred choice, seamlessly substituting for its SMA predecessor.
Turning our attention to the realm of variation, IEEE 287 delineates the contours of diversity within the realm of 3.5 mm RF connectors. The classification emerges in two distinct flavors: the beaded General Precision Connector (GPC) and its beadless counterpart, the Laboratory Precision Connector (LPC). These variations primarily diverge in mechanical tolerances and the utilization of a dielectric bead, which bestows upon them their unique attributes and characteristics.
In summation, the 3.5 mm connector stands as a testament to human ingenuity and engineering finesse. Its lineage can be traced back to the hallowed halls of Hewlett Packard, brought to life by the visionary Larry Renihan. A cornerstone of microwave test instruments, it revolutionized the domain with its operational prowess reaching up to 26.5 GHz. Its compatibility with the SMA connector and its remarkable resilience in the face of repeated mating cycles underscore its indispensability. Not confined to a singular guise, it embraces variations that cater to divergent mechanical tolerances and preferences. As technology hurtles forward, the 3.5 mm connector stands as a steadfast companion, enabling seamless connections and propelling innovation in the realms of high-frequency communication.
