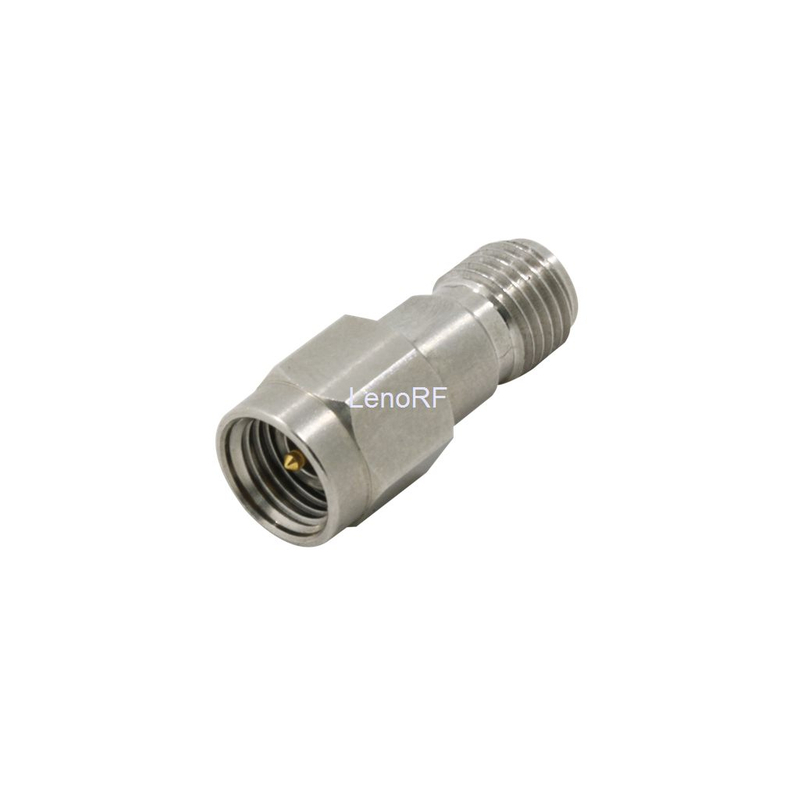

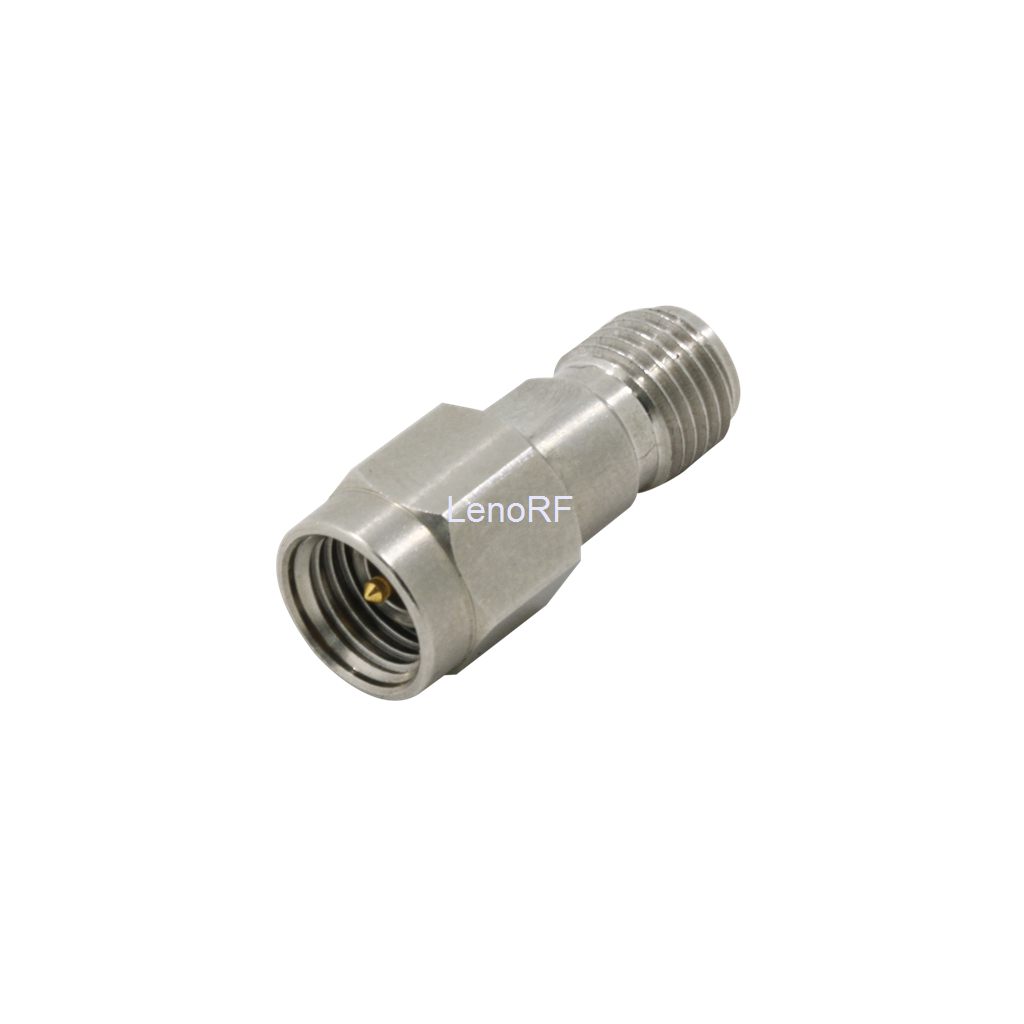

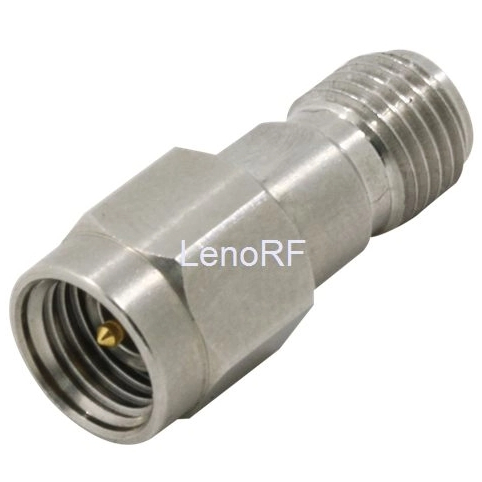

3.5mm RF Connector Plug To Plug Adapter

The 3.5 mm connector is a heavy-duty coaxial connector that can operate at 34 GHz without mode switching. This pin-and-socket connector has an air-filled interface and a 3.5-mm outside conductor diameter. This connector interface is compatible with SMA and 2.92mm connectors and can withstand several mating cycles without breaking. In the mid-1970s, Hewlett Packard created the 3.5 mm connector, which was later sold by Amphenol as APC3.5.
  • 833-1203

  • Male to Male

  • Straight

  • Crimping

  • Crimping

Availability:
Quantity:
Series 12.92mm
Series 22.92mm
Body PlatingGold
Body MaterialStainless Steel
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)34
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Temperature Range-65   -165 °C
Mating Cycles500   Min
