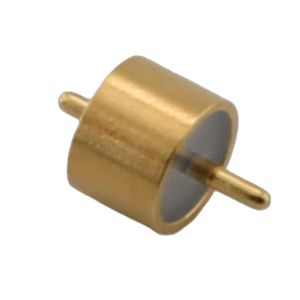

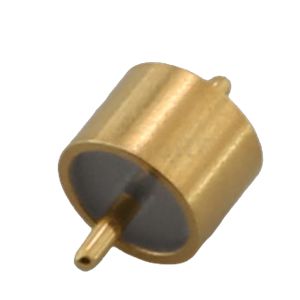

Glass Insulator, Glass Bead

Glass Bead

  • 3.19.1653

  • Female to Female

  • Straight

  • N/A

  • N/A

  • N/A

Availability:
Quantity:
Inquire Add to Basket

 RF GLASS BEADS

  • Glass Beads (K100, V100): An ideal choice for connectors, high-density packaging and multiport applications, with option to mount as pin or integrated as a standard connector

  • Center & outside conductor: ASTM-F15 (KOVAR)

  • Plating:
    1.27µm to 3.81µm Gold plated over
    1.27µm to 3.81µm nickel

  • Glass: CORNING 7070

  • Seal: hermetic at 10-8 atm.cm3/s

  • RF perf: 50 ±3ohms, DC to 45GHz

  • Applications: Space, Telecom, Military, Medical, Quantum Computing
