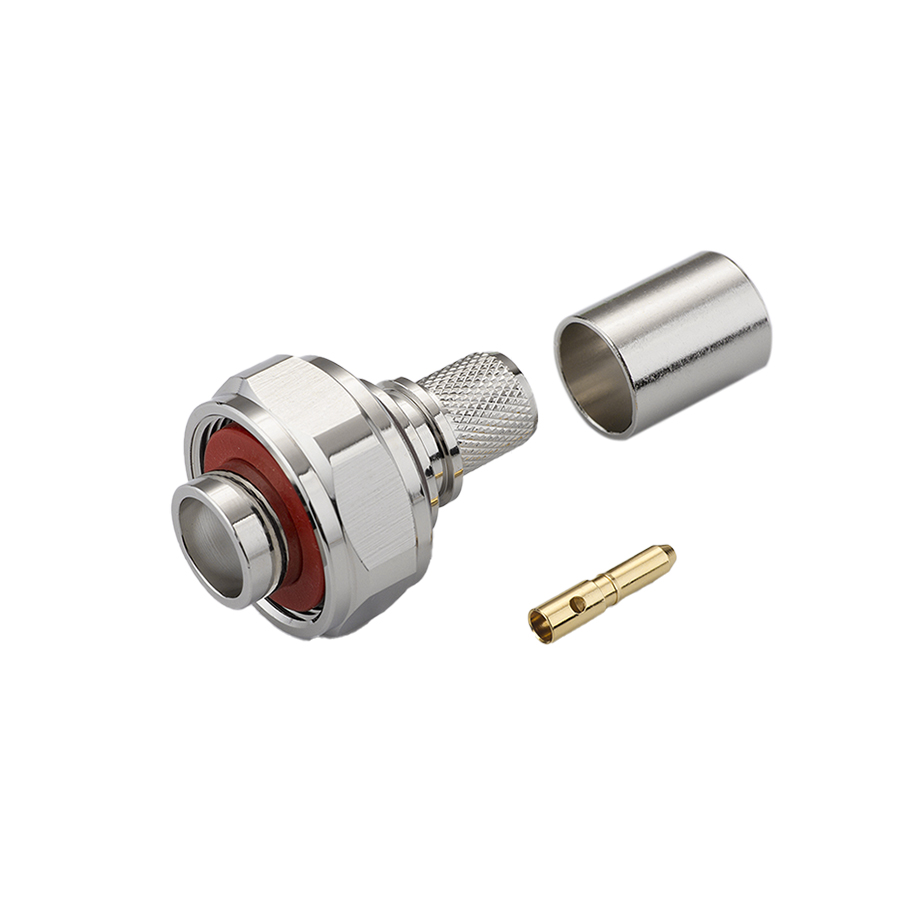

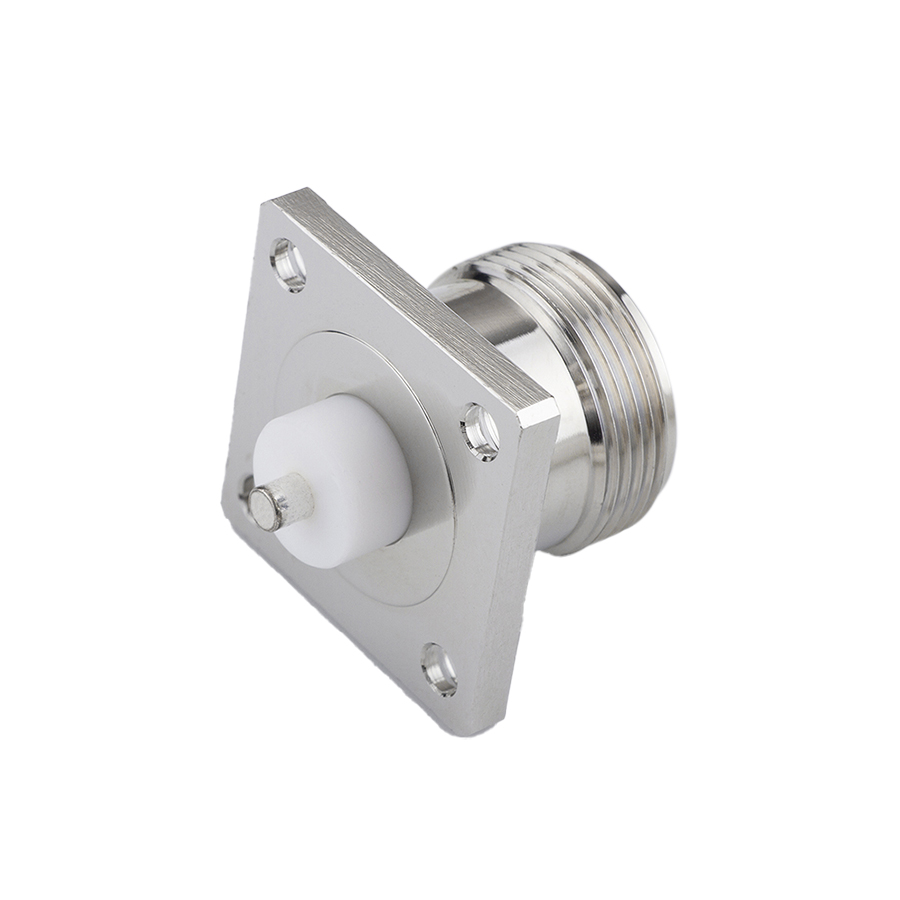

The realm of radio frequency (RF) connectors continuously evolves to meet the demands of modern communication systems. Amid this dynamic landscape, the 4.1/9.5 "Mini-DIN" RF connector has emerged as a compact and ingenious solution. With an impedance of 50 Ω and a maximum operating frequency of 14.00 GHz, this connector boasts impressive capabilities that have transformed traditional connectivity norms. Exploring its coupling mechanism, historical development, applications, and significance in the context of newer designs provides a comprehensive understanding of its place in the world of RF connectors.
Redefined Connectivity: Technical Specifications
At its core, the 4.1/9.5 "Mini-DIN" RF connector embodies innovation through its design. With an impedance of 50 Ω and a remarkable maximum operating frequency of 14.00 GHz, this connector sets the stage for high-performance communication systems. The coupling mechanism, a screw-on design, contributes to its secure mate between connectors. This thoughtful engineering ensures reliable connections, pivotal for seamless data transmission.
To ensure precision, it's worth clarifying the nomenclature: the 4.1/9.5 connector is often incorrectly written as "4.1-9.5". Such nuances underscore the intricacies of terminology in the RF connector domain. This connector series conforms to the interface standards DIN 47231 and IEC 60169-11, reflecting its alignment with established industry norms.
A Historical Perspective: Origins and Evolution
The 4.1/9.5 "Mini-DIN" RF connector traces its roots back to the 1970s when SPINNER GmbH embarked on a journey of iterative improvement. Building upon their widely popular 7/16 DIN design, the company envisioned a connector that would not only surpass its predecessor but also cater to the evolving landscape of communication technology. This aspiration led to the birth of the 4.1/9.5 connector, a testament to the company's commitment to innovation.
Applications Across the Spectrum
Central to the allure of the 4.1/9.5 connector is its low passive intermodulation (PIM) design, often reaching an impressive -165 dBc. This inherent attribute renders it an optimal choice for mobile communication systems and wireless applications, where signal integrity is paramount. Despite its compact size, this connector series matches the performance and mechanical resilience of the larger 7/16 connectors, all within a 30% smaller footprint.
Its versatility extends beyond traditional communication setups. The 4.1/9.5 connector shines as a suitable replacement for N connectors in cellular distributed antenna systems (DAS) that require PIM certification. This adaptability underscores its relevance in various communication contexts.
However, as the landscape evolves, newer designs come to the fore. The advent of the 4.3-10 RF connector, with its near-identical performance, lighter weight, and smaller form factor, has shifted the trajectory. While the 4.1/9.5 connectors continue to demonstrate their prowess, they face competition from their successors in a rapidly evolving market.
A Glimpse into the Future: Balancing Legacy and Progress
The emergence of the 4.3-10 RF connector raises intriguing questions about the future trajectory of the 4.1/9.5 "Mini-DIN" connector. As the industry gravitates towards designs that accommodate higher density packing and lighter infrastructure, the 4.3-10 connector presents a formidable alternative. While the 4.1/9.5 connectors have cemented their legacy as a groundbreaking solution, their prominence might gradually give way to newer designs that align more seamlessly with the needs of modern communication systems.

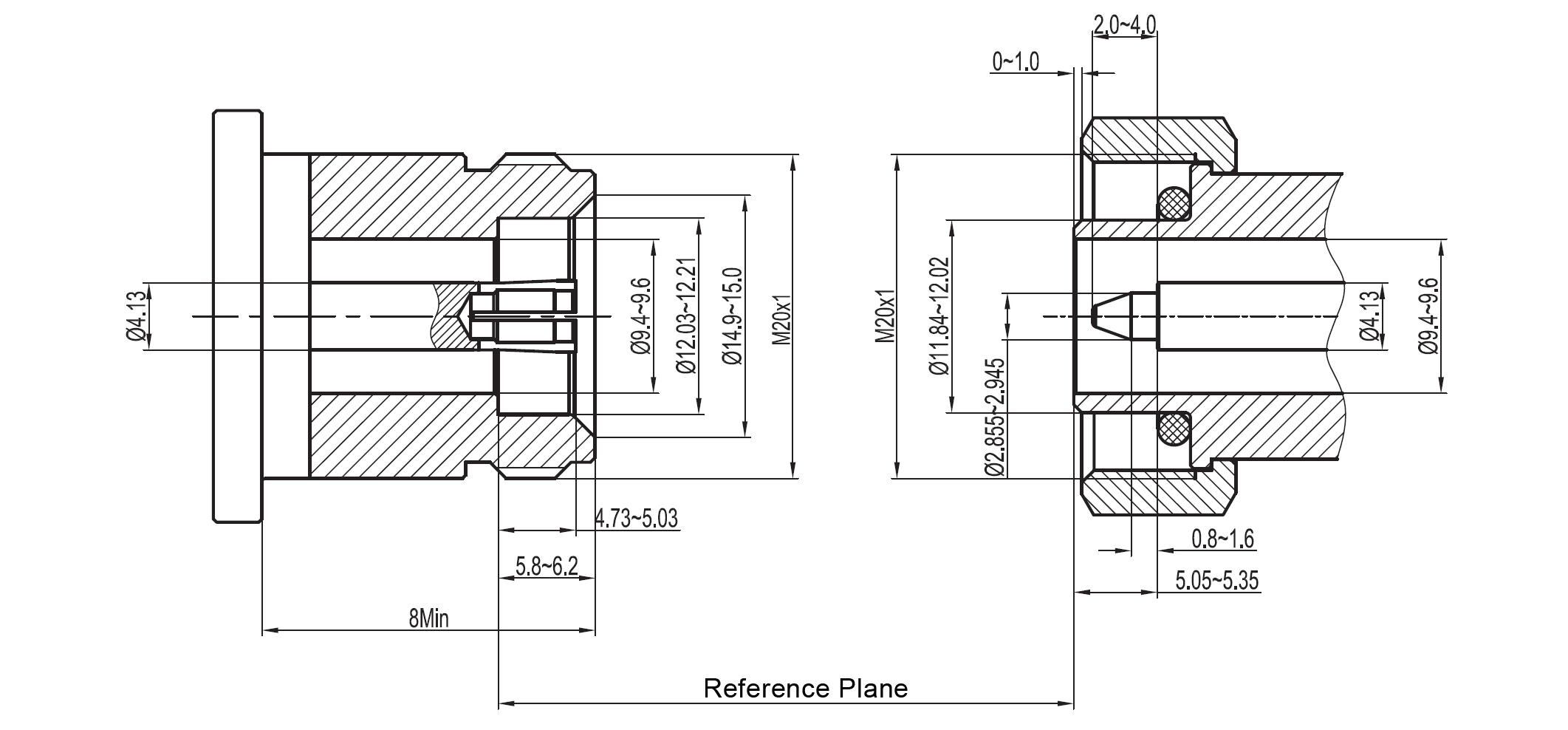

Interface Drawing
Conclusion
In the intricate world of RF connectors, the 4.1/9.5 "Mini-DIN" connector stands as a testament to ingenuity and evolution. From its technical specifications to its historical evolution and versatile applications, it has made a lasting impact on communication systems. As technology forges ahead, newer designs enter the scene, inviting a careful evaluation of legacy and progress. The journey of the 4.1/9.5 connector underscores the dynamic nature of the communication landscape, where innovation and adaptation shape the future.
