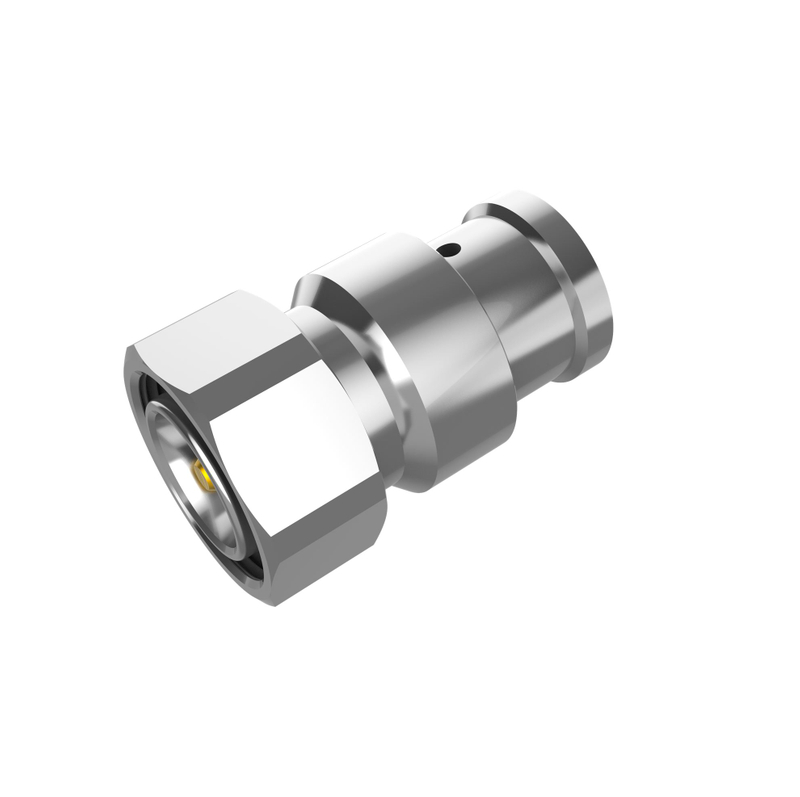

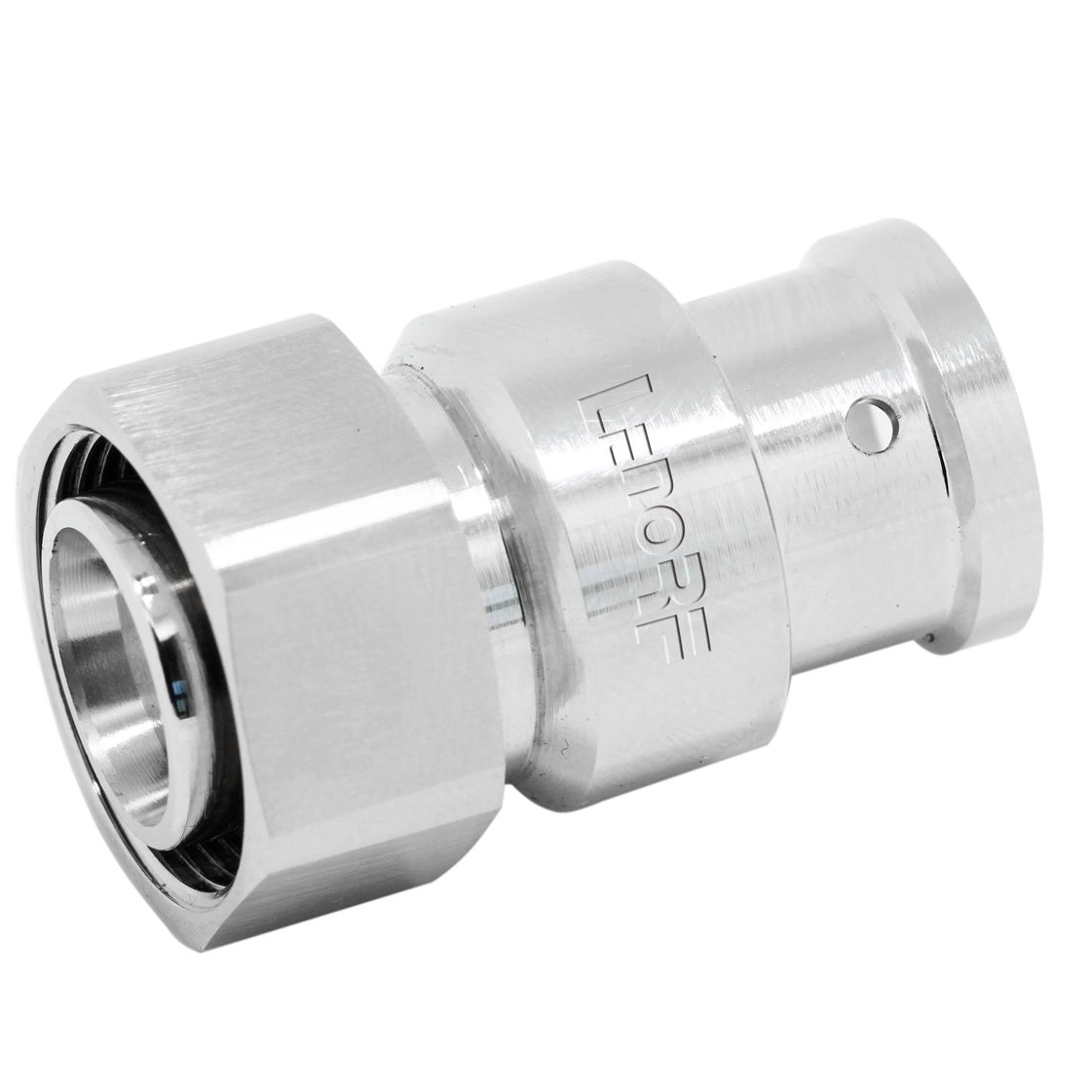

4.3/10 Connector Male Soldering Straight for 1/2'' Flexible Cable

In wireless radio equipment and lightweight antennas, the 4.3/10 connector system was developed to replace 7/16 DIN connectors. These connectors were created to address the demands of telecom firms, who need a smaller, lighter, easier-to-install, and more reliable connector with a low PIM. According to the IEC 60169-54 interface standard, the 4.3-10 connectors can transmit data at up to 6 GHz, although other businesses sell products that can transmit data at up to 12 GHz. These connectors beat 7/16 DIN products because they are 40% smaller and 60% lighter, and they offer higher PIM performance even when hand-mated by radial contact topology.
The screw, quick-lock(push-pull), and hand-screw interfaces of the 4.3/10 male connector all mat to the same universal female interface.
  • 20-719
  • 70-5161-346-01
  • Male
  • Straight
  • Soldering
  • Soldering
  • 1/2" Flexible Coaxial Cable
  • 70-5161-346-01.pdf
  • 70-5161-346-01.stp
Availability:
Quantity:


Electrical Characteristics:

Frequency Range:

DC-3GHz

VSWR: ≤1.10

Insertion loss: ≤0.1 dB

PIM:≤-160dBC(2*43 dBm)

Insulation resistance:≥5000MΩ

Proof voltage:2500 V

Conductor resistance-Outer condutor: <0.5mΩ

Conductor resistance-Inner condutor: <1.0 mΩ

Normal impedance: 50Ω±2


Environmental Characteristics:

Temperature range:-40º to +85ºC (-40° to +185ºF)

Weather standard: IEC 60068 40/085/21

Water proofing standard: IP68

Thermal shock: IEC 60068-2-14-Na

Vibration:IEC 60068-2-6-Fc

Shock:IEC 60068-2-27

RoHS compliant: Yes


Mechanical Characteristics:

Nut torque:10-12N.m

Whole pull(nut):500N

Tensile force (cable-connector):500N

Torsion(cable-connector):4N.m

Assembly: Inner and outer conductor installed



Material and plating:

Inner conductor: Spring bronze Ag5μm

Outer conductor: Brass Trimetal 2μm

Nut: Brass Ni5μm

Gasket: Silicone rubber

Insulater: TPX


Electrical Characteristics:


Frequency Range:
DC-3GHz


VSWR: ≤1.10
Insertion loss: ≤0.1 dB
PIM:≤-160dBC(2*43 dBm)
Insulation resistance:≥5000MΩ
Proof voltage:2500 V
Conductor resistance-Outer condutor: <0.5mΩ
Conductor resistance-Inner condutor: <1.0 mΩ
Normal impedance: 50Ω±2




Environmental Characteristics:

Temperature range:-40º to +85ºC (-40° to +185ºF)
Weather standard: IEC 60068 40/085/21
Water proofing standard: IP68
Thermal shock: IEC 60068-2-14-Na
Vibration:IEC 60068-2-6-Fc
Shock:IEC 60068-2-27
RoHS compliant: Yes


Mechanical Characteristics:

Nut torque:10-12N.m
Whole pull(nut):500N
Tensile force (cable-connector):500N
Torsion(cable-connector):4N.m
Assembly: Inner and outer conductor installed


Material and plating:        Material                       plating

Inner conductor:               Spring bronze              Ag5μm
Outer conductor:              Brass                            Copper-tin-zinc 2μm
Nut:                                     Brass                            Ni5μm
Gasket:                              Silicone rubber           ------
Insulater:                           TPX                               ------
