4.3/10 RF Connector Male Soldering for 3/8'' Superflexible Cable
You are here: Home » Products » RF Connector » 4.3-10 Connector » 4.3/10 RF Connector Male Soldering for 3/8'' Superflexible Cable

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

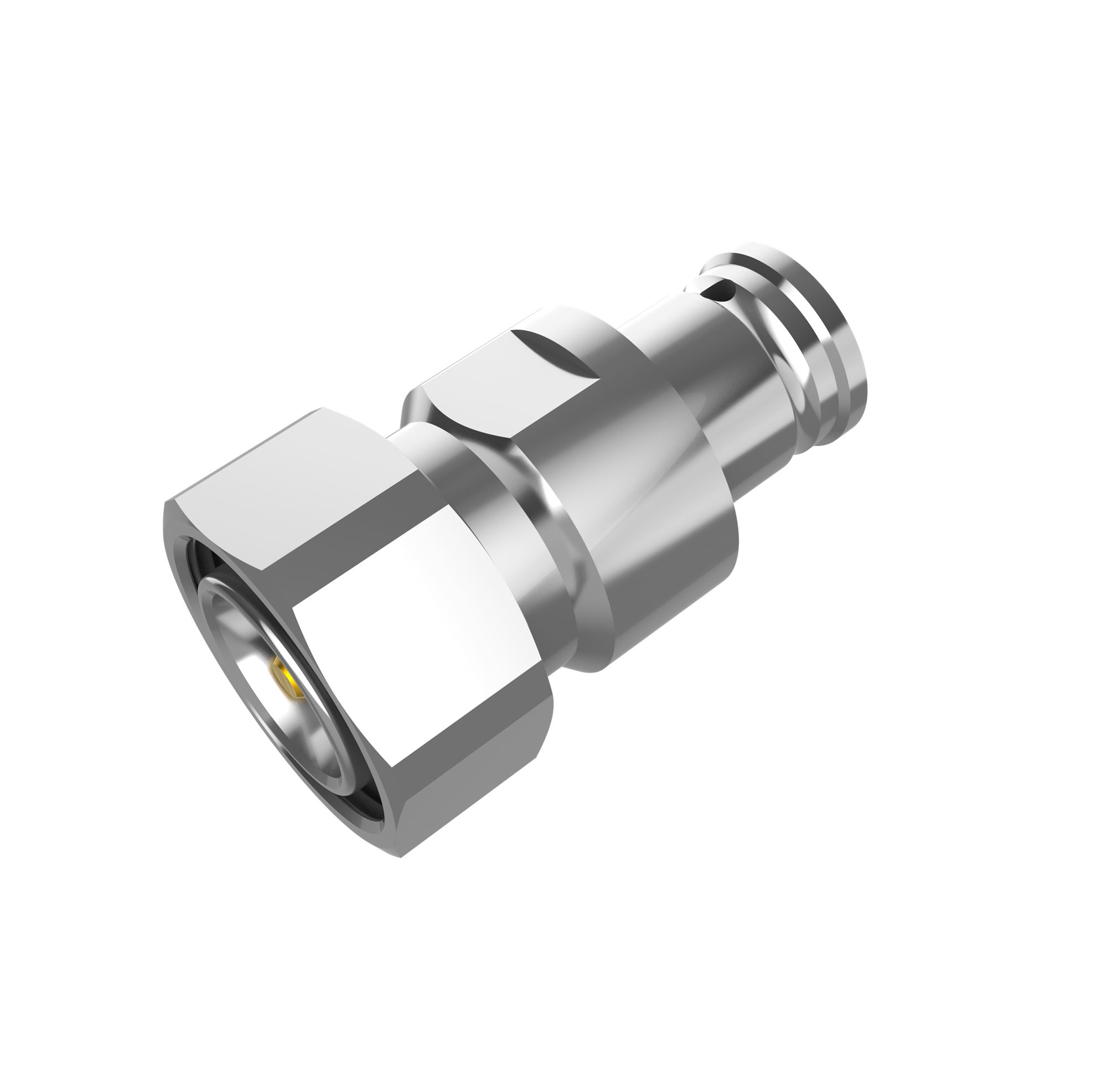

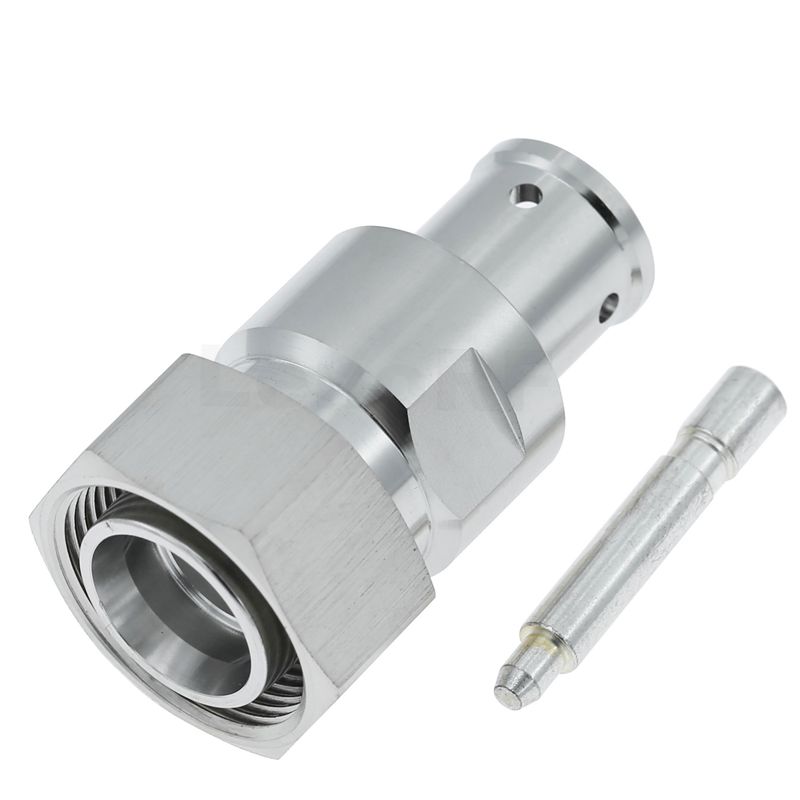

4.3/10 RF Connector Male Soldering for 3/8'' Superflexible Cable

Wireless radio equipment and lightweight antennas use the 4.3/10 connector system to replace 7/16 DIN connectors. These connectors were created in response to telecom firms' requests for a smaller, lighter, easier-to-install, and more reliable connector with a low PIM. According to the IEC 60169-54 interface standard, 4.3-10 connectors can function up to 6 GHz, while other businesses provide products that can operate up to 12 GHz. These connectors obviously beat 7/16 DIN products because they are 40% smaller and 60% lighter, and they give better PIM performance even when hand-mated by radial contact structure than 7/16 DIN products.
The screw, quick-lock(push-pull), and hand-screw interfaces of the 4.3/10 male connector are all compatible with a single universal female interface.
  • 20-796

  • 70-5161-344-01

  • Male

  • Straight

  • Soldering

  • Soldering

  • 1/2" Super Flexible cable

  • 70-5161-344-01.pdf

  • 70-5161-344-01.stp

Availability:
Quantity:


Electrical Characteristics:

Frequency Range:

DC-3GHz

VSWR: ≤1.10

Insertion loss: ≤0.1 dB

PIM:≤-160dBC(2*43 dBm)

Insulation resistance:≥5000MΩ

Proof voltage:2500 V

Conductor resistance-Outer condutor: <0.5mΩ

Conductor resistance-Inner condutor: <1.0 mΩ

Normal impedance: 50Ω±2


Environmental Characteristics:

Temperature range:-40º to +85ºC (-40° to +185ºF)

Weather standard: IEC 60068 40/085/21

Water proofing standard: IP68

Thermal shock: IEC 60068-2-14-Na

Vibration:IEC 60068-2-6-Fc

Shock:IEC 60068-2-27

RoHS compliant: Yes


Mechanical Characteristics:

Nut torque:10-12N.m

Whole pull(nut):500N

Tensile force (cable-connector):500N

Torsion(cable-connector):4N.m

Assembly: Inner and outer conductor installed



Material and plating:

Inner conductor: Spring bronze Ag5μm

Outer conductor: Brass Trimetal 2μm

Nut: Brass Ni5μm

Gasket: Silicone rubber

Insulater: TPX
