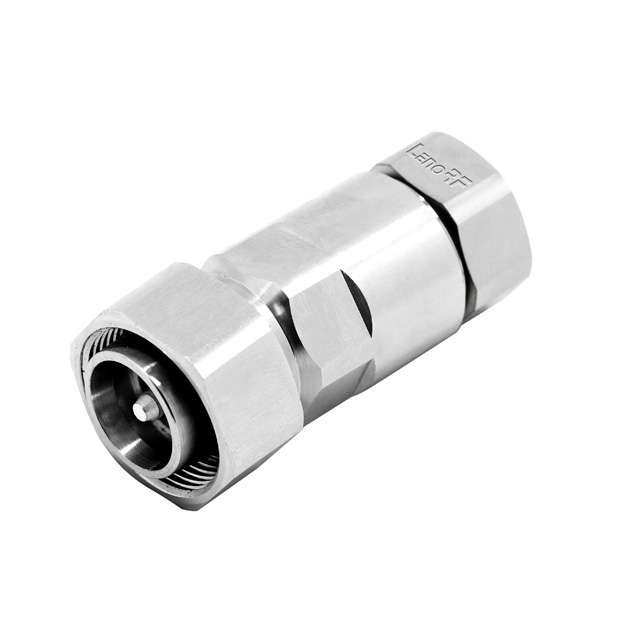

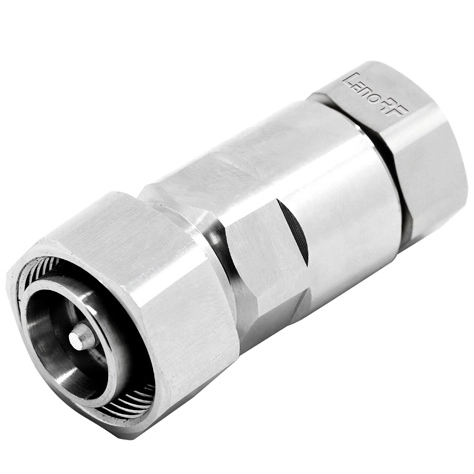

4.3/10 RF Connector Plug Clamp Straight For 1/2" Flexible Cable

Wireless radio equipment and lightweight antennas use the 4.3/10 connector system to replace 7/16 DIN connectors. These connectors were created in response to telecom firms' requests for a smaller, lighter, easier-to-install, and more reliable connector with a low PIM. According to the IEC 60169-54 interface standard, 4.3-10 connectors can function up to 6 GHz, while other businesses provide products that can operate up to 12 GHz. These connectors obviously beat 7/16 DIN products because they are 40% smaller and 60% lighter, and they give better PIM performance even when hand-mated by radial contact structure than 7/16 DIN products.
The screw, quick-lock(push-pull), and hand-screw interfaces of the 4.3/10 male connector are all compatible with a single universal female interface.
  • 20-715
  • 70-5161-246-01
  • Male
  • Straight
  • Clamping
  • Crimping
  • 1/2" Flexible Corrugated Coaxial Cable
  • 70-5161-246-01.pdf
  • 70-5161-246-01.stp
Availability:
Quantity:


Electrical Characteristics:

Frequency Range:

DC-3GHz

VSWR: ≤1.10

Insertion loss: ≤0.1 dB

PIM:≤-160dBC(2*43 dBm)

Insulation resistance:≥5000MΩ

Proof voltage:2500 V

Conductor resistance-Outer condutor: <0.5mΩ

Conductor resistance-Inner condutor: <1.0 mΩ

Normal impedance: 50Ω±2


Environmental Characteristics:

Temperature range:-40º to +85ºC (-40° to +185ºF)

Weather standard: IEC 60068 40/085/21

Water proofing standard: IP68

Thermal shock: IEC 60068-2-14-Na

Vibration:IEC 60068-2-6-Fc

Shock:IEC 60068-2-27

RoHS compliant: Yes


Mechanical Characteristics:

Nut torque:10-12N.m

Whole pull(nut):500N

Tensile force (cable-connector):500N

Torsion(cable-connector):4N.m

Assembly: Inner and outer conductor installed



Material and plating:

Inner conductor: Spring bronze Ag5μm

Outer conductor: Brass Trimetal 2μm

Nut: Brass Ni5μm

Gasket: Silicone rubber

Insulater: TPX

Materials&Electroplating

Conduct

Brass/ Silver,gold Plating

Insulator

PTFE

Body

Brass /Ternary

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

50 OHMS

Frequency Range

0-6 GHz

VSWR

≤1.05

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +85°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

IEC 61169-1, Subclause 9.4.6

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

IEC 61169-1, Subclause 9.3.3

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

IEC 61169-1, Subclause 9.3.14

Thermal Shock

IEC 61169-1, Subclause 9.6.9

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B

IP68 Sealed in Mated Condition
