Overview

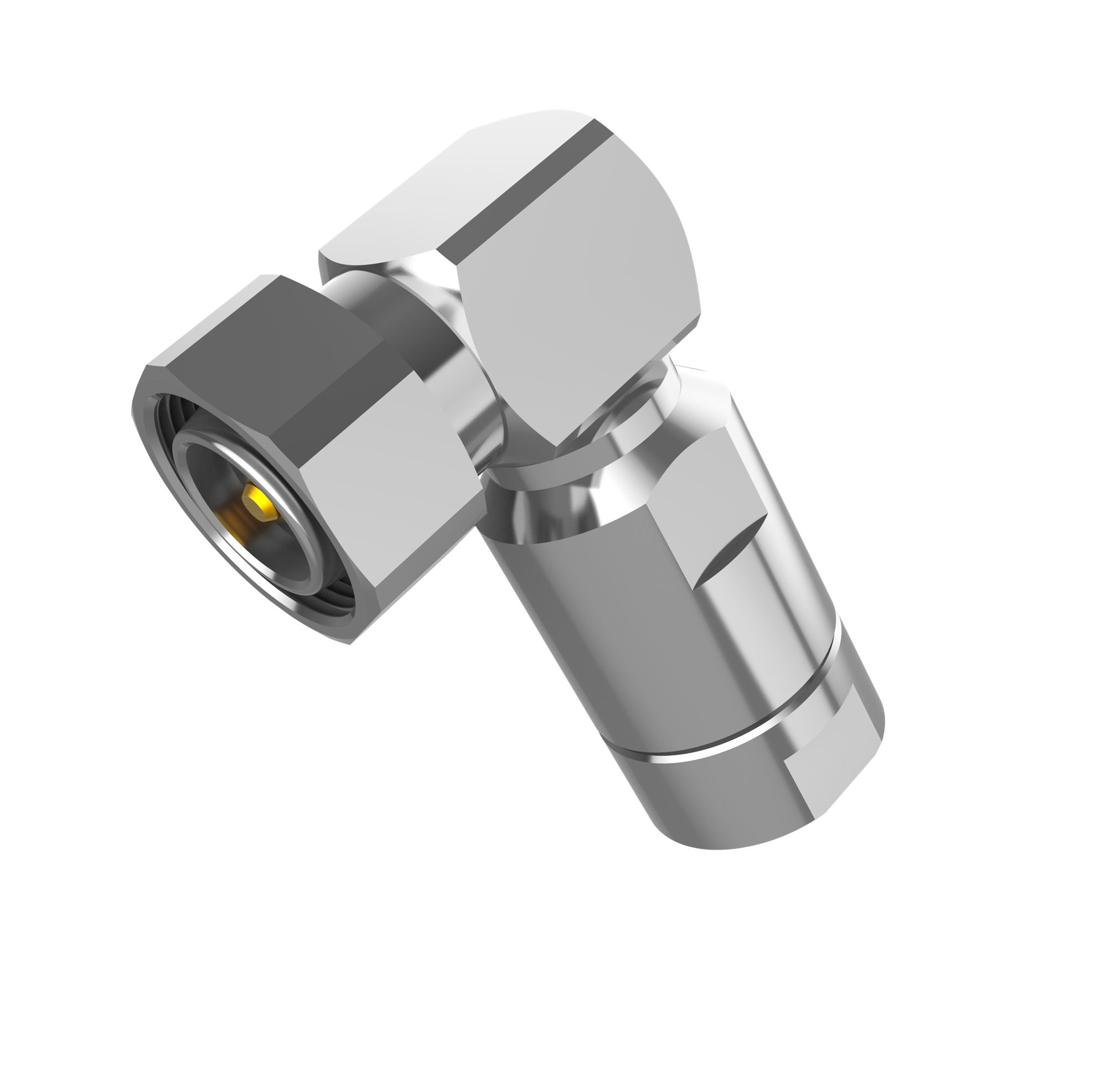

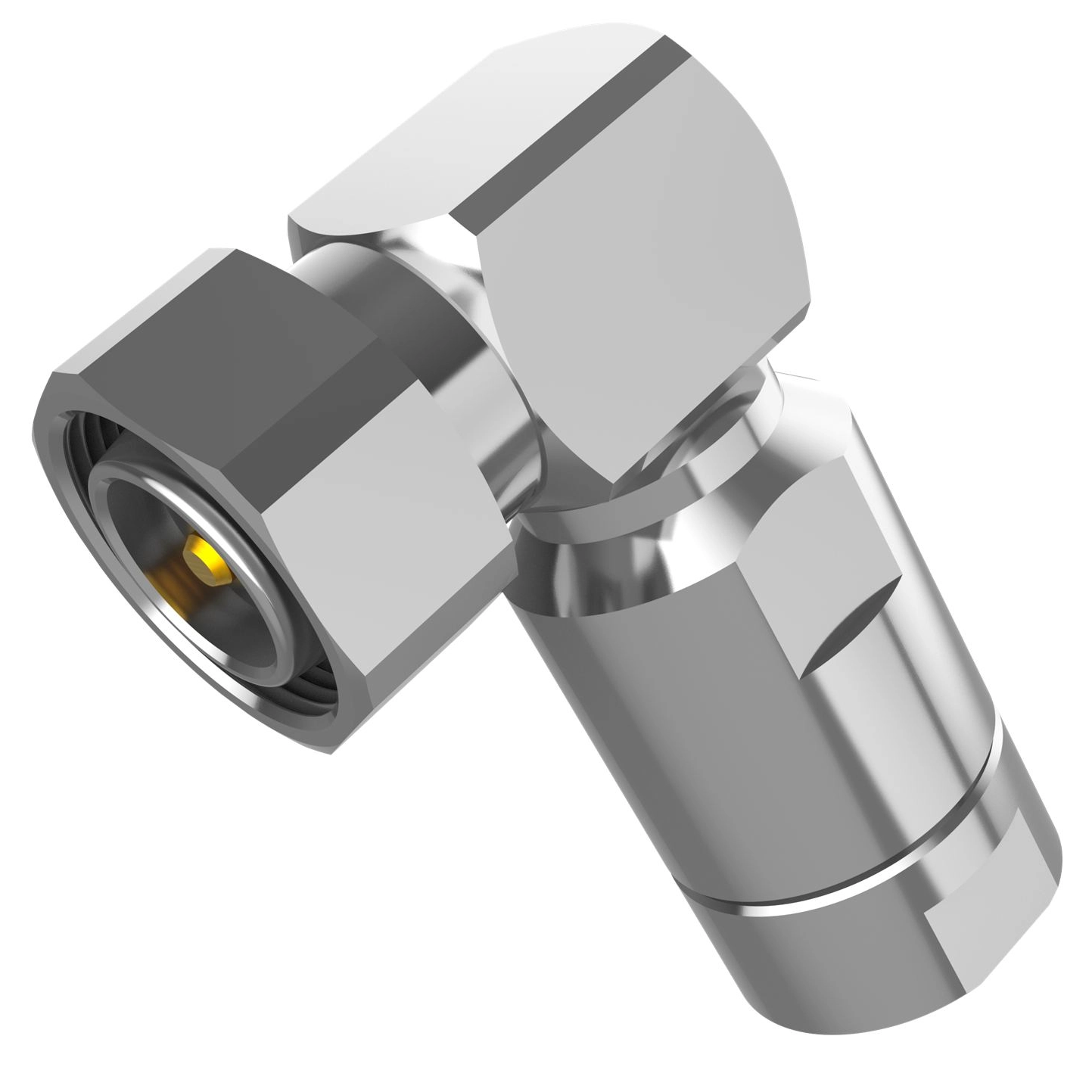

The 4.3/10 connector is a compact, high-performance RF coaxial connector designed for use in modern telecom and mobile network applications. It features a snap-on coupling mechanism that provides reliable, quick, and vibration-resistant connections. The connector supports 50 ohm impedance and broadband performance, making it suitable for frequencies up to several GHz. Its smaller footprint compared to traditional 7/16 connectors allows for denser antenna and base station designs without compromising electrical performance. The 4.3/10 connector is widely used in LTE, 5G, RF/microwave test benches and calibration equipment,network analyzers, spectrum analyzers, and oscilloscopes and other wireless infrastructure, offering excellent durability, low passive intermodulation (PIM), and ease of installation.
Features
Provides excellent low PIM performance for reliable signal integrity.
Waterproof to IP68 when fully mated, ensuring durability in harsh environments.
Threaded coupling mechanism delivers secure, vibration-resistant connections.
Compatible with a wide range of cable types for flexible system design.
Panel-mount receptacles are available with multiple termination options to suit diverse applications.
Applications
Distributed Antenna Systems (DAS)
Wireless Infrastructure
Small Cells
Mobile Networks
network analyzers, spectrum analyzers, and oscilloscopes
RF/microwave test benches and calibration equipment
missile guidance, drones, and satellite payload systems
Specification
Cable Type | 1/2" Flexible |
| Body Plating | Tri-Metal |
| Body Material | Brass |
| Contact Plating | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Cable Termination | Clamp |
| Coupling Mechanism | Thread |
HS Code | 8636909000 |
Frequency (Max GHz) | 6 |
Gender | Male |
Impedance (Ohms) | 50 |
Size Category | Large |
Orientation | Right angle |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | IEC 61169-54 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What’s the lifespan of an RF connector?
Connector durability is rated in mating cycles: General-purpose connectors (BNC, SMA): 500 cycles. Precision connectors (2.92 mm, 2.4 mm): 500 cycles or less. Rugged telecom connectors (N, 7/16 DIN): 500 cycles.
Can RF connectors be reused?
Yes, but performance degrades with wear. Precision connectors (used in test equipment) should be handled carefully—damage to threads or pins increases VSWR and insertion loss.
What’s the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
Are RF connectors interchangeable between brands?
Yes, if they follow the same standard (e.g., SMA-to-SMA). However, tolerances, plating, and dielectric quality vary — mixing low-quality and precision connectors can damage equipment.
