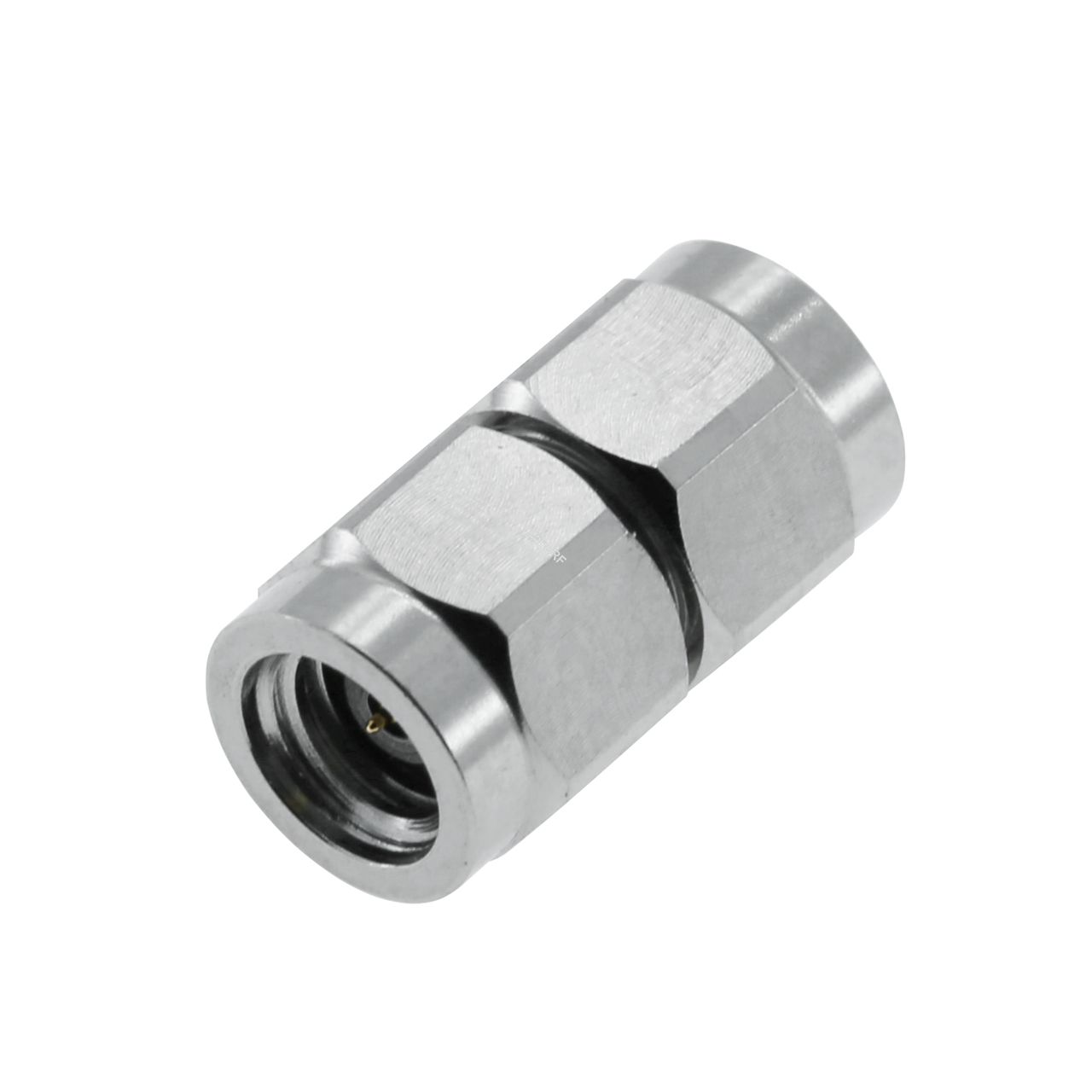

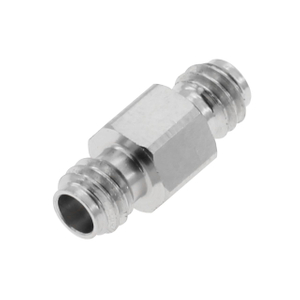

Impedance, a crucial aspect of RF connectors, plays a pivotal role in ensuring effective signal transmission across a wide range of frequencies. In the realm of high-frequency connectors, the 1.0 mm coaxial connector stands out with its impressive specifications. With an impedance of 50 Ω and a maximum operating frequency of 110.00 GHz, this connector type has garnered attention for its exceptional performance. This article delves into the details of the 1.0 mm coaxial connector, its historical development, coupling mechanism, interface standards, applications, and variations.
Impedance and Frequency Range
The 1.0 mm coaxial connector boasts an impedance of 50 Ω, making it well-suited for RF applications where consistent signal transmission is essential. What sets this connector apart is its remarkable capability to handle high-frequency signals, with a maximum operating frequency of 110.00 GHz. This attribute makes it a valuable component in scenarios requiring ultra-high frequency transmission.
Coupling Mechanism and Interface Standards
At the heart of the 1.0 mm coaxial connector's design is its screw-on coupling mechanism. This mechanism ensures a secure connection, minimizing signal loss and maintaining impedance integrity. The connector's adherence to the IEEE 287-2007 interface standards further solidifies its reliability. These standards dictate the connector's specifications, ensuring compatibility and consistent performance across various applications.
Evolution and Historical Development
The genesis of the 1.0 mm RF connectorcan be traced back to around 1989 when Hewlett-Packard (now Agilent Technologies) spearheaded its development. The aim was to create an ultra-high-frequency coaxial connector that could operate in a mode-free manner up to an astounding 110 GHz. As a testament to its innovative potential, the design was adopted as an open standard under the IEEE 287 Precision Connector Standards Committee. The connector's diminutive size, characterized by an internal diameter of merely 1.0 mm, underscores its compact yet powerful design.
What is notable is that the developers chose not to protect the design through patent applications. Instead, Agilent envisioned open access, allowing manufacturers to create their versions of the 1.0 mm connector. This decision fostered collaboration and innovation within the industry.
Applications and Usage
While the 1.0 mm RF connector's capabilities are undeniably impressive, its sensitivity and precision deem it best suited for specific applications. Unlike connectors that find widespread use in various fields, this connector type thrives in environments demanding meticulous accuracy. Its primary applications are often found in metrology settings, where laboratory calibration and test systems benefit from its dependable performance. Moreover, the connector's presence is notable in semiconductor probe stations, particularly in the evaluation of mm-Wave RF MMICs (Monolithic Microwave Integrated Circuits).
Variations and Standards

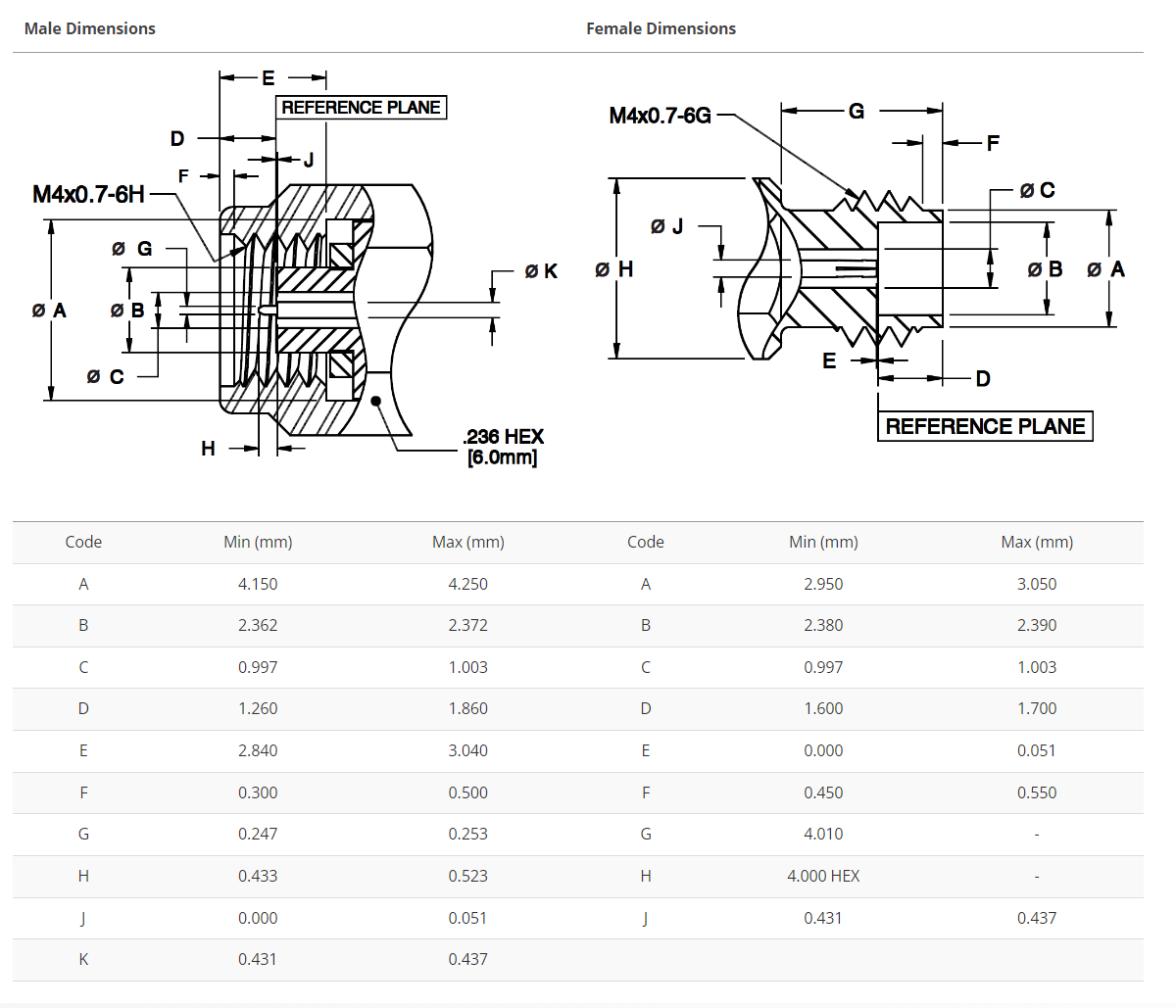

Within the framework of IEEE 287-2007, the 1.0 mm coaxial connector is defined by two subtypes: Laboratory Precision Connectors (LPC) and General Precision Connectors (GPC). The distinction between these subtypes lies in permitted tolerances, encompassing factors like clearance, flatness, and pin depth. Both LPC and GPC connectors share an air dielectric interface, with the contact supported by a short dielectric bead. It's worth noting that the IEEE 287 standard delineates these specific variations, emphasizing standardization and compatibility. The IEC international standard is EN 61169-31-2000,IEC 61169-31-1999.
Conclusion
The 1.0 mm coaxial connector represents a pinnacle of engineering achievement in the realm of high-frequency connectors. With an impedance of 50 Ω and a maximum operating frequency of 110.00 GHz, this connector defies its diminutive size to deliver remarkable signal transmission capabilities. Its screw-on coupling mechanism ensures secure connections, while adherence to IEEE 287-2007 standards guarantees consistent performance. Although its applications are specialized, it shines in metrology, laboratory calibration, and semiconductor probe stations. As the industry continues to innovate, the 1.0 mm coaxial connector remains an emblem of precision and high-frequency prowess.
