Product Overview
Our 1.0 mm Jack To Jack Adapter is a high-precision in-series RF adapter engineered for ultra-high frequency signal transmission with minimal insertion loss and interference. Designed with a 50 OHM straight female to female configuration, this stainless steel RF adapter (model: 70-39-0003) delivers consistent performance across DC – 110 GHz, making it the ideal solution for precision millimeter wave (mmWave) testing, calibration, and high-speed RF system integration. Manufactured to strict industry standards, our 110GHz precision RF adapter features a threaded coupling mechanism for secure, vibration-resistant connections, ensuring stable signal integrity even in demanding operating environments. This adapter enables seamless connection between two identical 1.0 mm RF interfaces, eliminating interface mismatch issues and preserving signal quality for critical high-frequency applications.

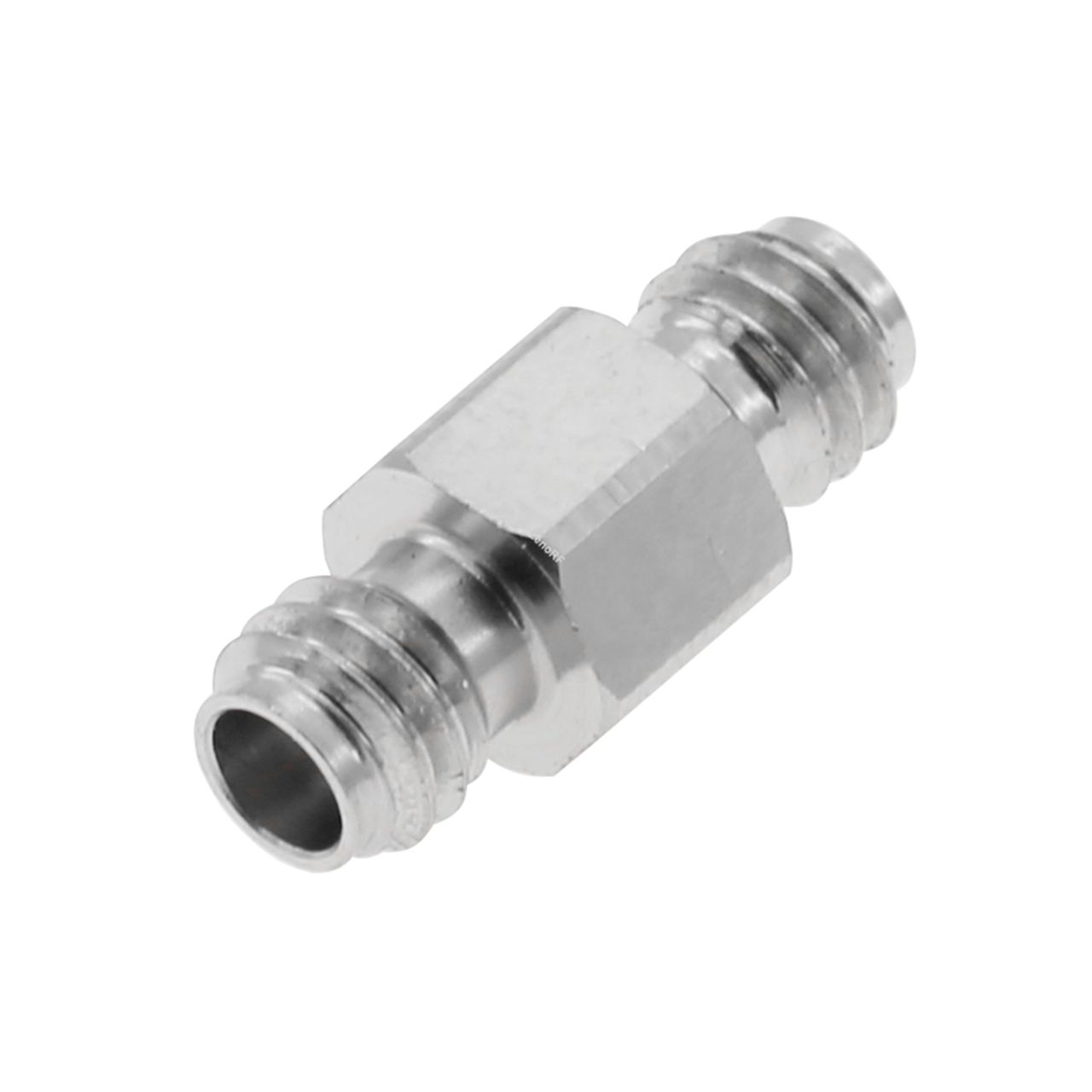

![1.0 mm Jack To Jack Adapter 70-39-0003]( "1.0 mm Jack To Jack Adapter 70-39-0003")
Key Technical Specifications & Performance
Parameter | Specification |
Connector Type | 1.0 mm Connector |
Adapter Type | In Series |
Gender Configuration | Female to Female (Jack to Jack) |
Orientation | Straight |
Impedance | 50 OHMS |
Maximum Frequency | 110 GHz |
Body Material | Stainless Steel |
Body Finish | Passivated |
Contact Material | Beryllium Copper |
Contact Finish | Gold |
Coupling Mechanism | Threaded |
Operating Temperature Range | -65 ~ 165 °C |
Mating Cycle Durability | 500 Cycles |
HS Code | 8536909000 |
Industry Applications
Our 50 OHM 1.0mm RF Adapter is tailored for business clients across high-reliability industries, with core use cases including:
Test & Measurement Systems
Ideal for connecting spectrum analyzers, signal generators, and lab test equipment to devices under test (DUTs), this DC-110GHz stainless steel RF adapter supports precision calibration and high-frequency signal testing in R&D and manufacturing labs.
mmWave Communication Systems
Widely used in the integration of 5G/6G infrastructure, Wi-Fi, LTE, GPS, and IoT modules, enabling seamless signal transmission between core RF components.
Medical Imaging Equipment
Compatible with MRI, CT, and ultrasound imaging devices, where stable, low-loss RF signal transmission is critical for accurate diagnostic performance.
Transportation Communication Systems
Suitable for railway communications and signaling systems, as well as in-vehicle infotainment and connectivity systems, with a rugged stainless steel body that withstands harsh operating conditions.
Why Choose LenoRF
As a leading professional RF connector and adapter manufacturer, LenoRF delivers unmatched value for global business clients:
Precision Engineering: Our female to female straight RF adapter is manufactured with tight tolerance controls, ensuring consistent VSWR performance and minimal insertion loss across the full 110 GHz frequency range.
Premium Material Selection: We use high-grade stainless steel for the adapter body, beryllium copper for contacts, and gold plating for optimal conductivity and corrosion resistance, extending service life in demanding environments.
Flexible MOQ Terms: We offer a low minimum order quantity of 100 PCS for this RF adapter, accommodating both small-batch R&D needs and large-scale mass production orders.
Strict Quality Control: Every adapter undergoes comprehensive performance testing before shipment, ensuring compliance with international RF industry standards and long-term reliability.
FAQ
What is the maximum operating frequency of this 1.0 mm jack to jack adapter?
This adapter supports a wide frequency range from DC to 110 GHz, making it suitable for ultra-high frequency mmWave and precision test applications.
What is the durability rating of this RF adapter?
It has a rated durability of 500 mating cycles, consistent with industry standards for high-precision RF connectors.
Can this RF adapter be reused?
Yes, the adapter can be reused, though performance may degrade with wear. We recommend careful handling of the threaded coupling and contact surfaces to preserve signal integrity, especially in precision lab applications.
Get Your Custom Quote Today
Whether you need standard 1.0 mm Jack To Jack Adapters for mass production, or custom RF adapter solutions tailored to your specific application requirements, LenoRF is here to support your business. Our professional engineering and sales team will provide you with a competitive, customized quote within 24 hours, along with full technical support to ensure your RF system performs at its best. Contact us today to discuss your project needs!
