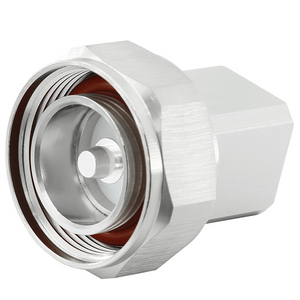

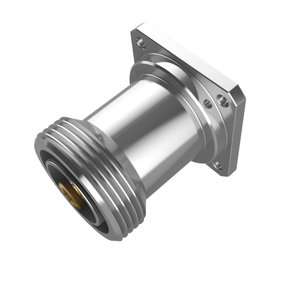

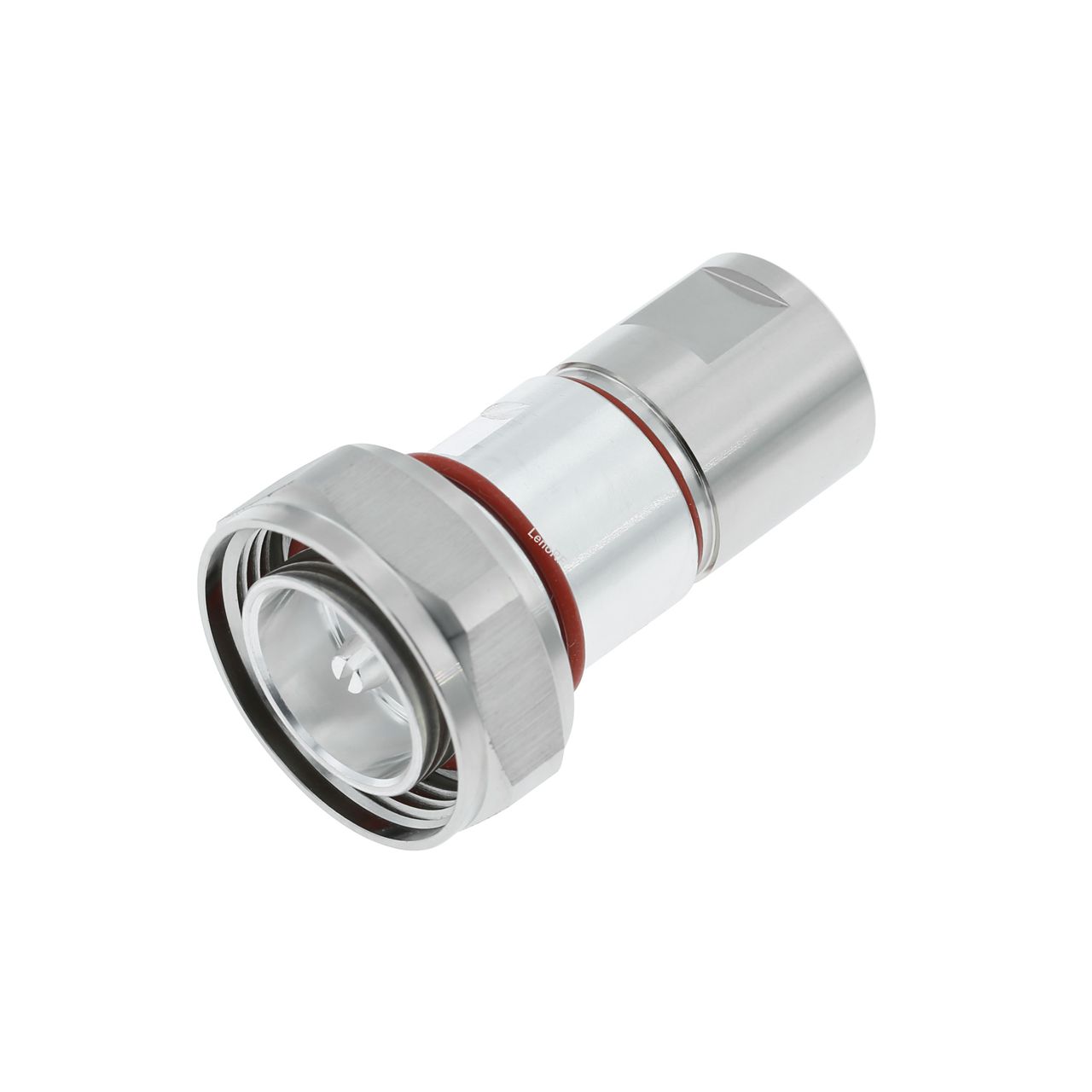

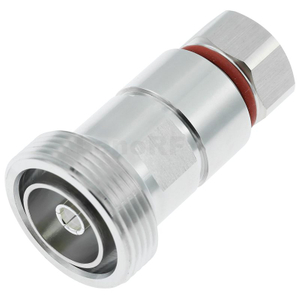

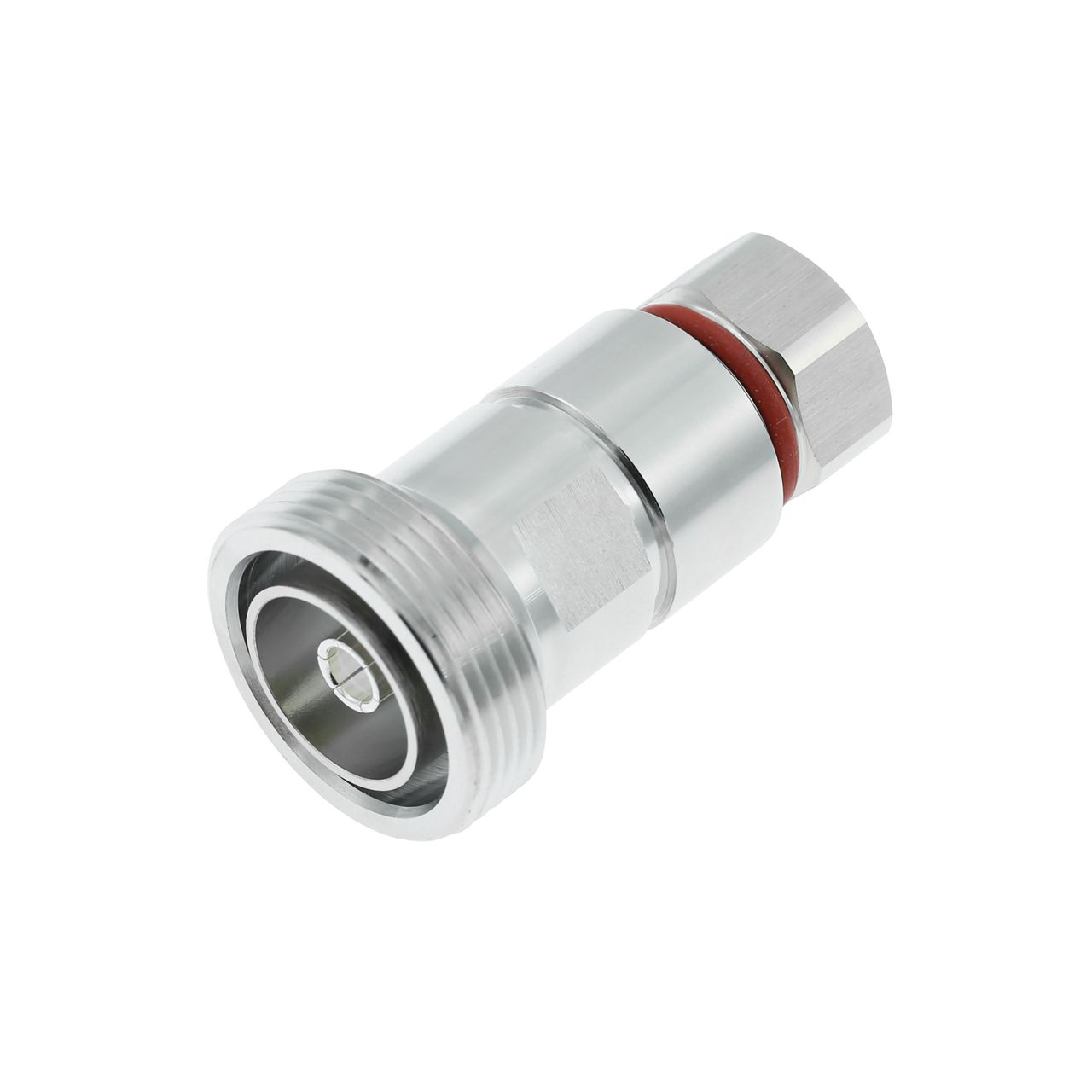

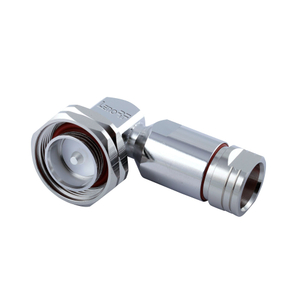

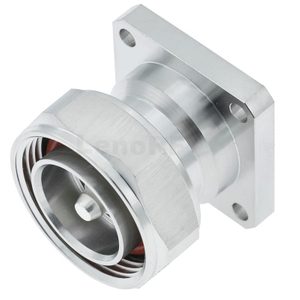

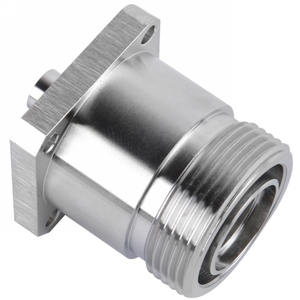

Impedance matching is a critical concept in the realm of radio frequency (RF) connectors, ensuring efficient signal transmission between components. The 7/16 DIN connector, characterized by its impedance of 50 Ω, a maximum operating frequency of 7.50 GHz, and a screw-on coupling mechanism, holds a significant place in the RF connector landscape. This connector's interface standards include DIN 47223, DIN EN 122190, and IEC 61169-4, making it a widely accepted and standardized choice. The 7/16 DIN connector's historical development, applications, and significance are explored in this article.
Historical Development
The origin of the 7/16 DIN connector can be traced back to the 1960s when SPINNER GmbH, a German company, pioneered its development. This period marked the emergence of standardized RF connectors. While initially conceived as part of this trend, the 7/16 DIN connector gained renewed attention in the 1990s. This resurgence was fueled by its exceptional suitability for high-performance military systems and cellular base station installations. Particularly, it found a niche in high-power UMTS systems, contributing to its ongoing relevance.
Connector Specifications
The nomenclature "7/16" derives from the nominal dimensions associated with the connector. The internal diameter of the outer conductor is 16 mm, while the diameter of the center conductor measures 7 mm. The ratio between these dimensions is chosen deliberately to yield a nominal impedance of 50 ohms. This impedance matching is crucial for optimal signal transfer and reduced signal loss.
One of the remarkable features of the 7/16 DIN connector is its frequency range, covering from DC (Direct Current) to 7.5 GHz. This broad range enables its utilization in various applications requiring high-frequency transmission, such as broadcast and cellular base station antennas. The connector's robust design contributes to its exceptional electrical performance. It boasts low insertion and return loss, ensuring efficient signal transmission. Additionally, the connector's construction facilitates good connection repeatability, a vital aspect for maintaining consistent performance in various applications.
The 7/16 DIN connector is also notable for its high power handling capability. This characteristic makes it suitable for applications that demand the transmission of high-power signals, such as cellular base station antennas and high-power UMTS systems. This connector's design underwent standardization through the DIN 47223 and IEC 61169-4 protocols, further cementing its credibility and widespread adoption.
Applications and Advancements
Throughout its history, the 7/16 DIN connector has found substantial application across various domains. In the realm of broadcast applications, its high power handling capacity has positioned it as a preferred choice. Moreover, it has become the connector of choice for cellular base station antennas, playing a pivotal role in enhancing signal transmission in telecommunications networks.
However, recent advancements in connector technology have introduced the 4.3-10 connector, which has begun to challenge the dominance of the 7/16 DIN connector. The 4.3-10 connector offers several advantages, including weight and size savings, making it an appealing option in situations where space and weight constraints are critical. Furthermore, 4.3-10 connectors excel in terms of ingress protection ratings and passive intermodulation (PIM) performance, which refers to the generation of unwanted signals caused by non-linearities in the connector. These attributes have contributed to the increasing popularity of the 4.3-10 connector, particularly in scenarios where stringent performance requirements are essential.
Interface Drawing
Conclusion
The 7/16 DIN RF connector's journey from its inception in the 1960s to its present-day relevance exemplifies its enduring importance in RF transmission. With a nominal impedance of 50 ohms, a frequency range spanning from DC to 7.5 GHz, and adherence to standardized protocols, it remains a steadfast choice for applications demanding high power handling and efficient signal transmission. However, the rise of the 4.3-10 connector underscores the dynamic nature of connector technology, as advancements continue to shape the landscape of RF connectivity.
