Overview
The 7/16 DIN connector is a threaded RF connector widely used in high-power,IP67 waterproof protection and low-PIM (Passive Intermodulation) applications. Its name comes from the dimensions of the inner and outer contacts: 7 mm (outer conductor) and 16 mm (inner conductor). Designed originally in Europe, it has become an industry standard for 5G, LTE, Wi-Fi, and satellite communication systems,Used in towers, repeaters, routers, and access points for reliable RF signal transfer,Base stations, antennas, and feeder cables and other demanding RF installations.
Features
| High Power Handling | Supports up to several kilowatts of power, thanks to its robust design and low contact resistance. |
| Low PIM Performance | Typically -150 dBc or better, making it ideal for cellular base stations and DAS (Distributed Antenna Systems). |
| Rugged Mechanical Design | Large, threaded coupling ensures secure, vibration-resistant connections. |
| Weatherproof Options | Often available with gaskets or weather seals for outdoor use. |
| Durability | Can withstand repeated mating cycles (>500) |
Applications
Cellular base stations (4G, 5G)
Broadcasting transmitters (FM, TV, satellite uplink)
Distributed Antenna Systems (DAS)
Military and aerospace RF systems
High-power RF test setups
5G, LTE, Wi-Fi, and satellite communication systems
Used in towers, repeaters, routers, and access points for reliable RF signal transfer
Base stations, antennas, and feeder cables

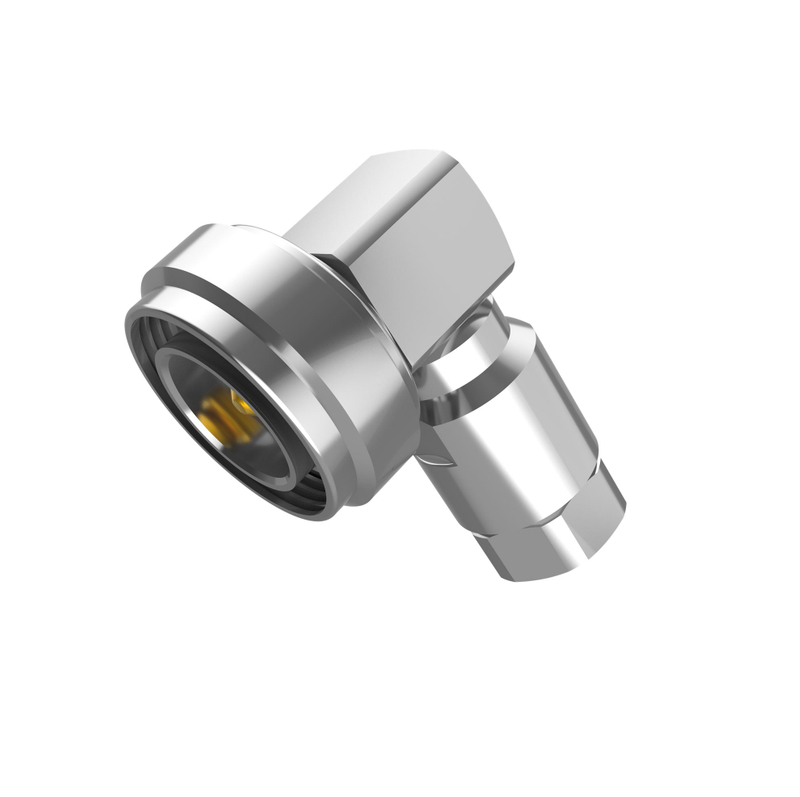

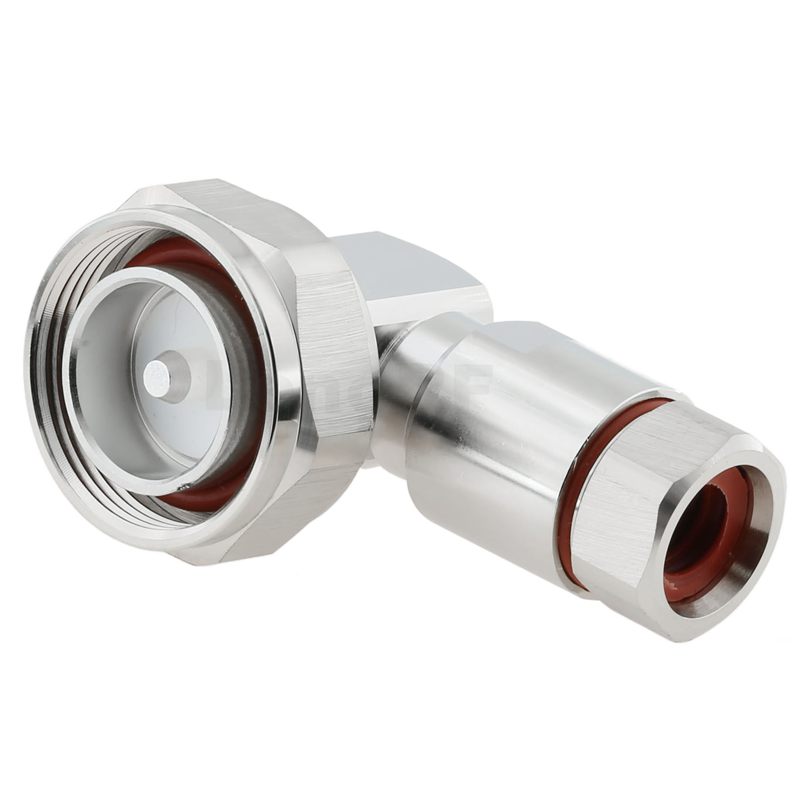

Specification
Body Plating | Tri-Metal |
Body Material | Brass |
Cable Type | 1/2" Flexible |
Contact Plating | Silver |
Contact Material | Phosphor bronze/Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 6 |
Gender | Male |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Right Angle |
Size Category | Subminiature |
Temperature Range | -65 to 165 C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
What’s the lifespan of an RF connector?
Connector durability is rated in mating cycles: General-purpose connectors (BNC, SMA): 500 cycles. Precision connectors (2.92 mm, 2.4 mm): 500 cycles or less. Rugged telecom connectors (N, 7/16 DIN): 500 cycles.
Can RF connectors be reused?
Yes, but performance degrades with wear. Precision connectors (used in test equipment) should be handled carefully—damage to threads or pins increases VSWR and insertion loss.
What’s the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
Are RF connectors interchangeable between brands?
Yes, if they follow the same standard (e.g., SMA-to-SMA). However, tolerances, plating, and dielectric quality vary — mixing low-quality and precision connectors can damage equipment.
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
