7/16 Connector Plug Straight Flange For Microstrip
You are here: Home » Products » RF Connector » 7/16 RF Connector » 7/16 Connector Plug Straight Flange For Microstrip
Share to:

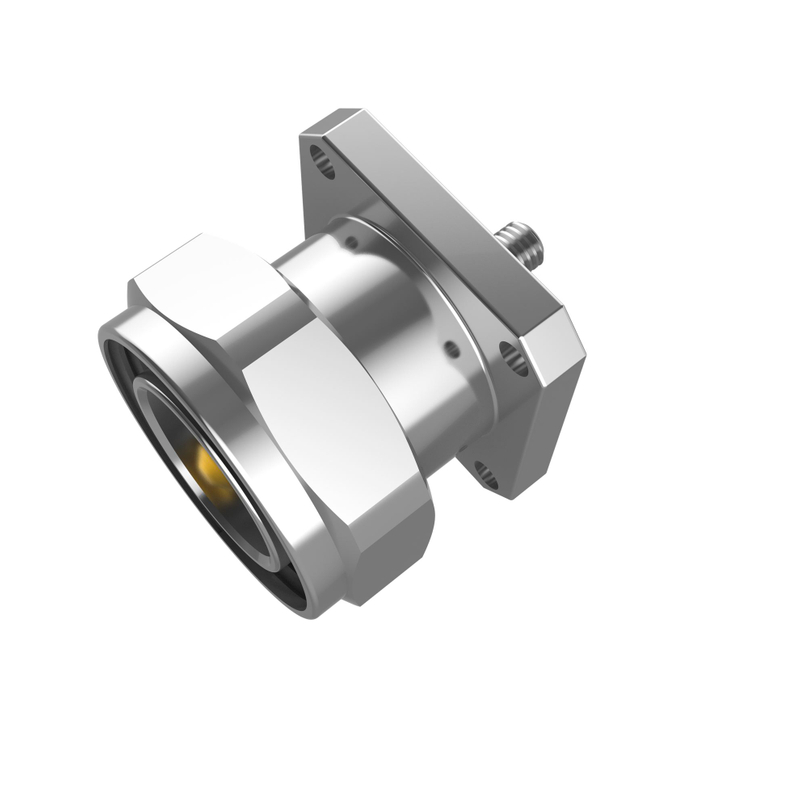

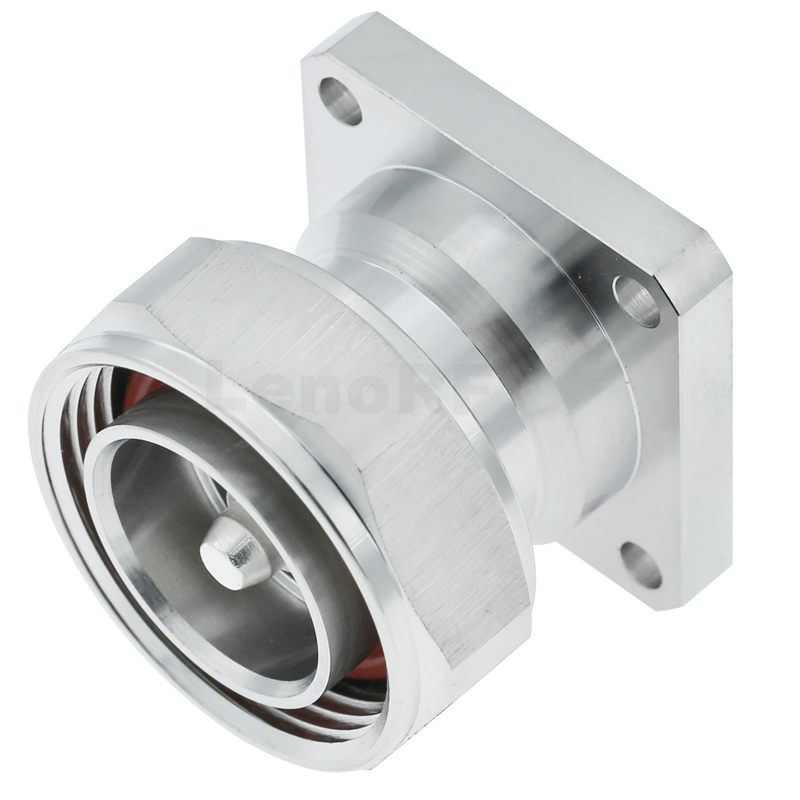

7/16 Connector Plug Straight Flange For Microstrip

7/16 connectors are mechanically extremely strong screw-lock coaxial connections. They feature a 50 ohm characteristic impedance and are appropriate for applications up to 7.5 GHz with excellent electrical characteristics. Common usage include radio transmitters that broadcast received signals with medium to high strength and low PIM, such as in mobile phone base stations.
  • 90-5161-045-01
  • Male
  • Straight
  • 4 Hole Flange
  • Crimping
  • LMR400
  • 90-5161-045-01.pdf
  • 90-5161-045-01.stp
Availability:
Quantity:


Materials&Electroplating

Conduct

Brass/ Silver or Golden Plating

Insulator

PTFE

Body

Brass /Ternary or nickel or silver

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

50 OHMS

Frequency Range

0-3GHz

VSWR

≤1.30

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -65°C to +125°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B

Barometric Pressure (Altitude)

MIL-STD-202, Method 105, Condition C, 70k Ft.


FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The Quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.


6. MOQ

Regular connector: 500PCS.

Adaptor:100PCS

Military connector:100PCS


7. Materials

The popular material is brass,stainless steel for body, PTFE,PEEK for insulator,

brass, phosphor bronze, beryllium copper for contact, as well as aluminum,titanium alloy.


Application:

Telecommunication,Military,Broadband,Industry,Medical,5G,Radar,Aerospace.
