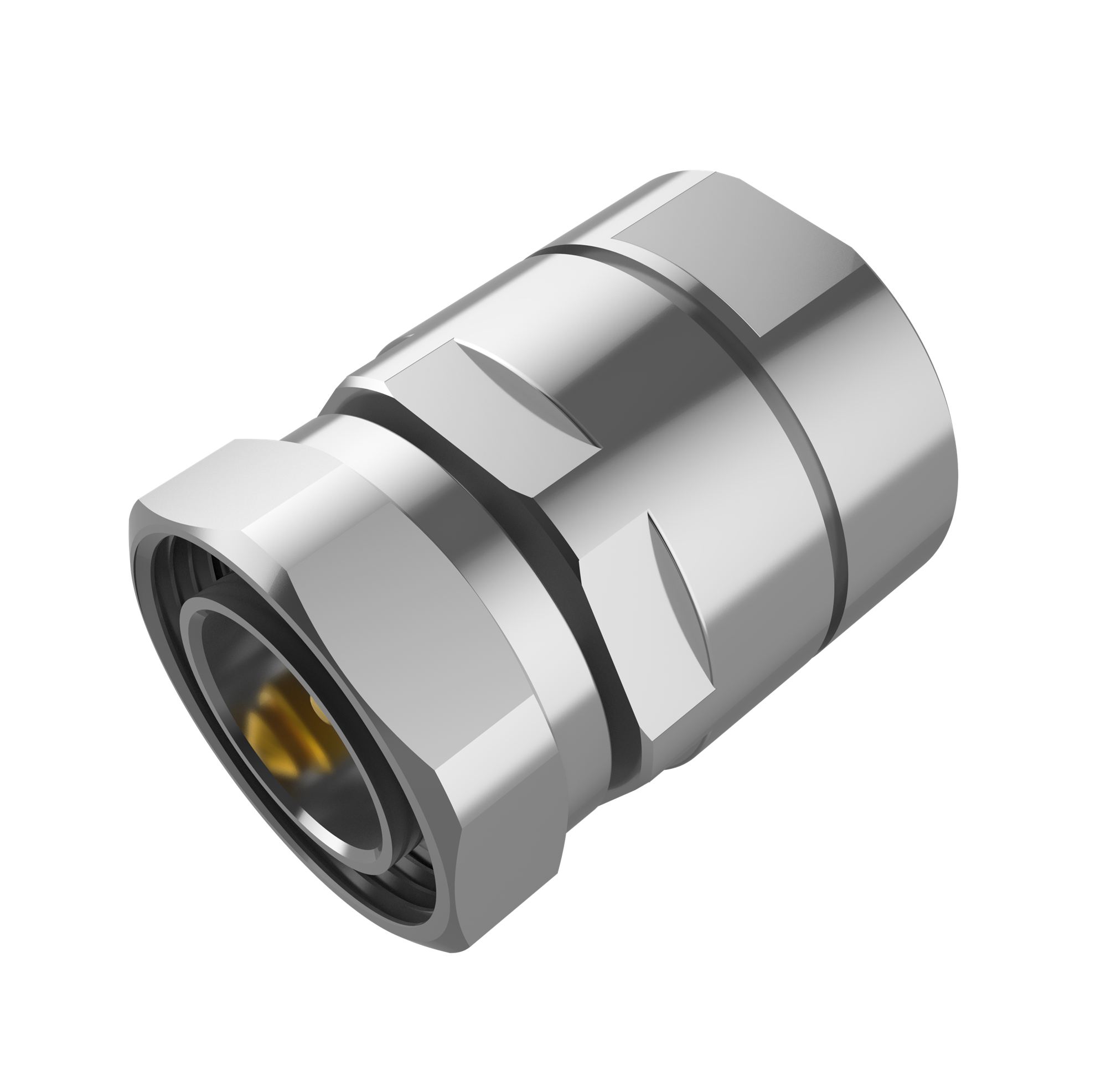

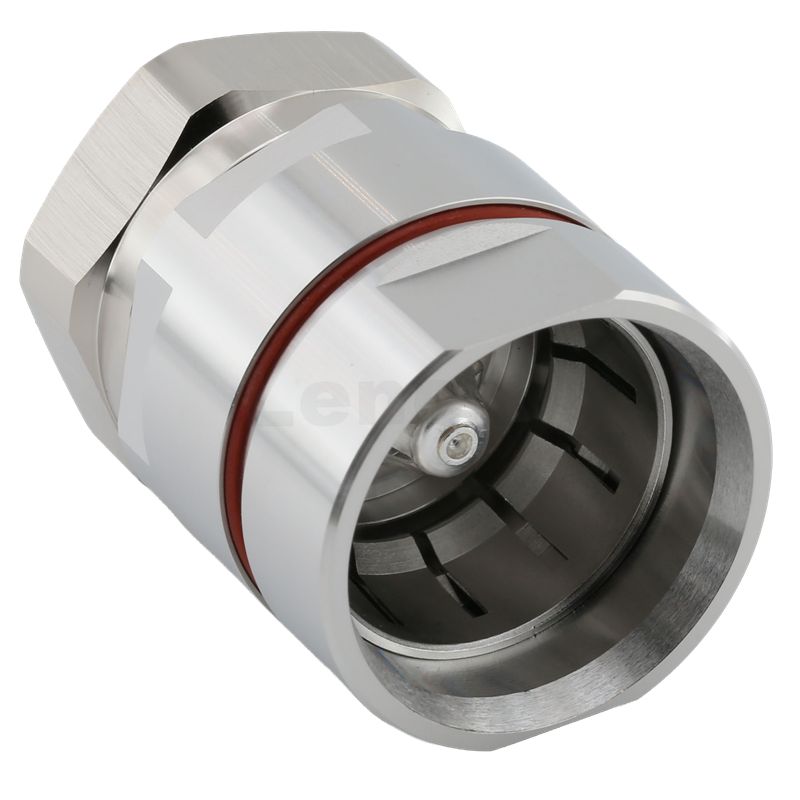

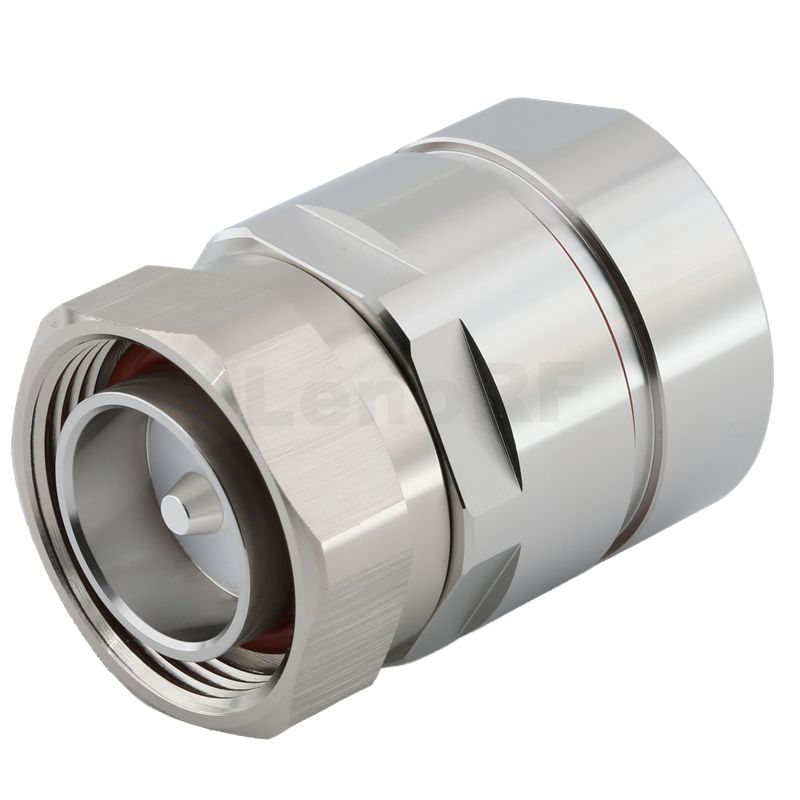

7/16 Connector Plug Clamp Straight For 7/8" Flexible Cable

7/16 connectors are screw-lock coaxial connectors that are mechanically highly tough. They have a characteristic impedance of 50 ohm and are suitable for applications up to 7.5 GHz with outstanding electrical qualities. Radio transmitters transmitting medium to high power and low PIM transmission of received signals, such as in mobile phone base stations, are common uses.
Male and female 7-16 DIN connectors with a 50 Ohm impedance are available. Straight and right angle 7-16 DIN connectors are offered, as well as 4 hole flange, bulkhead, 4 hole panel, and mountless types. Clamp/solder, crimp/solder, field replaceable, and solder connection techniques are available for these 7-16 DIN connectors.
  • 20-761

  • 90-5161-248-01

  • Male

  • Straight

  • Clamping

  • Crimping

  • 7/8" Flexible cable

  • 90-5161-248-01.pdf

  • 90-5161-248-01.stp

Availability:
Quantity:


Materials&Electroplating

Conduct

Brass/ Silver or Golden Plating

Insulator

PTFE

Body

Brass /Ternary or nickel or silver

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

50 OHMS

Frequency Range

0-3GHz

VSWR

≤1.30

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -65°C to +125°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B

Barometric Pressure (Altitude)

MIL-STD-202, Method 105, Condition C, 70k Ft.
