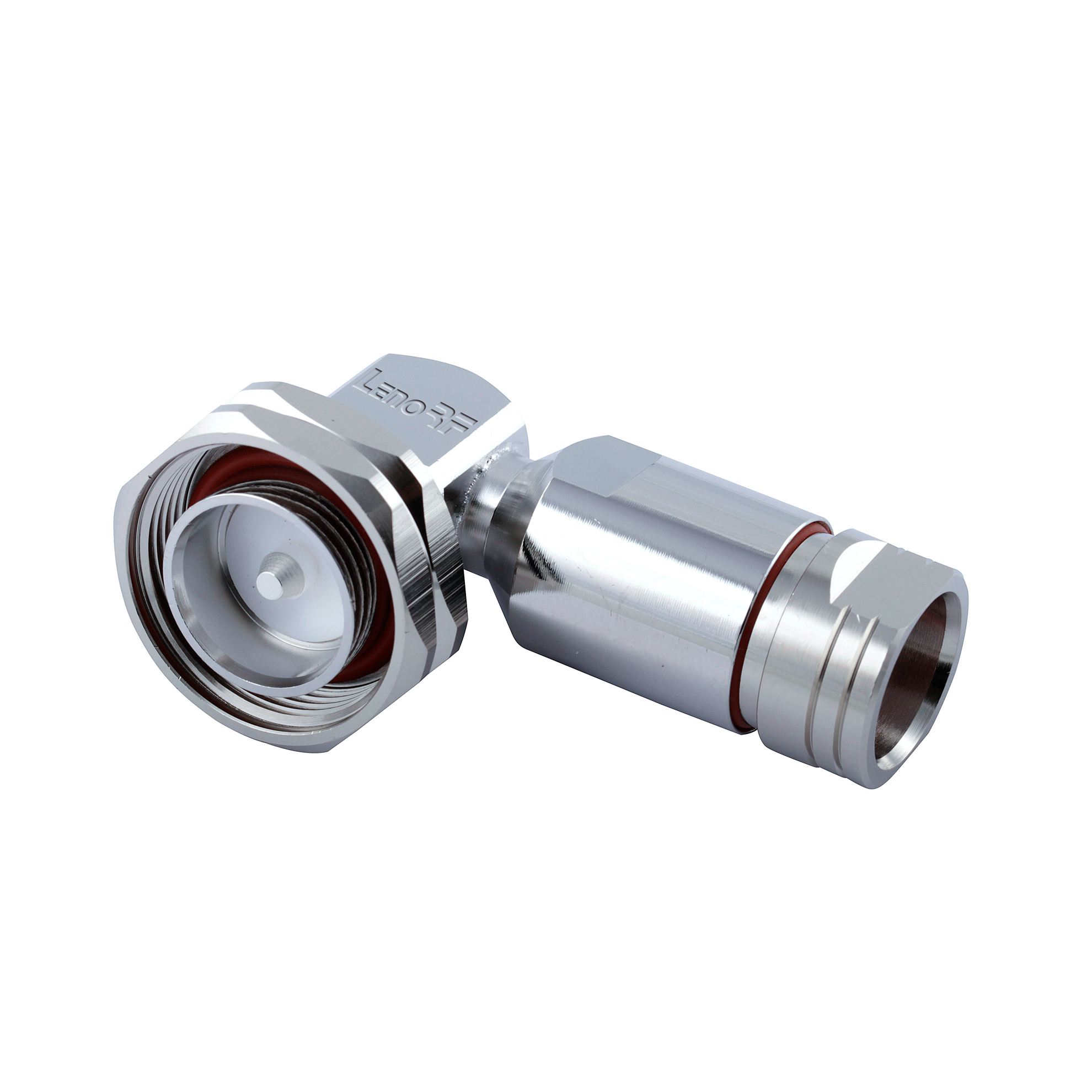

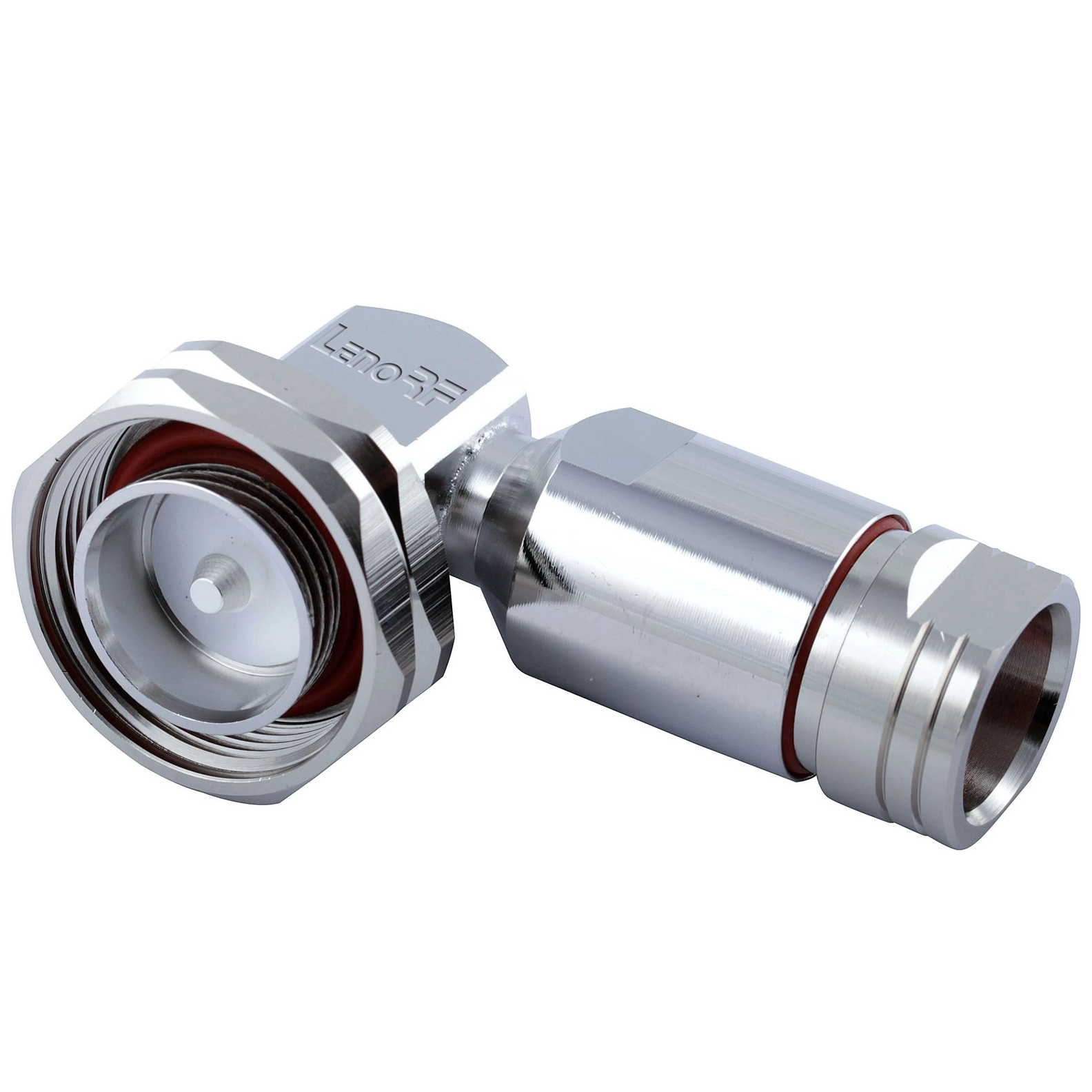

7/16 Connector Plug Clamp Right Angle For 1/2" Superflexible Cable

7/16 connectors are screw-lock coaxial connectors that are mechanically very durable. They feature a 50 ohm characteristic impedance and are suitable for applications up to 7.5 GHz. Radio transmitters transmitting medium to high power and low PIM transmission of received signals, as in mobile phone base stations, are common applications.
Male or female 7-16 DIN connectors with a 50 Ohm impedance are offered. 7-16 DIN connectors come in straight and right angle forms, as well as 4 hole flange, bulkhead, 4 hole panel, and mountless configurations. Clamp/solder, crimp/solder, field replaceable, and solder connection methods are all available with these 7-16 DIN connectors.

Model:
20-063
Part No:
90-5160-246-01
Gender:
Male
Orientation:
Right angle
Termination Body:
Clamping
Termination Contact:
Crimping
Cable Type:
1/2" Flexible cable
Data Sheet:
90-5160-246-01.pdf
3D Model:
90-5160-246-01.stp

Availability:

Quantity:



Inquire Add to Basket

Product Description

Materials&Electroplating
Conduct	Brass/ Silver or Golden Plating
Insulator	PTFE
Body	Brass /Ternary or nickel or silver
Other Parts	Brass/ Nickel Plating
Electric Performance
Impedance	50 OHMS
Frequency Range	0-3GHz
VSWR	≤1.30
Rating Voltage	500V
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -65°C to +125°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
