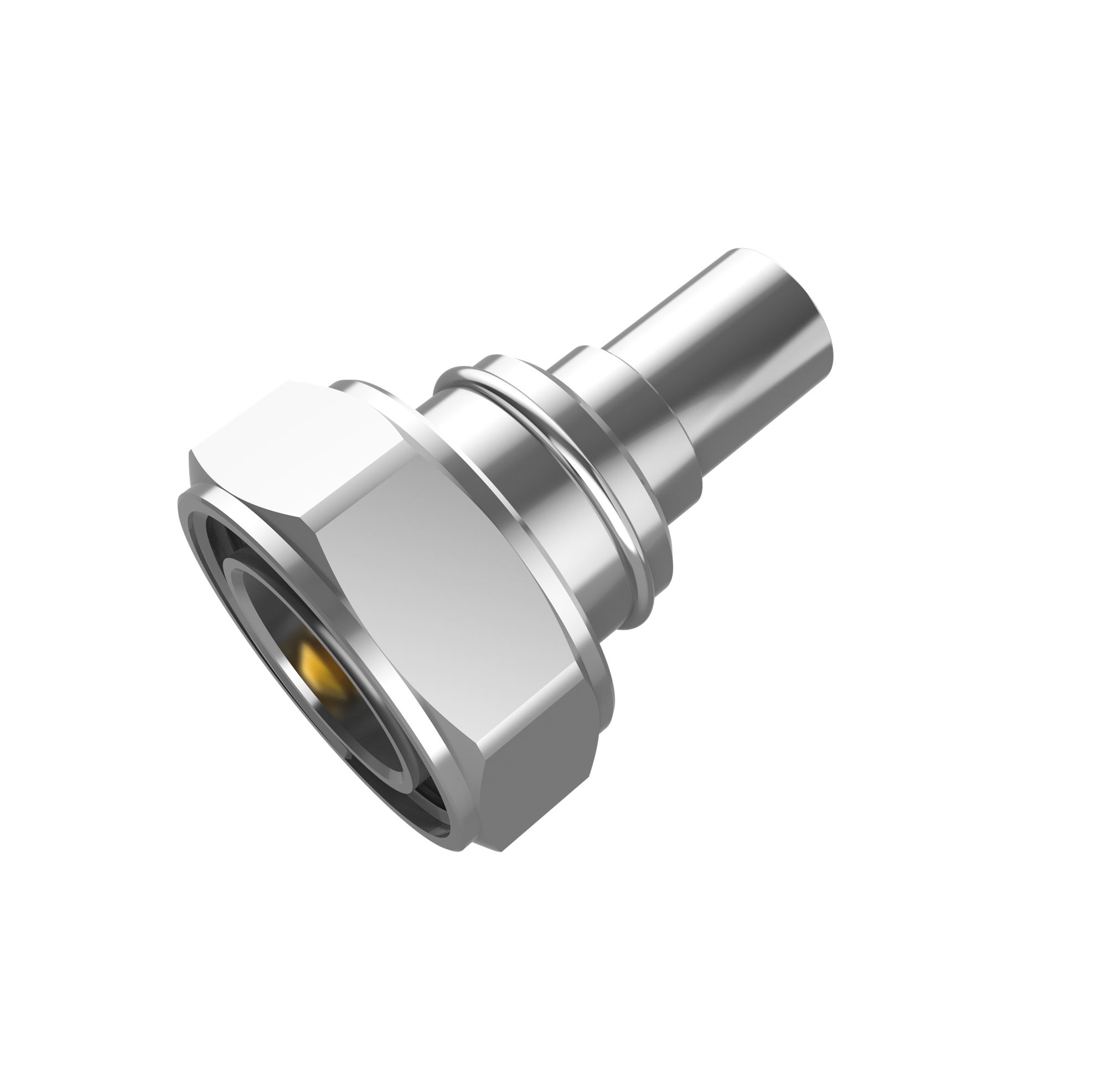

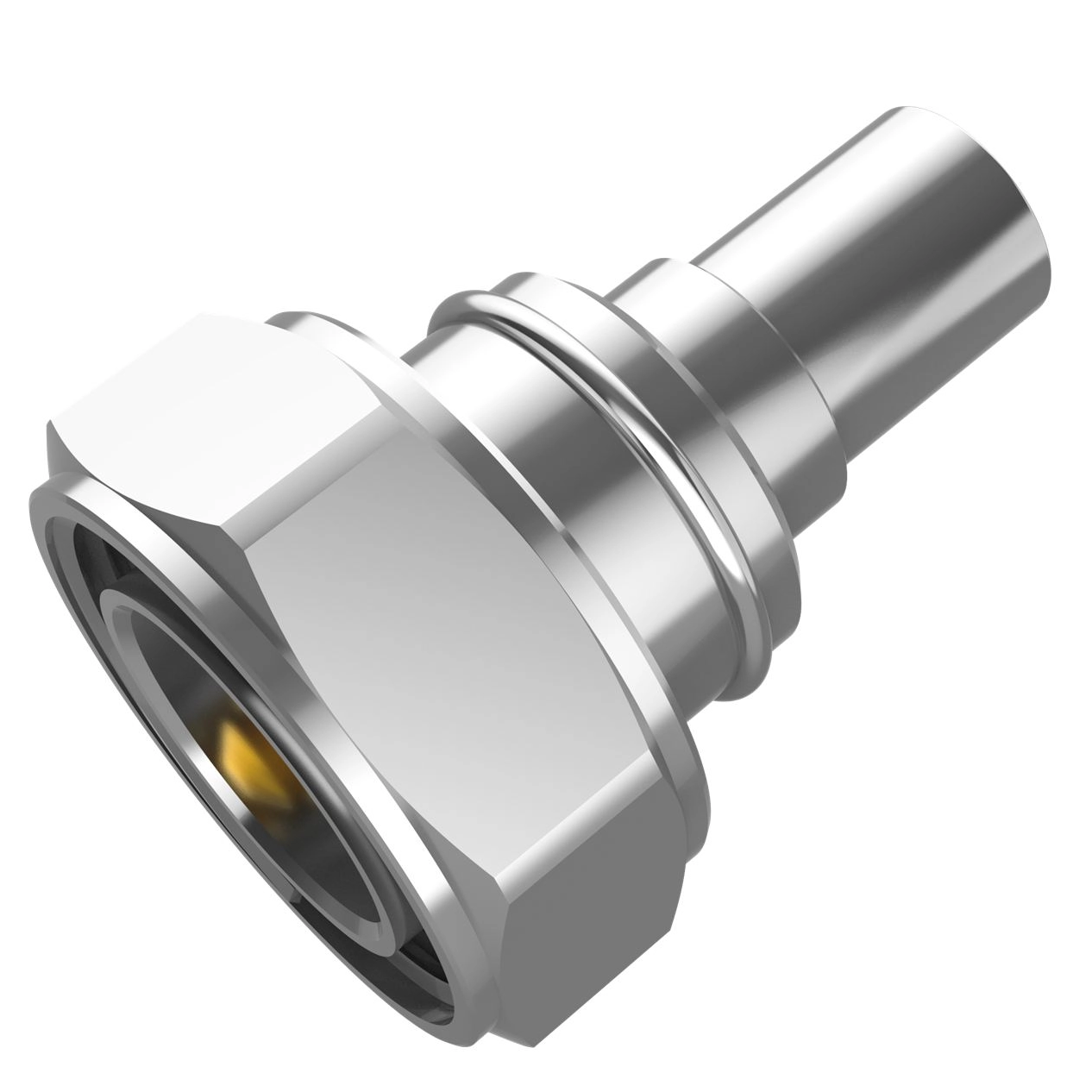

Specification of product:
| Part No | 90-5161-110-01 |
|---|
| Connector Series | DIN 7/16 |
|---|
| Connector Type | male |
|---|
| Contact Termination | Solder |
|---|
| Shield Termination | Clamp |
|---|
| Impedance | 50 Ohm |
|---|
| Mounting Type | Free Hanging |
|---|
| Cable Group | LMR400 |
|---|
| Fastening Type | Thread |
|---|
| Frequency - Max | DC-3GHz |
|---|
| Body Material | Brass |
|---|
| Body Finish | Nickel |
|---|
| Center Contact Material | Brass |
|---|
| Center Contact Finish | Gold |
|---|
| Dielectric Material | Polytetrafluorethylene (PTFE) |
|---|
| Voltage Rating | 375V |
|---|
| Working Temperature | -65°C ~ 165°C |
|---|
Application of product
Aerospace,Defense,Telecom,Broadcast, Industrial,Medical, Instrumentation.
Environmental Compliance
All product is RoHS and REACH complaint.
