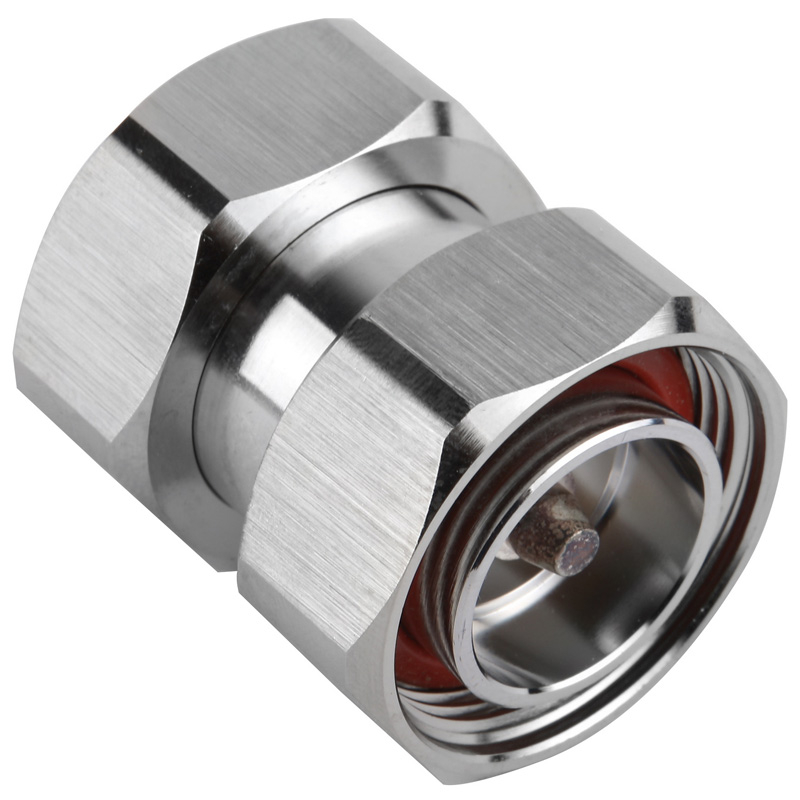

DIN 7/16 male to male adaptor

  • Male
  • Straight
  • Crimping
  • Crimping
  • DINM-M
Availability:
Quantity:
  • Part No DINM-M
    Description DIN 7/16  male to male adaptor
    Connector Series DIN Adaptor
    Connector Type male to male
    Contact Termination -
    Shield Termination -
    Impedance 50 Ohm
    Mounting Type Free Hanging
    Cable Group -
    Fastening Type thread
    Frequency - Max DC-18GHz
    Body Material Brass
    Body Finish Gold
    Center Contact Material Brass
    Center Contact Finish Gold
    Dielectric Material Polytetrafluorethylene (PTFE)
    Voltage Rating 375V
    Working Temperature -65°C ~ 165°C

    Part Name: DIN 7/16 type RF Connector
    Material: Brass, Teflon, beryllium brass.
    Plating: Golden, silver, nickel, triple-metal
    Cable: 1/2 superflux,7/8 ,1 1/4



    We also make RF Connectors, Cable Assemblies, 7/16 DIN RF Connectors,
    N RF Connectors, FAKRA SMB RF Connectors, IPX RF Connectors,
    MCX RF Connectors, MMCX RF Connectors, SMA RF Connectors,
    SSMA RF Connectors, SMB RF Connectors, SSMB RF Connectors,
    SMC RF Connectors, SMZ RF Connectors, TNC RF Connectors,
    1.0/2.3 RF CONNECTORS, 1.6/5.6 RF Connectors, BNC RF Connectors,
    F RF Connectors, FME RF Connectors, UHF RF Connectors, Mini-UHF RF Connectors, RF ADAPTER, Attenuator of RF Connectors, Terminator of RF Connectors, Surge protector, Microwave Device-Cavity Power Dividing Coupler, Microstrip Power Dividing, Combiner, Bridge.
