Overview

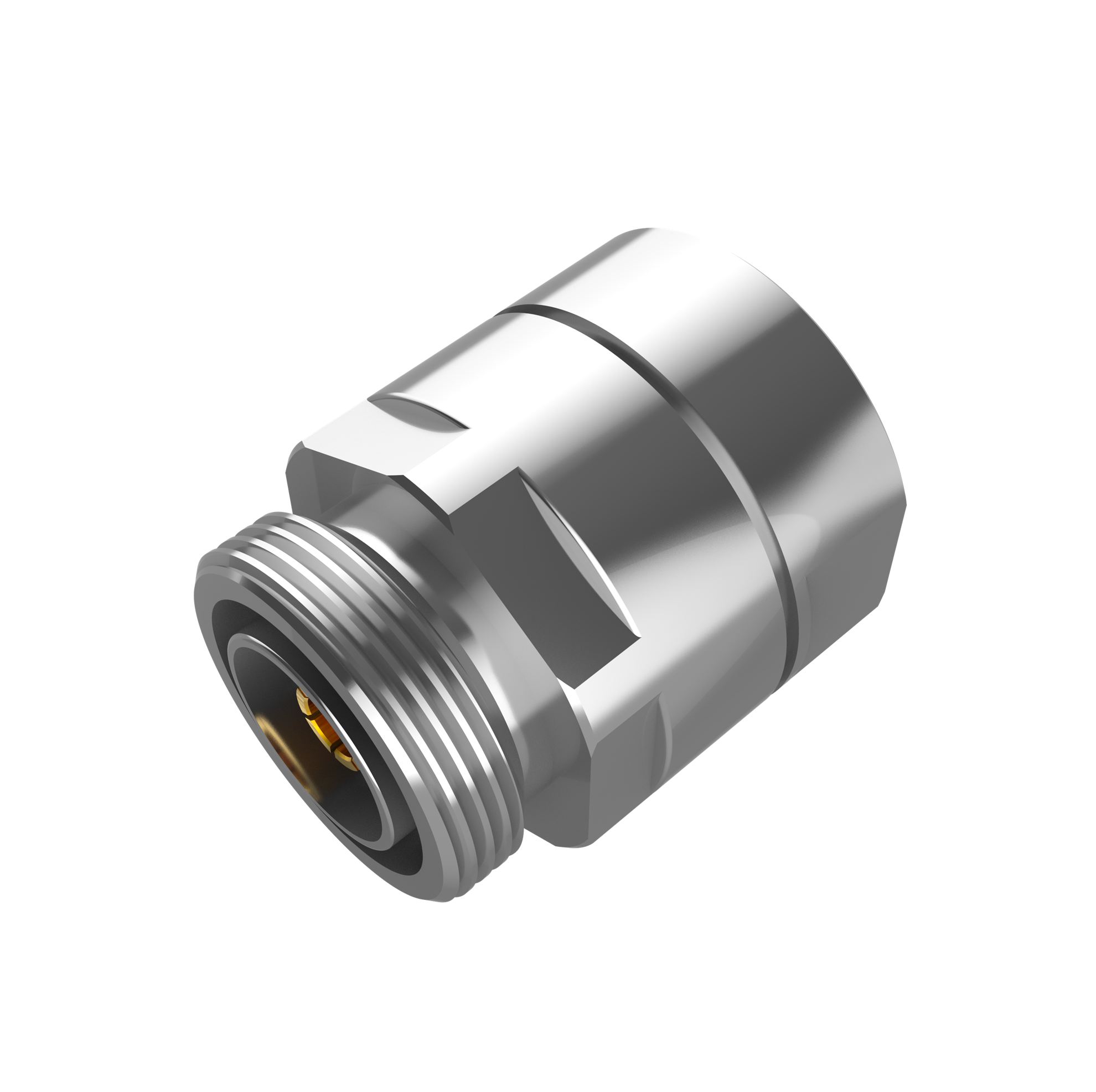

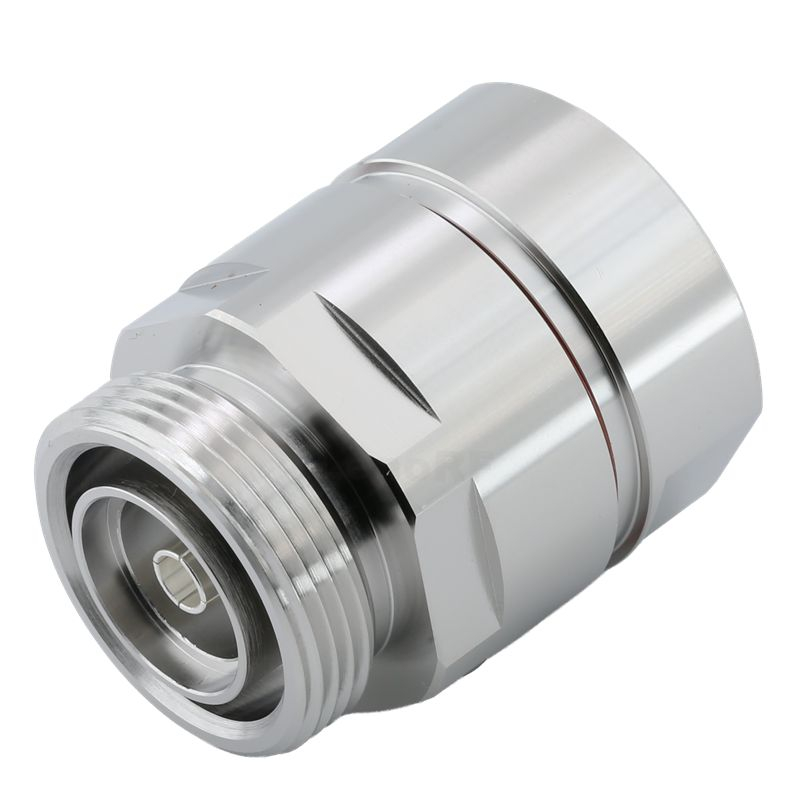

The 7/16 DIN connector is a threaded RF connector widely used in high-power,Low insertion loss design and low-PIM (Passive Intermodulation) applications. Its name comes from the dimensions of the inner and outer contacts: 7 mm (outer conductor) and 16 mm (inner conductor). Designed originally in Europe, it has become an industry standard for Patient monitoring systems with wireless connectivity,RF ablation, telemetry, and diagnostic tools,MRI, CT, and ultrasound imaging devices and other demanding RF installations.
Features
| High Power Handling | Supports up to several kilowatts of power, thanks to its robust design and low contact resistance. |
| Low PIM Performance | Typically -150 dBc or better, making it ideal for cellular base stations and DAS (Distributed Antenna Systems). |
| Rugged Mechanical Design | Large, threaded coupling ensures secure, vibration-resistant connections. |
| Weatherproof Options | Often available with gaskets or weather seals for outdoor use. |
| Durability | Can withstand repeated mating cycles (>500) |
Applications
Cellular base stations (4G, 5G)
Broadcasting transmitters (FM, TV, satellite uplink)
Distributed Antenna Systems (DAS)
Military and aerospace RF systems
High-power RF test setups
Patient monitoring systems with wireless connectivity
RF ablation, telemetry, and diagnostic tools
MRI, CT, and ultrasound imaging devices
Specification
Body Plating | Tri-Metal |
Body Material | Brass |
Cable Type | RG142 |
Contact Plating | Gold |
Contact Material | Phosphor bronze/Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 11 |
Gender | Male/Female |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Subminiature |
Temperature Range | -65 to 165 C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Are RF connectors weatherproof?
Some RF connectors are designed with gaskets and sealing (e.g., N-type, 4.3-10) for outdoor telecom, antennas, and harsh environments. Indoor lab connectors (e.g., SMA, BNC) are usually not weatherproof unless specified.
What’s the difference between male and female RF connectors?
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
What is VSWR, and why does it matter?
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
What are typical applications of RF connectors?
Telecom (5G, LTE, satellite) Aerospace & defense (radar, avionics, secure comms) Test & measurement (network/spectrum analyzers) Broadcast & video distribution Automotive radar and IoT devices Medical imaging & equipment
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
